Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2020-10-26 19:10:48.6 |
| Date & Time (Local) | 1399/8/5 22:40:48.6 |

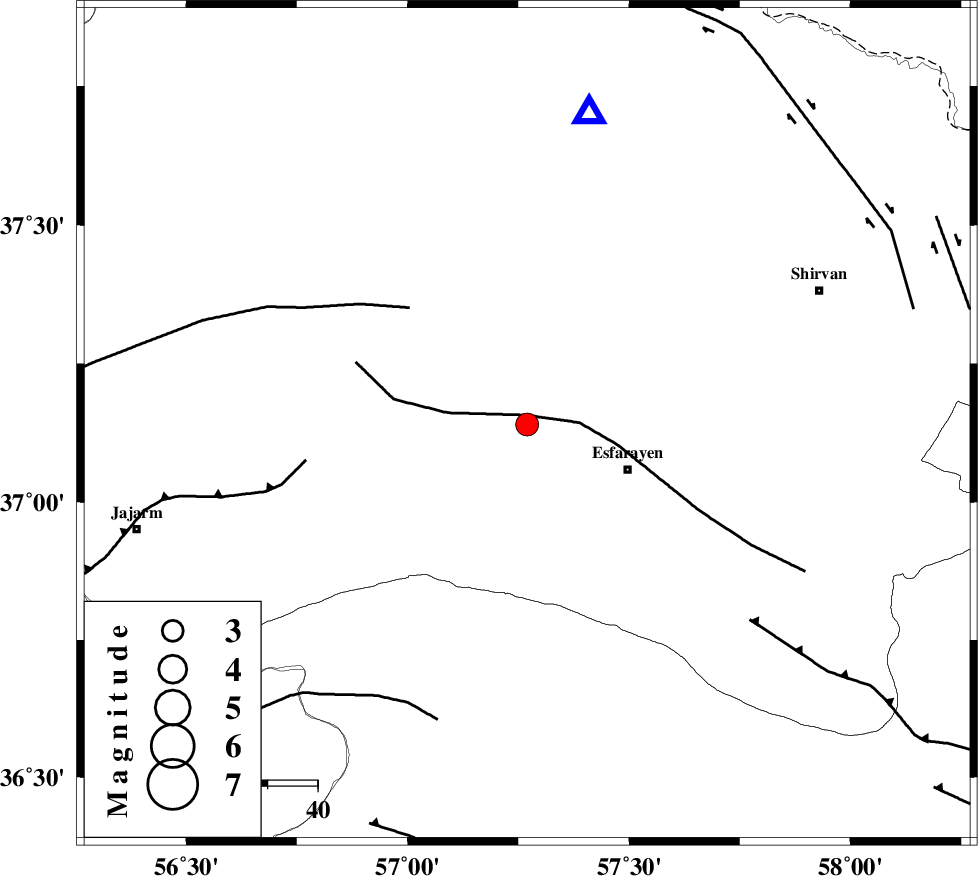

| Location | Lat:37.14 Lon: 57.27 |
| Region | Khorasan(north) Province, 22 km -West of Esfarayen |
Nearest Cities |
|
| 7 km North of Cheharborj, Khorasan(north) Province | |
| 10 km North of Zarqabad, Khorasan(north) Province | |
| 13 km North West of Eraj, Khorasan(north) Province | |
| 22 km North West of Esfarayen, Khorasan(north) Province | |
| 29 km North West of Abbasabad, Khorasan(north) Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 2 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 33 km | |
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 45 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 158682 | IIEES SC | SBZV | Z | 330 | 1 | 2020-10-26 19:11:17 | 2020-10-27 02:31:00 | n |
| 158683 | IIEES SC | MRVT | Z | 200 | 1 | 2020-10-26 19:11:30 | 2020-10-27 02:31:00 | n |
| 158684 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-10-26 19:11:57 | 2020-10-27 02:31:00 | n |
| 158685 | IIEES SC | ABGH | Z | 4.6 | 1 | 2020-10-26 19:12:25 | 2020-10-27 02:31:00 | n |
| 158686 | IIEES SC | KAGH | Z | 56 | 1 | 2020-10-26 19:12:02 | 2020-10-27 02:31:00 | n |
| 158687 | IIEES SC | GLO | Z | 380 | 1 | 2020-10-26 19:12:29 | 2020-10-27 02:31:00 | n |
| 158688 | IIEES SC | TABS | Z | 37 | 1 | 2020-10-26 19:12:56 | 2020-10-27 02:31:00 | n |
| 158689 | IIEES SC | SHRT | Z | 11 | 1 | 2020-10-26 19:13:26 | 2020-10-27 02:31:00 | n |
| 158690 | IIEES SC | BSRN | Z | 4.1 | 1 | 2020-10-26 19:13:59 | 2020-10-27 02:31:00 | n |
| 158691 | IIEES SC | BSRN | Z | 3.8 | 0.65 | 2020-10-26 19:12:23 | 2020-10-27 02:31:00 | n |
| 158692 | IIEES SC | GRMI | Z | 6.7 | 1 | 2020-10-26 19:14:09 | 2020-10-27 02:31:00 | n |
| 158693 | IIEES SC | GRMI | Z | 3.7 | 0.51 | 2020-10-26 19:12:41 | 2020-10-27 02:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | IP | I | 2020-10-26 19:10:59 | -0.9 | n | 4 | 66 | 12 | ||
| IIEES SC | SBZV | Z | IP | I | 2020-10-26 19:11:03 | -0.9 | y | 88 | 160 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-10-26 19:11:08 | -0.3 | y | 122 | 299 | |||
| IIEES SC | AKL | Z | IP | I | 2020-10-26 19:11:11 | -1.2 | y | 144 | 115 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-10-26 19:11:16 | 0 | y | 166 | 222 | |||
| IIEES SC | ABGH | Z | IP | I | 2020-10-26 19:11:25 | 0.7 | y | 222 | 258 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-10-26 19:11:27 | 0.3 | y | 244 | 95 | |||
| IIEES SC | GLO | Z | IP | I | 2020-10-26 19:11:36 | 0.6 | y | 311 | 257 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-10-26 19:11:40 | 0.7 | y | 344 | 127 | |||
| IIEES SC | TABS | Z | IP | I | 2020-10-26 19:11:46 | 1 | y | 389 | 182 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-10-26 19:11:55 | -0.7 | y | 478 | 145 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-10-26 19:12:10 | -0.8 | y | 600 | 163 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-10-26 19:12:40 | -0.8 | y | 845 | 283 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-10-26 19:12:39 | -15.8 | n | 4 | 956 | 230 | ||
