Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2020-11-21 05:42:18.6 |
| Date & Time (Local) | 1399/9/1 09:12:18.6 |

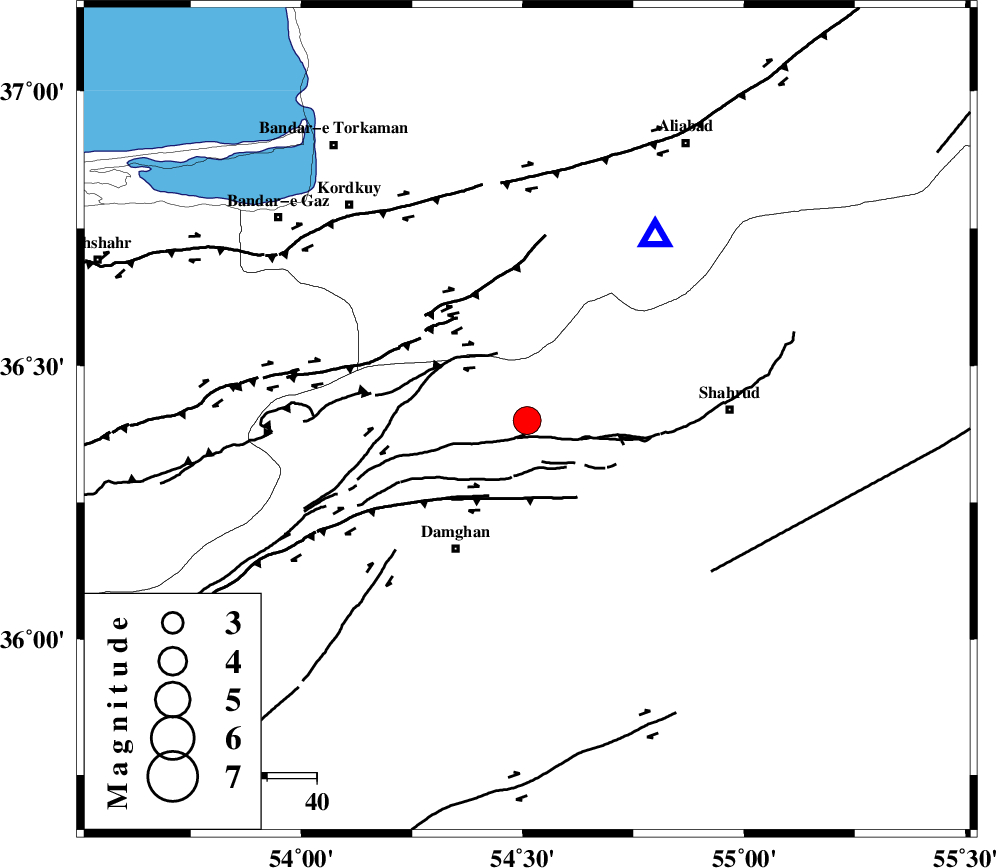

| Location | Lat:36.4 Lon: 54.51 |
| Region | Semnan Province, 30 km North-East of Damghan |
Nearest Cities |
|
| 15 km West of Majen, Semnan Province | |
| 18 km South of Cheharbagh, Golestan Province | |
| 21 km North of Mehmandust, Semnan Province | |
| 30 km North East of Damghan, Semnan Province | |
| 30 km South of Naharkhoran, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 11 km | |
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 15 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 20 km | |
| Number of Phases | 31 |
| RMS | 0.5 |
| Number of Stations | 26 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159372 | IIEES SC | ABGH | Z | 4.2 | 1 | 2020-11-21 05:42:31 | 2020-11-21 09:34:00 | n |
| 159373 | IIEES SC | GLO | Z | 14000 | 1 | 2020-11-21 05:42:47 | 2020-11-21 09:34:00 | n |
| 159374 | IIEES SC | ANJ | Z | 880 | 1 | 2020-11-21 05:42:54 | 2020-11-21 09:34:00 | n |
| 159375 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-11-21 05:43:00 | 2020-11-21 09:34:00 | n |
| 159376 | IIEES SC | MRVT | Z | 1100 | 1 | 2020-11-21 05:43:19 | 2020-11-21 09:34:00 | n |
| 159377 | IIEES SC | DAMV | Z | 800 | 1 | 2020-11-21 05:43:36 | 2020-11-21 09:34:00 | n |
| 159378 | IIEES SC | SBZV | Z | 270 | 1 | 2020-11-21 05:43:50 | 2020-11-21 09:34:00 | n |
| 159379 | IIEES SC | BJRD | Z | 160 | 1 | 2020-11-21 05:43:56 | 2020-11-21 09:34:00 | n |
| 159380 | IIEES SC | CHTH | Z | 120 | 1 | 2020-11-21 05:43:57 | 2020-11-21 09:34:00 | n |
| 159381 | IIEES SC | GHVR | Z | 1100 | 1 | 2020-11-21 05:44:47 | 2020-11-21 09:34:00 | n |
| 159382 | IIEES SC | TABS | Z | 270 | 1 | 2020-11-21 05:44:18 | 2020-11-21 09:34:00 | n |
| 159383 | IIEES SC | YZKH | Z | 140 | 1 | 2020-11-21 05:44:39 | 2020-11-21 09:34:00 | n |
| 159384 | IIEES SC | ASAO | Z | 120 | 1 | 2020-11-21 05:44:42 | 2020-11-21 09:34:00 | n |
| 159385 | IIEES SC | KAGH | Z | 27 | 1 | 2020-11-21 05:44:58 | 2020-11-21 09:34:00 | n |
| 159386 | IIEES SC | KHMZ | Z | 80 | 1 | 2020-11-21 05:44:56 | 2020-11-21 09:34:00 | n |
| 159387 | IIEES SC | TBJM | Z | 55 | 1 | 2020-11-21 05:45:34 | 2020-11-21 09:34:00 | n |
| 159388 | IIEES SC | SHRT | Z | 41 | 1 | 2020-11-21 05:45:30 | 2020-11-21 09:34:00 | n |
| 159389 | IIEES SC | SHRT | Z | 39 | 0.84 | 2020-11-21 05:43:46 | 2020-11-21 09:34:00 | n |
| 159390 | IIEES SC | GRMI | Z | 28 | 1 | 2020-11-21 05:45:00 | 2020-11-21 09:34:00 | n |
| 159391 | IIEES SC | GRMI | Z | 21 | 0.97 | 2020-11-21 05:43:54 | 2020-11-21 09:34:00 | n |
| 159392 | IIEES SC | BSRN | Z | 37 | 1 | 2020-11-21 05:45:38 | 2020-11-21 09:34:00 | n |
| 159393 | IIEES SC | BSRN | Z | 29 | 0.85 | 2020-11-21 05:44:13 | 2020-11-21 09:34:00 | n |
| 159394 | IIEES SC | KLNJ | Z | 43 | 1 | 2020-11-21 05:45:03 | 2020-11-21 09:34:00 | n |
| 159395 | IIEES SC | KLNJ | Z | 63 | 0.76 | 2020-11-21 05:44:12 | 2020-11-21 09:34:00 | n |
| 159396 | IIEES SC | GTMR | Z | 36 | 1 | 2020-11-21 05:45:52 | 2020-11-21 09:34:00 | n |
| 159397 | IIEES SC | GTMR | Z | 21 | 0.93 | 2020-11-21 05:44:18 | 2020-11-21 09:34:00 | n |
| 159398 | IIEES SC | SNGE | Z | 21 | 1 | 2020-11-21 05:45:39 | 2020-11-21 09:34:00 | n |
| 159399 | IIEES SC | SNGE | Z | 10 | 0.87 | 2020-11-21 05:44:11 | 2020-11-21 09:34:00 | n |
| 159400 | IIEES SC | AMIS | Z | 44 | 1 | 2020-11-21 05:44:59 | 2020-11-21 09:34:00 | n |
| 159401 | IIEES SC | AMIS | Z | 35 | 0.77 | 2020-11-21 05:44:11 | 2020-11-21 09:34:00 | n |
| 159402 | IIEES SC | MRD | Z | 39 | 0.69 | 2020-11-21 05:44:13 | 2020-11-21 09:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ABGH | Z | IP | I | 2020-11-21 05:42:26 | -0.1 | y | 44 | 34 | |||
| IIEES SC | GLO | Z | IP | I | 2020-11-21 05:42:29 | -0.3 | y | 66 | 281 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-11-21 05:42:37 | -0.7 | y | 111 | 208 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-11-21 05:42:42 | -0.1 | y | 144 | 108 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-11-21 05:42:50 | -0.3 | y | 200 | 45 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-11-21 05:42:58 | 0.7 | y | 244 | 250 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-11-21 05:43:01 | -0.1 | y | 278 | 90 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-11-21 05:43:04 | 0.4 | y | 300 | 61 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-11-21 05:43:07 | 1.6 | y | 311 | 260 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-11-21 05:43:11 | -0.4 | y | 366 | 234 | |||
| IIEES SC | AKL | Z | IP | I | 2020-11-21 05:43:14 | 0.3 | y | 378 | 87 | |||
| IIEES SC | TABS | Z | IP | I | 2020-11-21 05:43:15 | 0.1 | y | 389 | 142 | |||
| IIEES SC | YZKH | Z | IP | I | 2020-11-21 05:43:21 | -0.9 | y | 444 | 179 | |||
| IIEES SC | ASAO | Z | IP | I | 2020-11-21 05:43:23 | -0.5 | y | 455 | 243 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-11-21 05:43:28 | 1 | y | 489 | 83 | |||
| IIEES SC | KHMZ | Z | IP | I | 2020-11-21 05:43:30 | 0.6 | y | 511 | 235 | |||
| IIEES SC | TBJM | Z | IP | I | 2020-11-21 05:43:34 | 0.3 | y | 544 | 103 | |||
| IIEES SC | MEH | Z | IP | I | 2020-11-21 05:43:35 | -0.9 | y | 556 | 179 | |||
| IIEES SC | SHRT | Z | IP | I | 2020-11-21 05:43:42 | -0.3 | y | 611 | 120 | |||
| IIEES SC | GRMI | Z | IP | I | 2020-11-21 05:43:45 | -0.8 | y | 644 | 295 | |||
| IIEES SC | BSRN | Z | IP | I | 2020-11-21 05:43:47 | -0.3 | y | 644 | 139 | |||
| IIEES SC | KLNJ | Z | IP | I | 2020-11-21 05:43:49 | 0.8 | y | 656 | 204 | |||
| IIEES SC | GTMR | Z | IP | I | 2020-11-21 05:43:49 | 0.8 | y | 656 | 229 | |||
| IIEES SC | SNGE | Z | IP | I | 2020-11-21 05:43:49 | -0.2 | y | 667 | 257 | |||
| IIEES SC | AMIS | Z | IP | I | 2020-11-21 05:43:55 | 0.2 | y | 711 | 223 | |||
| IIEES SC | KRBR | Z | IP | I | 2020-11-21 05:44:09 | 10.2 | n | 4 | 745 | 164 | ||
| IIEES SC | MRD | Z | IP | I | 2020-11-21 05:44:09 | 0.9 | y | 822 | 288 | |||
| IIEES SC | SHRT | Z | IVmB_BB | 2020-11-21 05:44:41 | y | 1 | 611 | 120 | ||||
| IIEES SC | KLNJ | Z | IVmB_BB | 2020-11-21 05:44:27 | y | 1 | 656 | 204 | ||||
| IIEES SC | AMIS | Z | IVmB_BB | 2020-11-21 05:44:40 | y | 1 | 711 | 223 | ||||
| IIEES SC | MRD | Z | IVmB_BB | 2020-11-21 05:44:22 | y | 1 | 822 | 288 | ||||
