Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2020-11-24 07:55:57.6 |
| Date & Time (Local) | 1399/9/4 11:25:57.6 |
| Location | Lat:36.97 Lon: 55.11 |
| Region | Golestan Province, 6 km of Ramian |
Nearest Cities |
|
| 6 km of Ramian, Golestan Province | |
| 9 km of Deland, Golestan Province | |
| 12 km East of Khanbebin, Golestan Province | |
| 14 km of Khanduz, Golestan Province | |
| 14 km South of Azadshahr, Golestan Province | |
| Depth | 10 km |
| Agency | |

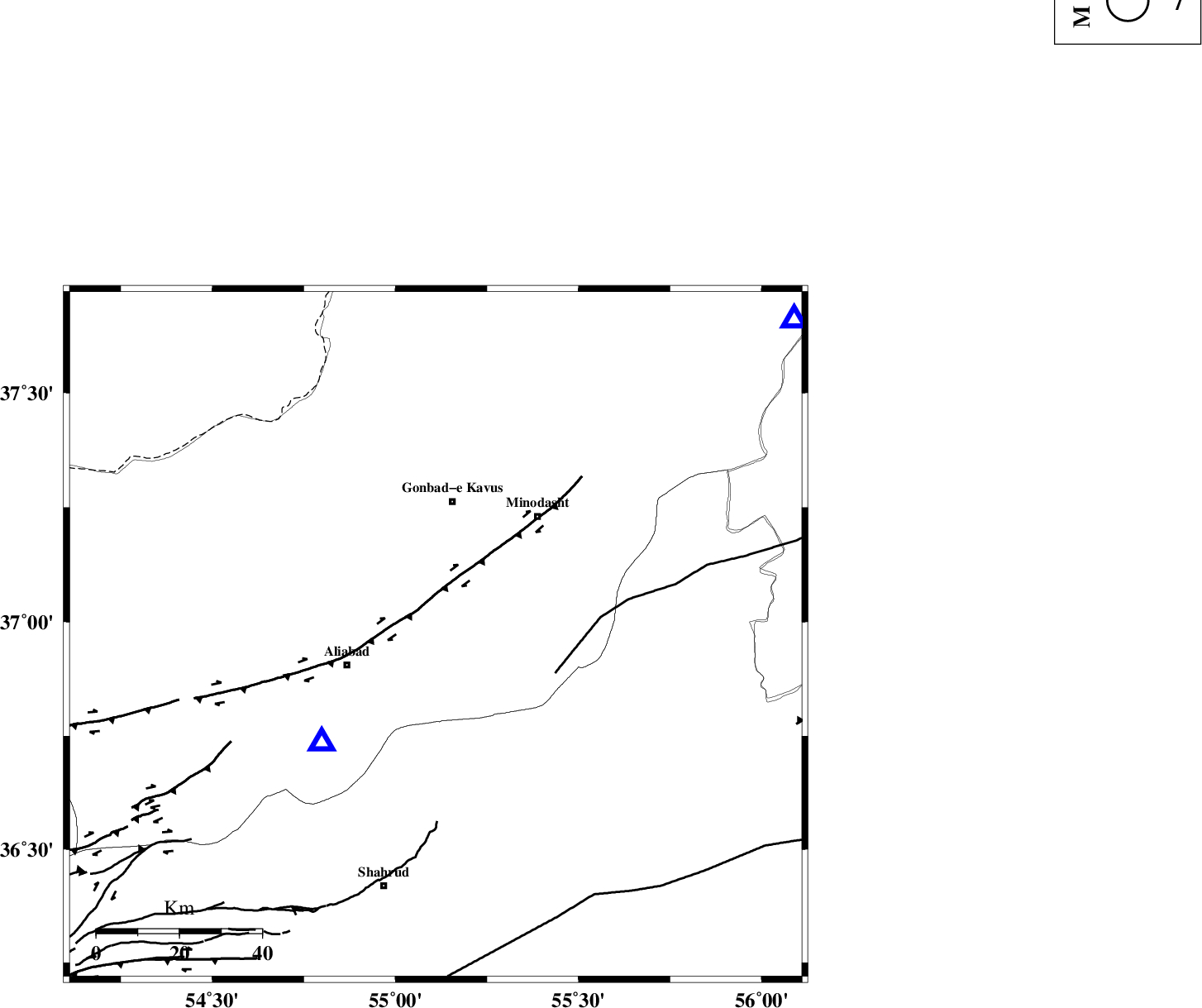

Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 14 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 23 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 30 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 11 |
| Error in Latitude | >1 km |
| Error in Longitude | 0 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159513 | IIEES SC | ABGH | Z | 8.9 | 1 | 2020-11-24 07:56:16 | 2020-11-24 02:01:00 | n |
| 159514 | IIEES SC | MRVT | Z | 170 | 1 | 2020-11-24 07:56:37 | 2020-11-24 02:01:00 | n |
| 159515 | IIEES SC | GLO | Z | 570 | 1 | 2020-11-24 07:56:50 | 2020-11-24 02:01:00 | n |
| 159516 | IIEES SC | SHRO | Z | 2.3 | 1 | 2020-11-24 07:56:40 | 2020-11-24 02:01:00 | n |
| 159517 | IIEES SC | BJRD | Z | 48 | 1 | 2020-11-24 07:57:05 | 2020-11-24 02:01:00 | n |
| 159518 | IIEES SC | SBZV | Z | 57 | 1 | 2020-11-24 07:57:09 | 2020-11-24 02:01:00 | n |
| 159519 | IIEES SC | DAMV | Z | 68 | 1 | 2020-11-24 07:57:35 | 2020-11-24 02:01:00 | n |
| 159520 | IIEES SC | TABS | Z | 18 | 1 | 2020-11-24 07:58:07 | 2020-11-24 02:01:00 | n |
| 159521 | IIEES SC | KAGH | Z | 3.3 | 1 | 2020-11-24 07:58:17 | 2020-11-24 02:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ABGH | Z | IP | I | 2020-11-24 07:56:03 | -1.1 | y | 33 | 226 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-11-24 07:56:17 | -0.1 | y | 111 | 49 | |||
| IIEES SC | GLO | Z | IP | I | 2020-11-24 07:56:19 | 0.5 | y | 122 | 245 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-11-24 07:56:20 | 0 | y | 133 | 143 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-11-24 07:56:30 | 0 | y | 200 | 213 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-11-24 07:56:32 | -0.2 | y | 222 | 68 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-11-24 07:56:35 | 0.3 | y | 233 | 106 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-11-24 07:56:45 | -0.1 | y | 322 | 242 | |||
| IIEES SC | AKL | Z | IP | I | 2020-11-24 07:56:46 | -0.2 | y | 333 | 97 | |||
| IIEES SC | TABS | Z | IP | I | 2020-11-24 07:56:57 | 0.1 | y | 411 | 154 | |||
| IIEES SC | KAGH | Z | IP | I | 2020-11-24 07:57:00 | 1.2 | y | 433 | 90 | |||
