Systems
Event Specification

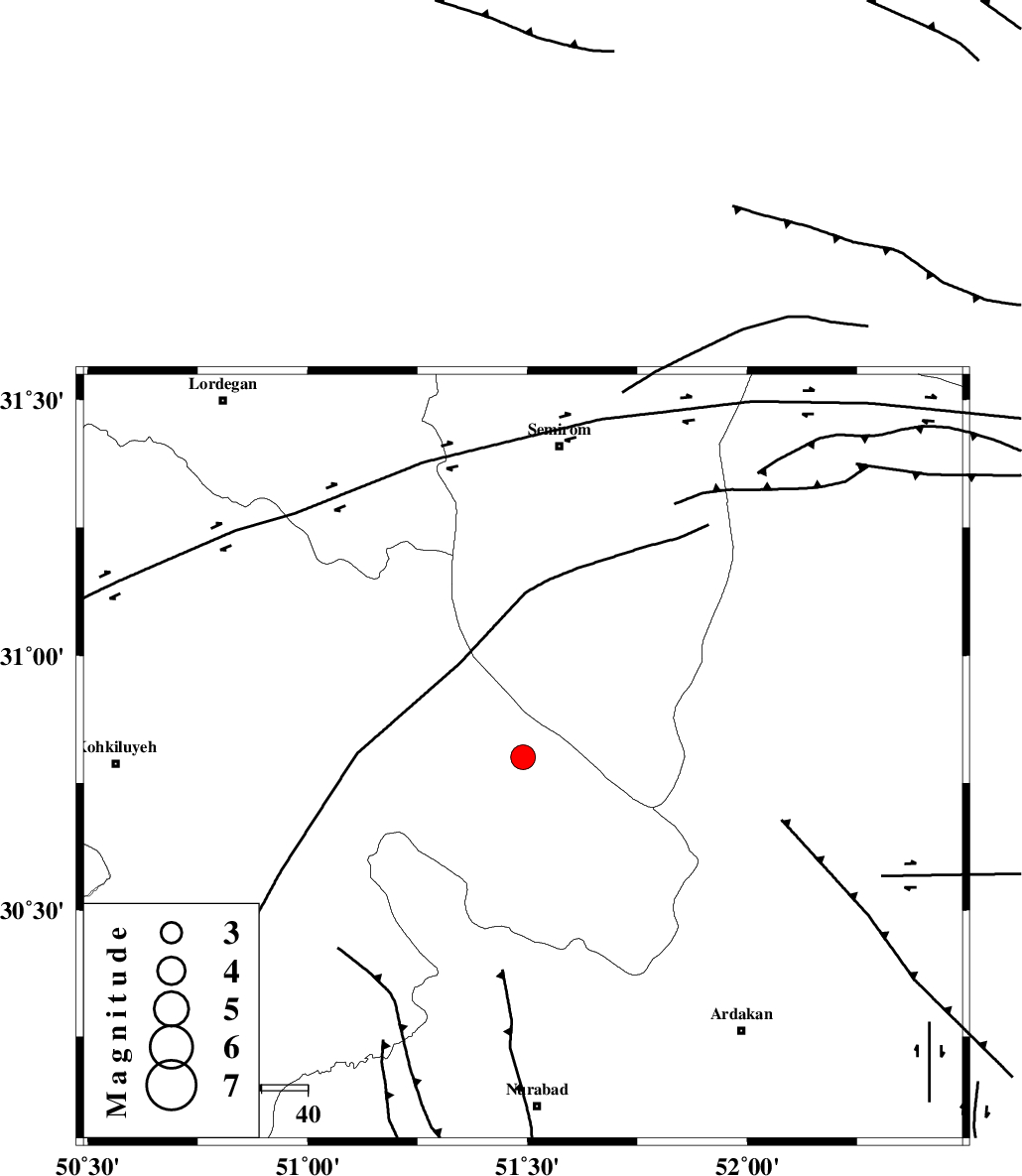

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3.5
Date & Time (UTC) 2020-12-10 20:28:48.2
Date & Time (Local) 1399/9/20  23:58:48.2
Location Lat:30.8 Lon: 51.49
Region Kohkiluieh va boyerahmad Province, 8 km of Sisakht
Nearest Cities
7 km of Kerik, Kohkiluieh va boyerahmad Province
8 km of Sisakht, Kohkiluieh va boyerahmad Province
16 km North of Yasuj, Kohkiluieh va boyerahmad Province
18 km North East of Chitab, Kohkiluieh va boyerahmad Province
23 km North of Tal-e khosro, Kohkiluieh va boyerahmad Province
Depth 10 km
Agency
Faults within 150 km:
DENA_F (Length: 137 km) , Distance to epicenter: 11 km
HZF3 (Length: 197 km) , Distance to epicenter: 21 km
KAZERUN_F (Length: 96 km) , Distance to epicenter: 33 km
Number of Phases 20
RMS 0.3
Number of Stations 17
Error in Latitude >2 km
Error in Longitude 0 km
Error in Depth 383 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
159933IIEES SCAMISZ 36012020-12-10 20:30:132020-12-15 08:40:00n
159934IIEES SCGTMRZ 20012020-12-10 20:30:372020-12-15 08:40:00n
159935IIEES SCYZKHZ 3412020-12-10 20:30:252020-12-15 08:40:00n
159936IIEES SCKHMZZ 5112020-12-10 20:30:442020-12-15 08:40:00n
159937IIEES SCGHVRZ 5712020-12-10 20:31:032020-12-15 08:40:00n
159938IIEES SCASAOZ 5012020-12-10 20:31:172020-12-15 08:40:00n
159939IIEES SCKRBRZ 2912020-12-10 20:31:412020-12-15 08:40:00n
159940IIEES SCDAMVZ 9.112020-12-10 20:31:352020-12-15 08:40:00n
159941IIEES SCCHTHZ 8.712020-12-10 20:31:572020-12-15 08:40:00n
159942IIEES SCILBAZ 1612020-12-10 20:31:192020-12-15 08:40:00n
159943IIEES SCSNGEZ 2512020-12-10 20:32:192020-12-15 08:40:00n
159944IIEES SCTABSZ 1412020-12-10 20:32:062020-12-15 08:40:00n
159945IIEES SCGLOZ 4412020-12-10 20:31:412020-12-15 08:40:00n
159946IIEES SCSHROZ 2.712020-12-10 20:32:412020-12-15 08:40:00n
159947IIEES SCABGHZ 5.112020-12-10 20:31:422020-12-15 08:40:00n
159948IIEES SCMRVTZ 4.512020-12-10 20:31:342020-12-15 08:40:00n
159949IIEES SCSHRTZ 3.512020-12-10 20:33:142020-12-15 08:40:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCKLNJN IS I2020-12-10 20:28:48-8.6n42224
IIEES SCKLNJZ IP I2020-12-10 20:28:45-7.6n42224
IIEES SCAHRMZ IP I2020-12-10 20:29:230.8n4211185
IIEES SCAMISZ IP I2020-12-10 20:29:250.4y233295
IIEES SCGTMRZ IP I2020-12-10 20:29:32-0.1y289309
IIEES SCYZKHZ IP I2020-12-10 20:29:390.2y34459
IIEES SCKHMZZ IP I2020-12-10 20:29:400y355336
IIEES SCGHVRZ IP I2020-12-10 20:29:470.5y411357
IIEES SCASAOZ IP I2020-12-10 20:29:500y433342
IIEES SCKRBRZ IP I2020-12-10 20:30:00-0.2y511100
IIEES SCDAMVZ IP I2020-12-10 20:30:03-0.3y5335
IIEES SCCHTHZ IP I2020-12-10 20:30:06-0.5y567357
IIEES SCILBAZ IP I2020-12-10 20:30:08-0.8y589302
IIEES SCSNGEZ IP I2020-12-10 20:30:120y611321
IIEES SCTABSZ IP I2020-12-10 20:30:12-0.2y62259
IIEES SCGLOZ IP I2020-12-10 20:30:190.3y66719
IIEES SCSHROZ IP I2020-12-10 20:30:250.3y71136
IIEES SCABGHZ IP I2020-12-10 20:30:26-0.6y72225
IIEES SCMRVTZ IP I2020-12-10 20:30:450.6y86729
IIEES SCSHRTZ IP I2020-12-10 20:30:460.3y88969
