Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-12-15 06:54:15.6 |
| Date & Time (Local) | 1399/9/25 10:24:15.6 |

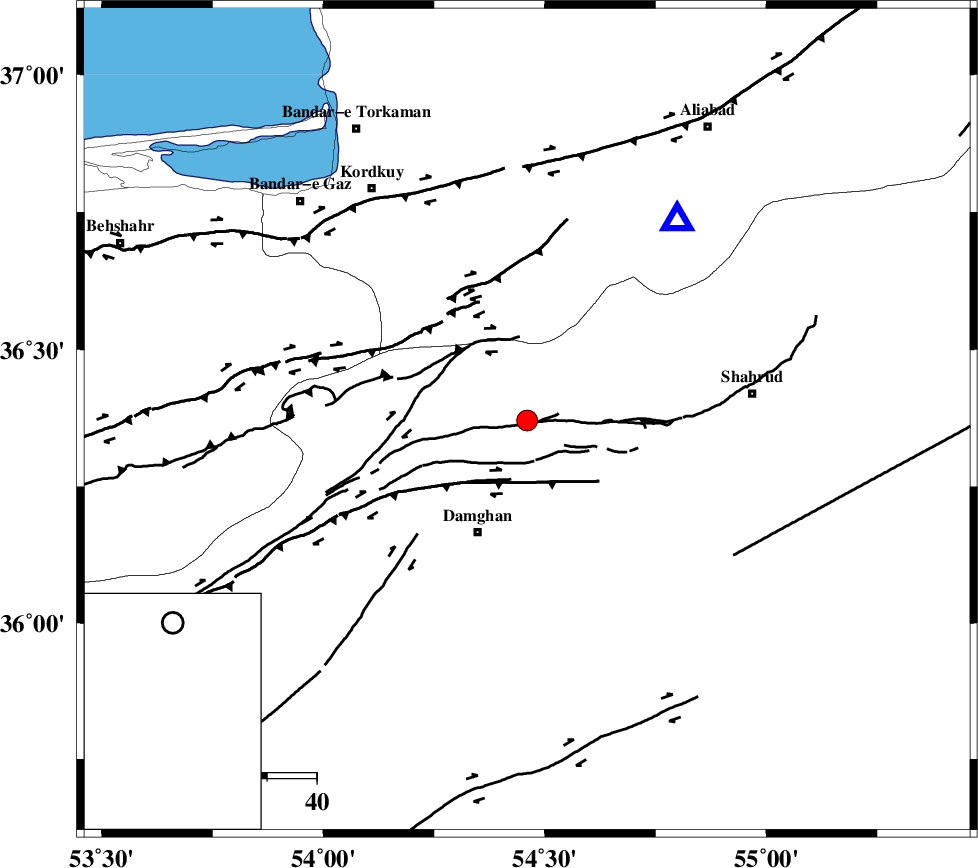

| Location | Lat:36.37 Lon: 54.46 |
| Region | Semnan Province, 25 km North-East of Damghan |
Nearest Cities |
|
| 19 km North of Mehmandust, Semnan Province | |
| 20 km South of Cheharbagh, Golestan Province | |
| 21 km South West of Majen, Semnan Province | |
| 25 km North East of Damghan, Semnan Province | |
| 33 km South of Naharkhoran, Golestan Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| DAMGHAN_F (Length: 95 km) , Distance to epicenter: 13 km | |
| ASTANEH_F (Length: 72 km) , Distance to epicenter: 16 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 17 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >2 km |
| Error in Longitude | 0 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 159950 | IIEES SC | ABGH | Z | 3.2 | 1 | 2020-12-15 06:55:02 | 2020-12-15 11:06:00 | n |
| 159951 | IIEES SC | GLO | Z | 2500 | 1 | 2020-12-15 06:54:40 | 2020-12-15 11:06:00 | n |
| 159952 | IIEES SC | ANJ | Z | 130 | 1 | 2020-12-15 06:54:53 | 2020-12-15 11:06:00 | n |
| 159953 | IIEES SC | SHRO | Z | 2.1 | 1 | 2020-12-15 06:55:16 | 2020-12-15 11:06:00 | n |
| 159954 | IIEES SC | MRVT | Z | 98 | 1 | 2020-12-15 06:55:20 | 2020-12-15 11:06:00 | n |
| 159955 | IIEES SC | DAMV | Z | 45 | 1 | 2020-12-15 06:55:18 | 2020-12-15 11:06:00 | n |
| 159956 | IIEES SC | BJRD | Z | 15 | 1 | 2020-12-15 06:55:55 | 2020-12-15 11:06:00 | n |
| 159957 | IIEES SC | CHTH | Z | 17 | 1 | 2020-12-15 06:56:18 | 2020-12-15 11:06:00 | n |
| 159958 | IIEES SC | GHVR | Z | 200 | 1 | 2020-12-15 06:56:45 | 2020-12-15 11:06:00 | n |
| 159959 | IIEES SC | TABS | Z | 26 | 1 | 2020-12-15 06:56:22 | 2020-12-15 11:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ABGH | Z | IP | I | 2020-12-15 06:54:24 | -0.6 | y | 55 | 37 | |||
| IIEES SC | GLO | Z | IP | I | 2020-12-15 06:54:26 | -0.1 | y | 55 | 285 | |||
| IIEES SC | ANJ | Z | IP | I | 2020-12-15 06:54:34 | -0.2 | y | 111 | 206 | |||
| IIEES SC | SHRO | Z | IP | I | 2020-12-15 06:54:40 | 0.3 | y | 144 | 106 | |||
| IIEES SC | MRVT | Z | IP | I | 2020-12-15 06:54:48 | 0 | y | 200 | 45 | |||
| IIEES SC | DAMV | Z | IP | I | 2020-12-15 06:54:53 | 0.2 | y | 233 | 250 | |||
| IIEES SC | SBZV | Z | IP | I | 2020-12-15 06:54:59 | 0.1 | y | 278 | 90 | |||
| IIEES SC | BJRD | Z | IP | I | 2020-12-15 06:55:02 | 0.7 | y | 300 | 61 | |||
| IIEES SC | CHTH | Z | IP | I | 2020-12-15 06:55:02 | 0.7 | y | 300 | 260 | |||
| IIEES SC | GHVR | Z | IP | I | 2020-12-15 06:55:07 | -0.9 | y | 355 | 234 | |||
| IIEES SC | TABS | Z | IP | I | 2020-12-15 06:55:11 | -0.4 | y | 389 | 141 | |||
