Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2021-01-23 09:23:56.7 |
| Date & Time (Local) | 1399/11/4 12:53:56.7 |

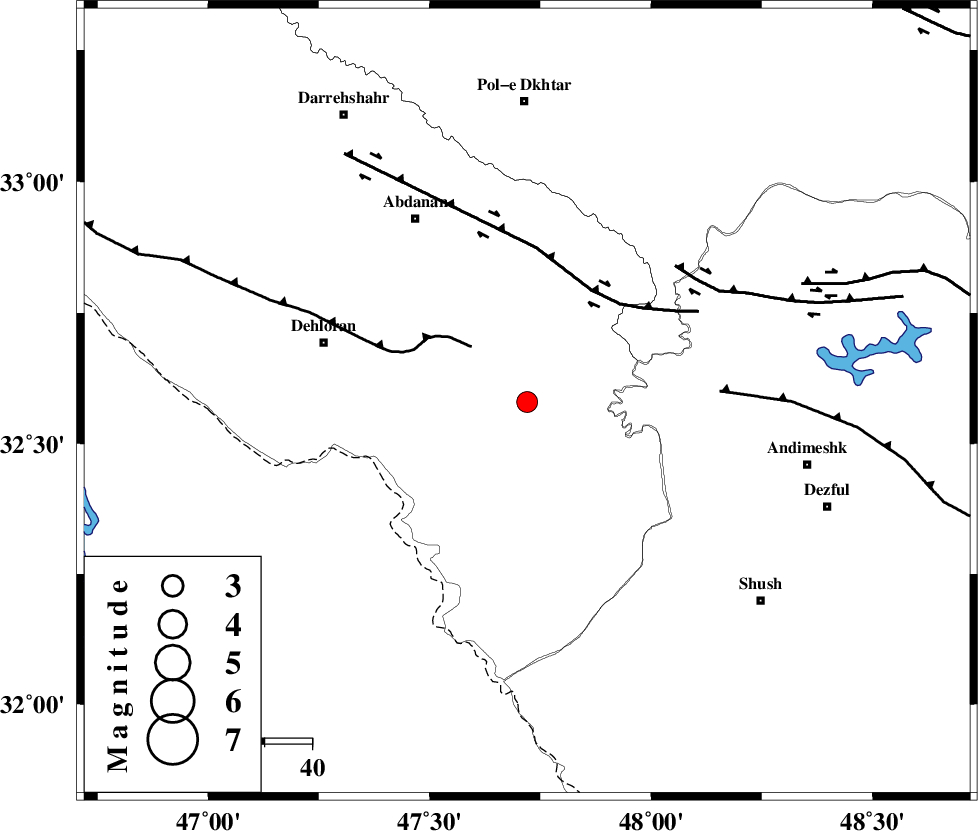

| Location | Lat:32.58 Lon: 47.72 |
| Region | Ilam Province, 45 km South-East of Dehloran |
Nearest Cities |
|
| 34 km North East of Musian, Ilam Province | |
| 38 km South East of Sarabbagh, Ilam Province | |
| 45 km South East of Dehloran, Ilam Province | |
| 45 km South East of Abdanan, Ilam Province | |
| 51 km South West of Hoseinieh, Khoozestan Province | |
| Depth | 23 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 27 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 41 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >5 km |
| Error in Longitude | 0 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 161194 | IIEES SC | GTMR | Z | 220 | 1 | 2021-01-23 09:24:40 | 2021-01-24 12:35:00 | n |
| 161195 | IIEES SC | AMIS | Z | 160 | 1 | 2021-01-23 09:25:03 | 2021-01-24 12:35:00 | n |
| 161196 | IIEES SC | KHMZ | Z | 62 | 1 | 2021-01-23 09:25:08 | 2021-01-24 12:35:00 | n |
| 161197 | IIEES SC | SNGE | Z | 43 | 1 | 2021-01-23 09:25:20 | 2021-01-24 12:35:00 | n |
| 161198 | IIEES SC | ASAO | Z | 50 | 1 | 2021-01-23 09:25:26 | 2021-01-24 12:35:00 | n |
| 161199 | IIEES SC | GHVR | Z | 160 | 1 | 2021-01-23 09:26:03 | 2021-01-24 12:35:00 | n |
| 161200 | IIEES SC | KLNJ | Z | 25 | 1 | 2021-01-23 09:26:12 | 2021-01-24 12:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | IP | I | 2021-01-23 09:24:18 | -0.3 | y | 133 | 95 | |||
| IIEES SC | AMIS | Z | IP | I | 2021-01-23 09:24:26 | 0.5 | y | 177 | 124 | |||
| IIEES SC | KHMZ | Z | IP | I | 2021-01-23 09:24:34 | 0.2 | y | 244 | 58 | |||
| IIEES SC | SNGE | Z | IP | I | 2021-01-23 09:24:38 | -0.1 | y | 278 | 353 | |||
| IIEES SC | ASAO | Z | IP | I | 2021-01-23 09:24:42 | 0.5 | y | 311 | 44 | |||
| IIEES SC | QABG | Z | IP | I | 2021-01-23 09:24:51 | -0.3 | y | 389 | 26 | |||
| IIEES SC | GHVR | Z | IP | I | 2021-01-23 09:24:52 | 0.4 | y | 389 | 57 | |||
| IIEES SC | KLNJ | Z | IP | I | 2021-01-23 09:24:53 | -0.6 | y | 411 | 115 | |||
| IIEES SC | SRSL | Z | IP | I | 2021-01-23 09:24:59 | -0.8 | n | 4 | 455 | 332 | ||
