Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2021-06-29 03:30:36.0 |
| Date & Time (Local) | 1400/4/8 08:00:36.0 |
| Location | Lat:31.388 Lon: 50.076 |
| Region | Khoozestan Province, 22 km South-East of Bagh Malek |
Nearest Cities |
|
| 3 km North of Seidun, Khoozestan Province | |
| 20 km North East of Dalan, Khoozestan Province | |
| 20 km South of Abolabbas, Khoozestan Province | |
| 22 km South East of Bagh Malek, Khoozestan Province | |
| 23 km North West of Esfandan, Kohkiluieh va boyerahmad Province | |
| Depth | 16 km |
| Agency | |

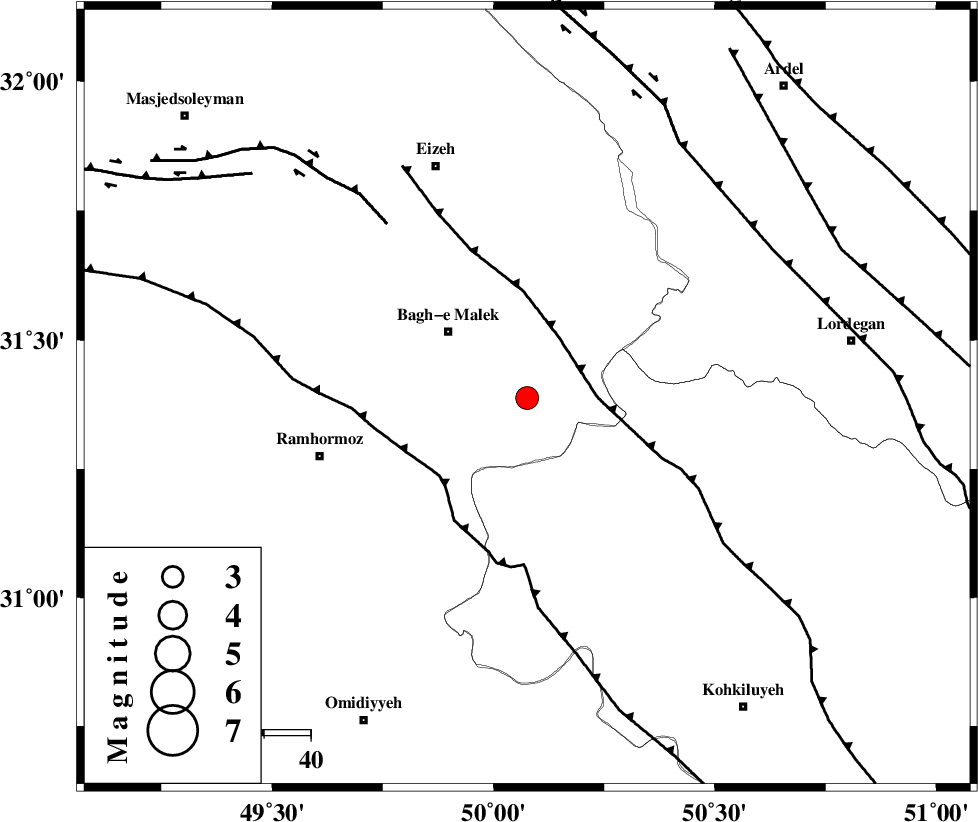

Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 14 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 18 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 22 km | |
| Number of Phases | 12 |
| RMS | 0.3 |
| Number of Stations | 12 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 163859 | IIEES SC | KLNJ | Z | 1 | 1 | 2021-06-29 03:31:01 | 2021-06-30 05:39:00 | n |
| 163860 | IIEES SC | GTMR | Z | 2 | 1 | 2021-06-29 03:31:00 | 2021-06-30 05:39:00 | n |
| 163861 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2021-06-29 03:31:15 | 2021-06-30 05:39:00 | n |
| 163862 | IIEES SC | NASN | Z | 0.07 | 1 | 2021-06-29 03:31:21 | 2021-06-30 05:39:00 | n |
| 163863 | IIEES SC | ASAO | Z | 0.09 | 1 | 2021-06-29 03:31:28 | 2021-06-30 05:39:00 | n |
| 163864 | IIEES SC | GHVR | Z | 0.1 | 1 | 2021-06-29 03:31:28 | 2021-06-30 05:39:00 | n |
| 163865 | IIEES SC | ILBA | Z | 0.06 | 1 | 2021-06-29 03:31:38 | 2021-06-30 05:39:00 | n |
| 163866 | IIEES SC | YZKH | Z | 0.03 | 1 | 2021-06-29 03:31:38 | 2021-06-30 05:39:00 | n |
| 163867 | IIEES SC | SNGE | Z | 0.04 | 1 | 2021-06-29 03:31:43 | 2021-06-30 05:39:00 | n |
| 163868 | IIEES SC | TABS | Z | 0.01 | 1 | 2021-06-29 03:32:11 | 2021-06-30 05:39:00 | n |
| 163869 | IIEES SC | ABGH | Z | 0.01 | 1 | 2021-06-29 03:32:14 | 2021-06-30 05:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2021-06-29 03:31:01 | 0.3 | y | 0 | 150 | 106 | ||
| IIEES SC | GTMR | Z | EPg | E | 2021-06-29 03:31:00 | -0.1 | y | 0 | 151 | 323 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-06-29 03:31:15 | -0.4 | y | 0 | 261 | 358 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-06-29 03:31:21 | 0 | y | 0 | 302 | 59 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-06-29 03:31:28 | 0.9 | y | 0 | 350 | 359 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-06-29 03:31:28 | 0.3 | y | 0 | 360 | 18 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-06-29 03:31:37 | 0.1 | y | 0 | 432 | 90 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-06-29 03:31:38 | 0.2 | y | 0 | 440 | 304 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-06-29 03:31:38 | -0.2 | y | 0 | 441 | 75 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-06-29 03:31:43 | -0.3 | y | 0 | 483 | 328 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-06-29 03:32:11 | -0.3 | y | 0 | 708 | 69 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-06-29 03:32:14 | -0.4 | y | 0 | 736 | 36 | ||
