Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2021-07-03 06:33:52.7 |
| Date & Time (Local) | 1400/4/12 11:03:52.7 |

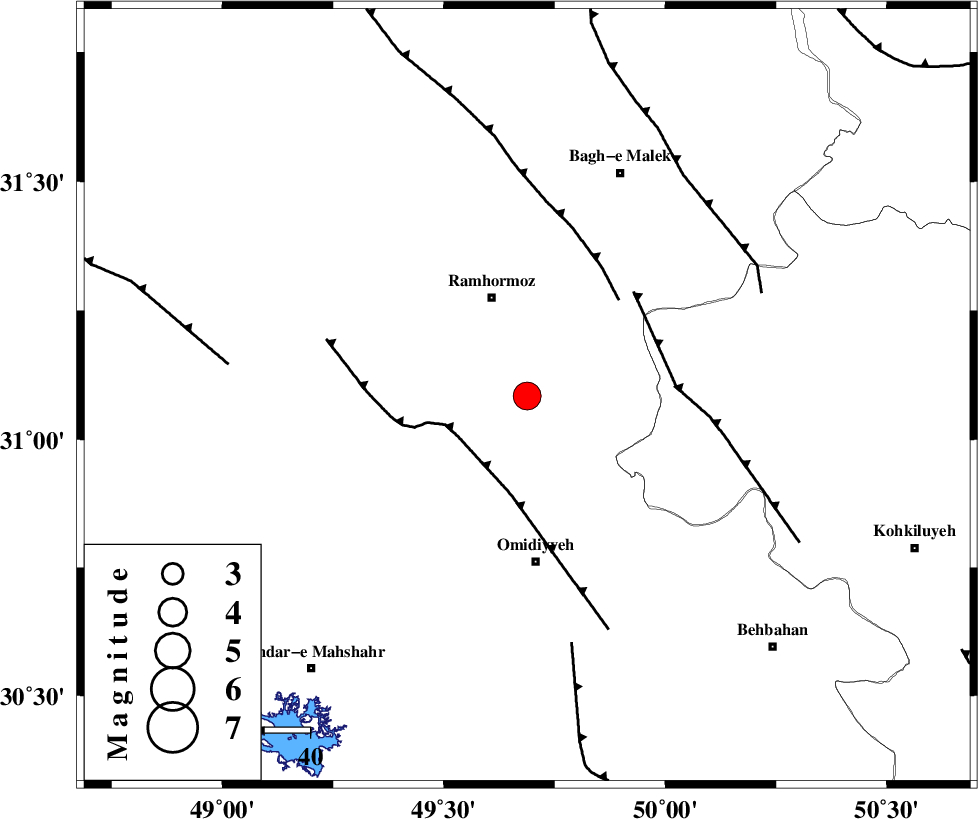

| Location | Lat:31.084 Lon: 49.688 |
| Region | Khoozestan Province, 23 km South of Ramhormoz |
Nearest Cities |
|
| 4 km North of Soltanabad, Khoozestan Province | |
| 23 km South of Ramhormoz, Khoozestan Province | |
| 26 km North East of Meshrageh, Khoozestan Province | |
| 28 km North West of Jayzan, Khoozestan Province | |
| 32 km South West of Dalan, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 17 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 29 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 32 km | |
| Number of Phases | 22 |
| RMS | 0.5 |
| Number of Stations | 22 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 11.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 163921 | IIEES SC | GTMR | Z | 3 | 1 | 2021-07-03 06:34:20 | 2021-07-03 07:04:00 | n |
| 163922 | IIEES SC | AHRM | Z | 0.7 | 1 | 2021-07-03 06:34:35 | 2021-07-03 07:04:00 | n |
| 163923 | IIEES SC | NASN | Z | 0.4 | 1 | 2021-07-03 06:34:44 | 2021-07-03 07:04:00 | n |
| 163924 | IIEES SC | GHVR | Z | 0.5 | 1 | 2021-07-03 06:34:51 | 2021-07-03 07:04:00 | n |
| 163925 | IIEES SC | ILBA | Z | 0.2 | 1 | 2021-07-03 06:34:54 | 2021-07-03 07:04:00 | n |
| 163926 | IIEES SC | YZKH | Z | 0.4 | 1 | 2021-07-03 06:35:01 | 2021-07-03 07:04:00 | n |
| 163927 | IIEES SC | SNGE | Z | 0.06 | 1 | 2021-07-03 06:35:01 | 2021-07-03 07:04:00 | n |
| 163928 | IIEES SC | GZV | Z | 0.1 | 1 | 2021-07-03 06:35:14 | 2021-07-03 07:04:00 | n |
| 163929 | IIEES SC | KRBR | Z | 0.1 | 1 | 2021-07-03 06:35:27 | 2021-07-03 07:04:00 | n |
| 163930 | IIEES SC | BNDS | Z | 0.07 | 1 | 2021-07-03 06:35:33 | 2021-07-03 07:04:00 | n |
| 163931 | IIEES SC | TABS | Z | 0.09 | 1 | 2021-07-03 06:35:33 | 2021-07-03 07:04:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2021-07-03 06:34:20 | 0.9 | y | 0 | 163 | 340 | ||
| IIEES SC | KLNJ | Z | EPg | E | 2021-07-03 06:34:21 | -0.9 | y | 0 | 182 | 93 | ||
| IIEES SC | AHRM | Z | EPn | E | 2021-07-03 06:34:35 | 0.2 | y | 0 | 283 | 151 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-03 06:34:34 | -3.4 | n | 4 | 296 | 5 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-07-03 06:34:44 | 0.3 | y | 0 | 351 | 57 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-07-03 06:34:51 | 0.9 | y | 0 | 404 | 21 | ||
| IIEES SC | ILBA | Z | EPn | E | 2021-07-03 06:34:54 | -0.2 | y | 0 | 432 | 311 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-07-03 06:34:55 | -0.6 | y | 0 | 445 | 134 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-07-03 06:34:59 | -0.2 | y | 0 | 470 | 86 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-07-03 06:35:01 | -0.1 | y | 0 | 487 | 73 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-03 06:35:01 | -0.4 | y | 0 | 495 | 334 | ||
| IIEES SC | QABG | Z | EPn | E | 2021-07-03 06:35:05 | 0.8 | y | 0 | 513 | 359 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-07-03 06:35:14 | 0.5 | y | 0 | 590 | 5 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-07-03 06:35:27 | 0.7 | y | 0 | 690 | 100 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-07-03 06:35:30 | 0.6 | y | 0 | 713 | 33 | ||
| IIEES SC | BNDS | Z | EPn | E | 2021-07-03 06:35:33 | -1 | y | 0 | 751 | 123 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-07-03 06:35:33 | -0.8 | y | 0 | 755 | 68 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-07-03 06:35:39 | -0.6 | y | 0 | 802 | 47 | ||
| IIEES SC | BSRN | Z | EPn | E | 2021-07-03 06:35:52 | -0.3 | y | 0 | 902 | 84 | ||
| IIEES SC | MRVT | Z | EPn | E | 2021-07-03 06:35:56 | -0.8 | y | 0 | 937 | 39 | ||
| IIEES SC | JSSH | Z | EPn | E | 2021-07-03 06:35:57 | -0.7 | y | 0 | 947 | 127 | ||
| IIEES SC | BJRD | Z | EPn | E | 2021-07-03 06:36:07 | -0.6 | y | 0 | 1021 | 44 | ||
