Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2021-12-22 20:45:21.8 |
| Date & Time (Local) | 1400/10/2 00:15:21.8 |
| Location | Lat:34.748 Lon: 45.523 |
| Region | Iraq, 26 km North of Qasr-E-Shirin |
Nearest Cities |
|
| 18 km West of Tappeh rash, Kermanshah Province | |
| 26 km North West of Gardehnu, Kermanshah Province | |
| 26 km North West of Aqabarar, Kermanshah Province | |
| 26 km North of Qasr-E-Shirin, Kermanshah Province | |
| 28 km West of Tazehabad, Kermanshah Province | |
| Depth | 9 km |
| Agency | |

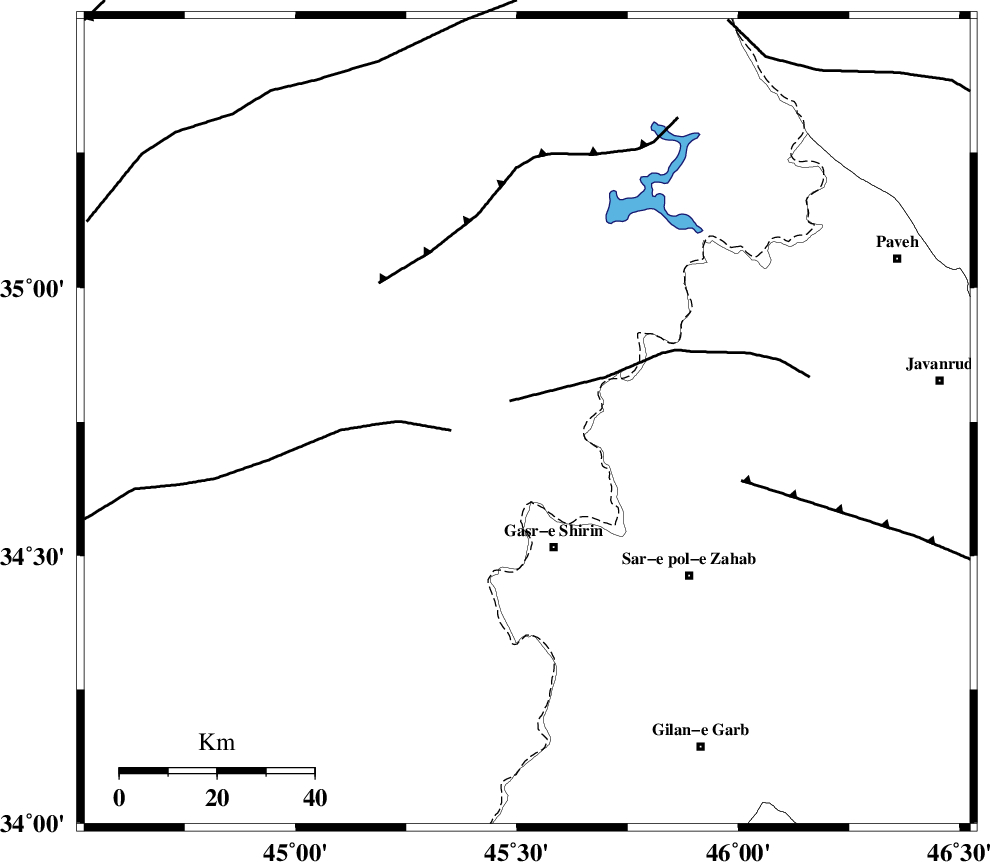

Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 15 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 51 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 91 km | |
| Number of Phases | 15 |
| RMS | 0.4 |
| Number of Stations | 15 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 167578 | IIEES SC | ZNJK | Z | 0.07 | 1 | 2021-12-22 20:46:14 | 2021-12-25 06:12:00 | n |
| 167579 | IIEES SC | ASAO | Z | 0.1 | 1 | 2021-12-22 20:46:21 | 2021-12-25 06:12:00 | n |
| 167580 | IIEES SC | GTMR | Z | 0.1 | 1 | 2021-12-22 20:46:21 | 2021-12-25 06:12:00 | n |
| 167581 | IIEES SC | KHMZ | Z | 0.1 | 1 | 2021-12-22 20:46:23 | 2021-12-25 06:12:00 | n |
| 167582 | IIEES SC | GIDE | Z | 0.2 | 1 | 2021-12-22 20:46:26 | 2021-12-25 06:12:00 | n |
| 167583 | IIEES SC | GZV | Z | 0.2 | 1 | 2021-12-22 20:46:27 | 2021-12-25 06:12:00 | n |
| 167584 | IIEES SC | GRMI | Z | 0.06 | 1 | 2021-12-22 20:46:32 | 2021-12-25 06:12:00 | n |
| 167585 | IIEES SC | MAKU | Z | 0.03 | 1 | 2021-12-22 20:46:33 | 2021-12-25 06:12:00 | n |
| 167586 | IIEES SC | GHVR | Z | 0.1 | 1 | 2021-12-22 20:46:36 | 2021-12-25 06:12:00 | n |
| 167587 | IIEES SC | NASN | Z | 0.02 | 1 | 2021-12-22 20:46:58 | 2021-12-25 06:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-12-22 20:45:45 | 0.1 | y | 0 | 140 | 153 | ||
| IIEES SC | SNGE | Z | EPg | E | 2021-12-22 20:45:49 | -0.3 | y | 0 | 171 | 77 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-12-22 20:46:11 | 0.2 | y | 0 | 328 | 7 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-12-22 20:46:14 | -0.1 | y | 0 | 357 | 53 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-12-22 20:46:21 | -0.6 | y | 0 | 413 | 93 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-12-22 20:46:21 | -0.2 | y | 0 | 418 | 127 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-12-22 20:46:23 | 0.2 | y | 0 | 424 | 105 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-12-22 20:46:24 | 0 | y | 0 | 440 | 2 | ||
| IIEES SC | GIDE | Z | EPn | E | 2021-12-22 20:46:26 | -0.3 | y | 0 | 458 | 58 | ||
| IIEES SC | GZV | Z | EPn | E | 2021-12-22 20:46:27 | 0.1 | y | 0 | 463 | 67 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-12-22 20:46:32 | 0.7 | y | 0 | 498 | 25 | ||
| IIEES SC | MAKU | Z | EPn | E | 2021-12-22 20:46:33 | -0.9 | y | 0 | 517 | 352 | ||
| IIEES SC | CHTH | Z | EPn | E | 2021-12-22 20:46:35 | 0.3 | y | 0 | 525 | 76 | ||
| IIEES SC | GHVR | Z | EPn | E | 2021-12-22 20:46:36 | 0.7 | y | 0 | 526 | 93 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-12-22 20:46:58 | 0 | y | 0 | 709 | 108 | ||
