Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2022-01-08 19:13:41.5 |
| Date & Time (Local) | 1400/10/18 22:43:41.5 |

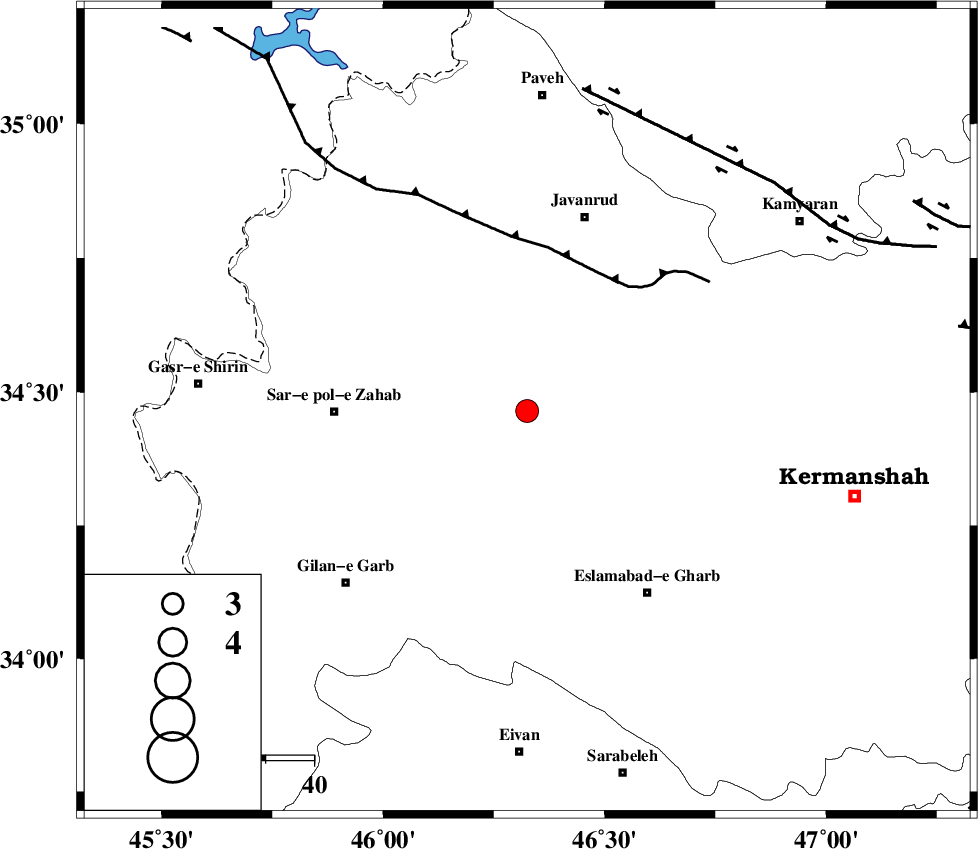

| Location | Lat:34.464 Lon: 46.325 |
| Region | Kermanshah Province, 40 km -East of Sar-e pol-e zahab |
Nearest Cities |
|
| 4 km of Zavleh olia, Kermanshah Province | |
| 12 km North of Gahvareh, Kermanshah Province | |
| 22 km North of Kerend, Kermanshah Province | |
| 25 km South of Mirabad, Kermanshah Province | |
| 25 km West of Kuzran, Kermanshah Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 15 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 29 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 70 km | |
| Number of Phases | 15 |
| RMS | 0.2 |
| Number of Stations | 15 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 168004 | IIEES SC | ASAO | Z | 0.1 | 1 | 2022-01-08 19:14:32 | 2022-01-09 05:19:00 | n |
| 168005 | IIEES SC | GTMR | Z | 0.1 | 1 | 2022-01-08 19:14:31 | 2022-01-09 05:19:00 | n |
| 168006 | IIEES SC | GHVR | Z | 0.1 | 1 | 2022-01-08 19:14:46 | 2022-01-09 05:19:00 | n |
| 168007 | IIEES SC | CHTH | Z | 0.03 | 1 | 2022-01-08 19:14:48 | 2022-01-09 05:19:00 | n |
| 168008 | IIEES SC | GRMI | Z | 0.02 | 1 | 2022-01-08 19:14:51 | 2022-01-09 05:19:00 | n |
| 168009 | IIEES SC | KLNJ | Z | 0.04 | 1 | 2022-01-08 19:15:06 | 2022-01-09 05:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2022-01-08 19:13:57 | 0 | y | 0 | 94 | 187 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-01-08 19:14:15 | -0.1 | y | 0 | 210 | 337 | ||
| IIEES SC | MAHB | Z | EPn | E | 2022-01-08 19:14:22 | 0.2 | y | 0 | 262 | 348 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-01-08 19:14:30 | 0 | y | 0 | 325 | 41 | ||
| IIEES SC | QABG | Z | EPn | E | 2022-01-08 19:14:23 | -6.6 | n | 4 | 328 | 65 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-01-08 19:14:32 | -0.1 | y | 0 | 340 | 88 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-01-08 19:14:31 | -0.2 | y | 0 | 341 | 130 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-01-08 19:14:32 | 0 | y | 0 | 345 | 103 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-01-08 19:14:34 | -0.2 | y | 0 | 358 | 355 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-01-08 19:14:37 | -4.4 | n | 4 | 418 | 49 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-01-08 19:14:46 | 0.3 | y | 0 | 452 | 90 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-01-08 19:14:48 | 0.4 | y | 0 | 466 | 70 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-01-08 19:14:58 | 10 | n | 4 | 475 | 353 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-01-08 19:14:51 | -0.5 | y | 0 | 502 | 16 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-01-08 19:15:06 | -0.9 | y | 0 | 625 | 128 | ||
