Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2022-04-14 06:52:13.2 |
| Date & Time (Local) | 1401/1/25 11:22:13.2 |

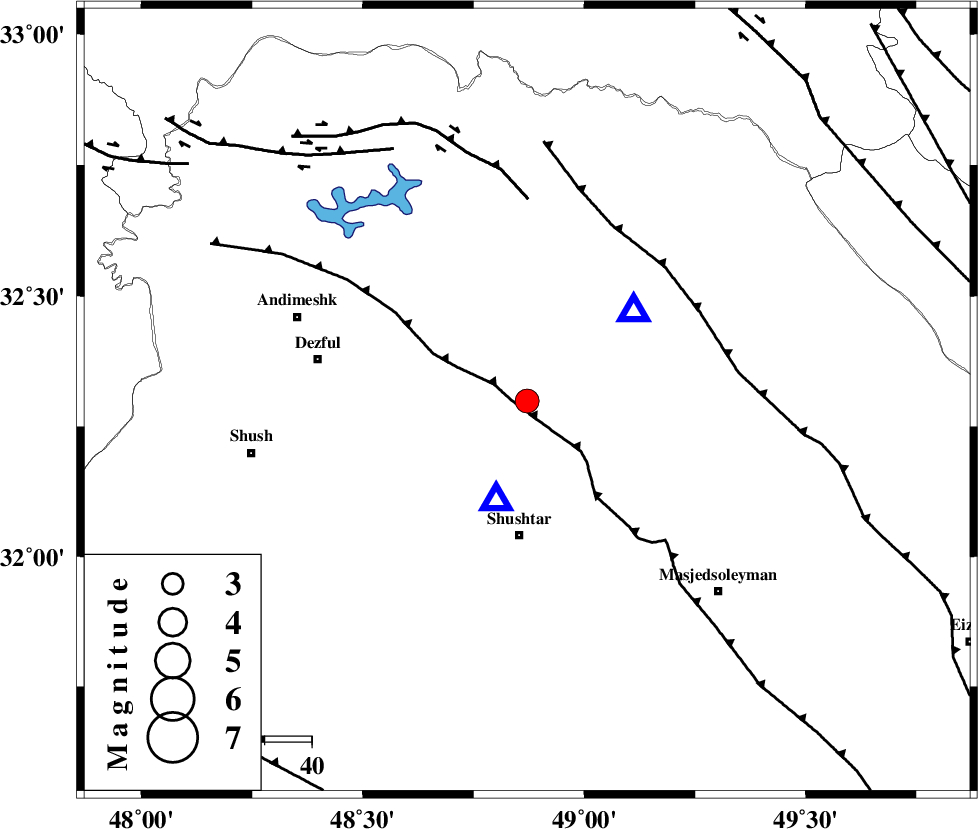

| Location | Lat:32.299 Lon: 48.871 |
| Region | Khoozestan Province, 29 km North of Shushtar |
Nearest Cities |
|
| 8 km North of Gatvand, Khoozestan Province | |
| 11 km North of Samaleh, Khoozestan Province | |
| 22 km East of Mahur berenji, Khoozestan Province | |
| 23 km South of Sardasht, Khoozestan Province | |
| 24 km North West of Jaefarabad, Khoozestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 3 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 41 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 43 km | |
| Number of Phases | 11 |
| RMS | 0.4 |
| Number of Stations | 11 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 169805 | IIEES SC | KHMZ | Z | 0.7 | 1 | 2022-04-14 06:52:45 | 2022-04-16 05:21:00 | n |
| 169806 | IIEES SC | ILBA | Z | 0.1 | 1 | 2022-04-14 06:52:57 | 2022-04-16 05:21:00 | n |
| 169807 | IIEES SC | KLNJ | Z | 0.4 | 1 | 2022-04-14 06:52:58 | 2022-04-16 05:21:00 | n |
| 169808 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-04-14 06:53:01 | 2022-04-16 05:21:00 | n |
| 169809 | IIEES SC | DAMV | Z | 0.08 | 1 | 2022-04-14 06:53:19 | 2022-04-16 05:21:00 | n |
| 169810 | IIEES SC | SRSL | Z | 0.05 | 1 | 2022-04-14 06:53:27 | 2022-04-16 05:21:00 | n |
| 169811 | IIEES SC | YZKH | Z | 0.05 | 1 | 2022-04-14 06:53:28 | 2022-04-16 05:21:00 | n |
| 169812 | IIEES SC | TABS | Z | 0.01 | 1 | 2022-04-14 06:53:58 | 2022-04-16 05:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-04-14 06:52:18 | -0.1 | y | 0 | 30 | 50 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2022-04-14 06:52:45 | 0.9 | y | 0 | 190 | 33 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-04-14 06:52:55 | 0 | y | 0 | 272 | 23 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-04-14 06:52:57 | 0.6 | y | 0 | 289 | 301 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-04-14 06:52:58 | 0 | y | 0 | 295 | 119 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-04-14 06:53:01 | -0.5 | y | 0 | 328 | 42 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-04-14 06:53:03 | -0.6 | y | 0 | 341 | 335 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-04-14 06:53:19 | 0.3 | y | 0 | 468 | 38 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-04-14 06:53:27 | -0.4 | y | 0 | 537 | 324 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-04-14 06:53:28 | -0.1 | y | 0 | 539 | 89 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-04-14 06:53:58 | -0.1 | y | 0 | 786 | 79 | ||
