Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2022-09-02 07:54:30.0 |
| Date & Time (Local) | 1401/6/11 12:24:30.0 |

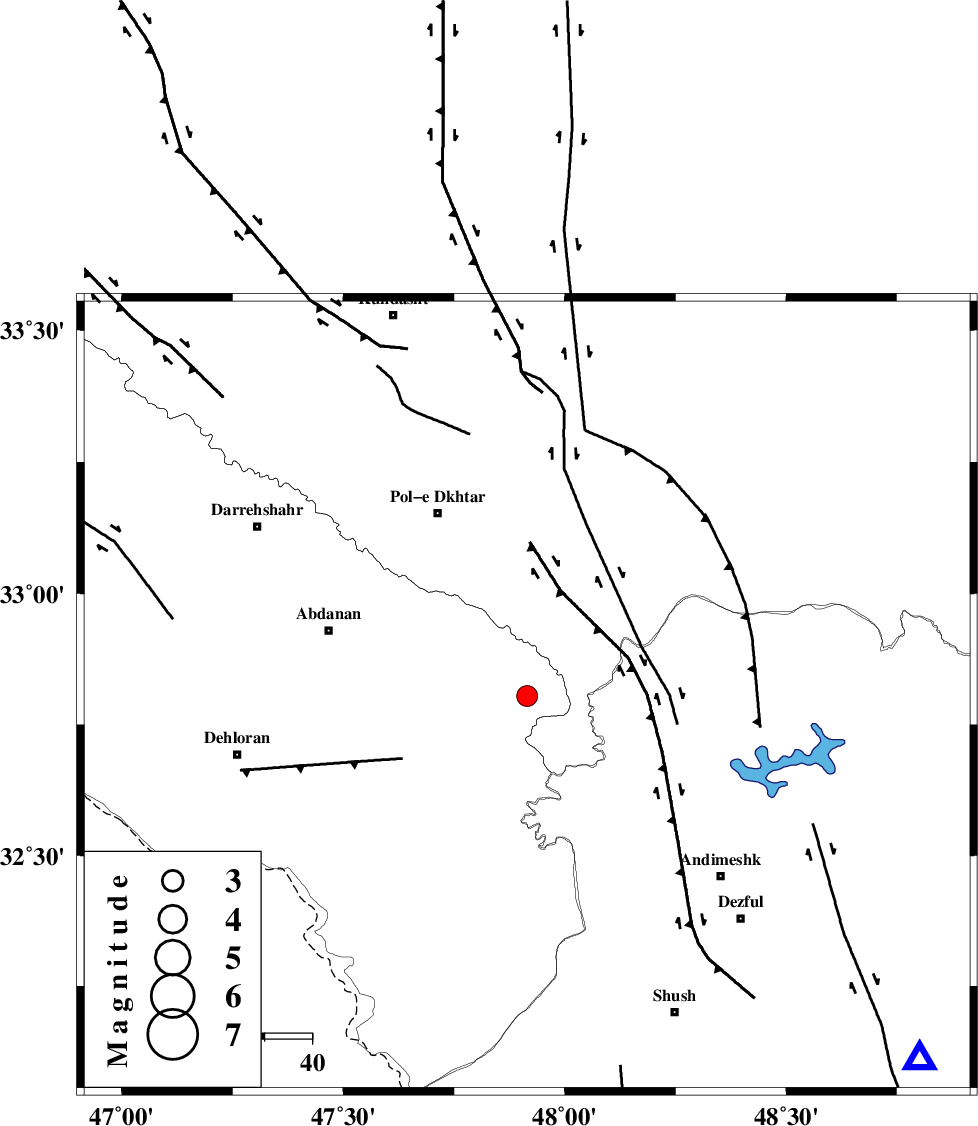

| Location | Lat:32.805 Lon: 47.915 |
| Region | Ilam Province, 43 km South-East of Pol-e dokhtar |
Nearest Cities |
|
| 31 km North West of Bidruyeh, Khoozestan Province | |
| 34 km North West of Hoseinieh, Khoozestan Province | |
| 34 km East of Sarabbagh, Ilam Province | |
| 39 km North West of Sorkhakan, Khoozestan Province | |
| 39 km South East of Sarab hammam, Lorestan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 4 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 14 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 32 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | >14.4 km |
| Error in Longitude | 14.4 km |
| Error in Depth | 39 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173179 | IIEES SC | GTMR | Z | 0.6 | 1 | 2022-09-02 07:54:49 | 2022-09-03 09:11:00 | n |
| 173180 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2022-09-02 07:55:05 | 2022-09-03 09:11:00 | n |
| 173181 | IIEES SC | SRSL | Z | 0.04 | 1 | 2022-09-02 07:55:32 | 2022-09-03 09:11:00 | n |
| 173182 | IIEES SC | CHTH | Z | 0.02 | 1 | 2022-09-02 07:55:33 | 2022-09-03 09:11:00 | n |
| 173183 | IIEES SC | DAMV | Z | 0.04 | 1 | 2022-09-02 07:55:39 | 2022-09-03 09:11:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GTMR | Z | EPg | E | 2022-09-02 07:54:49 | 0 | y | 0 | 118 | 108 | ||
| IIEES SC | ILBA | Z | EPg | E | 2022-09-02 07:54:59 | 0 | y | 0 | 183 | 300 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-09-02 07:55:05 | 0 | y | 0 | 217 | 62 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-09-02 07:55:11 | 0.8 | y | 0 | 259 | 348 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-02 07:55:22 | 0.1 | y | 0 | 360 | 59 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-09-02 07:55:32 | -0.7 | y | 0 | 441 | 329 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-09-02 07:55:33 | -0.8 | y | 0 | 454 | 41 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-09-02 07:55:39 | 0.4 | y | 0 | 488 | 50 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-02 07:55:51 | -4.5 | n | 4 | 628 | 94 | ||
