Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2022-09-04 00:59:46.2 |
| Date & Time (Local) | 1401/6/13 05:29:46.2 |

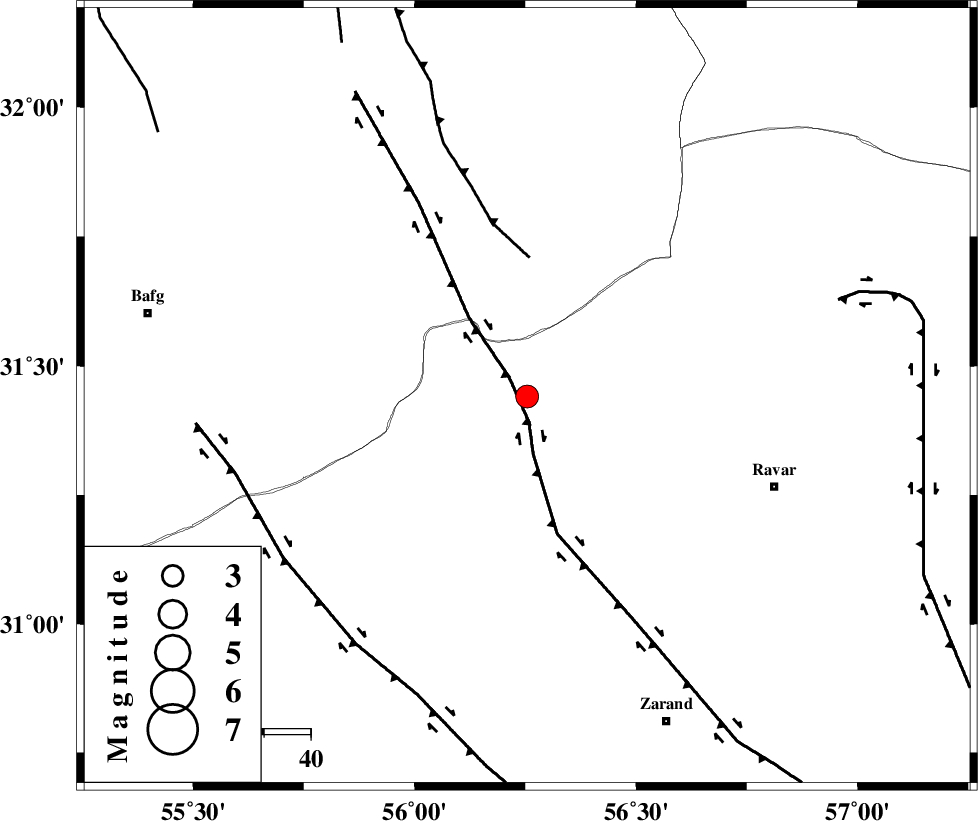

| Location | Lat:31.441 Lon: 56.254 |
| Region | Kerman Province, 56 km North-West of Ravar |
Nearest Cities |
|
| 5 km North of Kuhbanan, Kerman Province | |
| 9 km North of Jor, Kerman Province | |
| 25 km South of Asfih, Yazd Province | |
| 26 km East of Basab, Yazd Province | |
| 36 km North West of Toghroljerd, Kerman Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 5 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 30 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 63 km | |
| Number of Phases | 9 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | >1 km |
| Error in Longitude | 1 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173195 | IIEES SC | YZKH | Z | 0.6 | 1 | 2022-09-04 01:00:17 | 2022-09-04 04:22:00 | n |
| 173196 | IIEES SC | BSRN | Z | 0.2 | 1 | 2022-09-04 01:00:28 | 2022-09-04 04:22:00 | n |
| 173197 | IIEES SC | SHRT | Z | 0.04 | 1 | 2022-09-04 01:00:50 | 2022-09-04 04:22:00 | n |
| 173198 | IIEES SC | BJRD | Z | 0.01 | 1 | 2022-09-04 01:01:21 | 2022-09-04 04:22:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KRBR | Z | EPg | E | 2022-09-04 01:00:14 | 0 | y | 0 | 169 | 163 | ||
| IIEES SC | YZKH | Z | EPg | E | 2022-09-04 01:00:17 | -0.1 | y | 0 | 189 | 304 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-09-04 01:00:25 | -0.6 | y | 0 | 258 | 18 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-09-04 01:00:28 | 0 | y | 0 | 278 | 78 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-04 01:00:49 | 0 | y | 0 | 447 | 264 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-09-04 01:00:50 | 0.1 | y | 0 | 451 | 57 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-09-04 01:00:42 | -14.3 | n | 4 | 507 | 357 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-09-04 01:01:08 | 3.5 | n | 4 | 569 | 42 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-09-04 01:01:21 | 0.4 | y | 0 | 702 | 9 | ||
