Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2022-12-05 05:17:13.6 |
| Date & Time (Local) | 1401/9/14 08:47:13.6 |

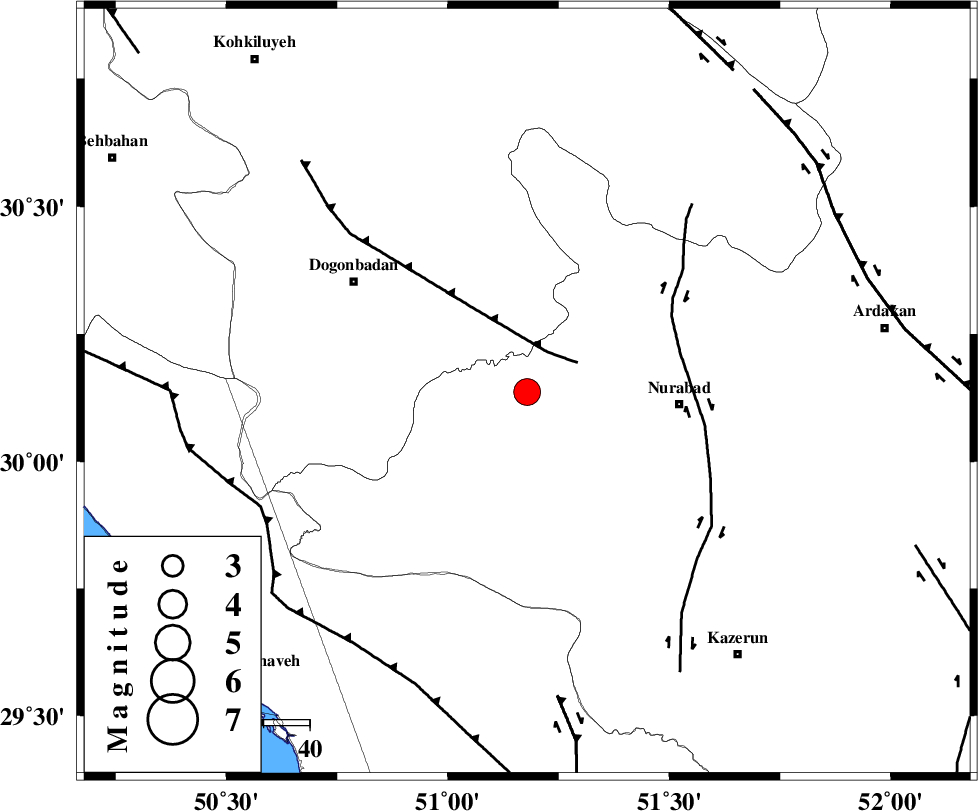

| Location | Lat:30.137 Lon: 51.179 |
| Region | Fars Province, 33 km -West of Nurabad |
Nearest Cities |
|
| 8 km North of Babamonir, Fars Province | |
| 24 km North West of Ahangari, Fars Province | |
| 25 km South of Basht, Kohkiluieh va boyerahmad Province | |
| 25 km South West of Kopon olia, Fars Province | |
| 28 km South West of Dehnumoqimi, Fars Province | |
| Depth | 19 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 10 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 34 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 63 km | |
| Number of Phases | 26 |
| RMS | 0.4 |
| Number of Stations | 26 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176109 | IIEES SC | KLNJ | Z | 5 | 1 | 2022-12-05 05:17:30 | 2022-12-06 05:40:00 | n |
| 176110 | IIEES SC | KHRK | Z | 9 | 1 | 2022-12-05 05:17:34 | 2022-12-06 05:40:00 | n |
| 176111 | IIEES SC | AHRM | Z | 2 | 1 | 2022-12-05 05:17:36 | 2022-12-06 05:40:00 | n |
| 176112 | IIEES SC | GHIR | Z | 0.3 | 1 | 2022-12-05 05:17:53 | 2022-12-06 05:40:00 | n |
| 176113 | IIEES SC | GTMR | Z | 0.9 | 1 | 2022-12-05 05:18:00 | 2022-12-06 05:40:00 | n |
| 176114 | IIEES SC | NASN | Z | 0.5 | 1 | 2022-12-05 05:18:02 | 2022-12-06 05:40:00 | n |
| 176115 | IIEES SC | YZKH | Z | 0.1 | 1 | 2022-12-05 05:18:12 | 2022-12-06 05:40:00 | n |
| 176116 | IIEES SC | KHMZ | Z | 0.2 | 1 | 2022-12-05 05:18:12 | 2022-12-06 05:40:00 | n |
| 176117 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-12-05 05:18:21 | 2022-12-06 05:40:00 | n |
| 176118 | IIEES SC | ASAO | Z | 0.2 | 1 | 2022-12-05 05:18:23 | 2022-12-06 05:40:00 | n |
| 176119 | IIEES SC | KRBR | Z | 0.2 | 1 | 2022-12-05 05:18:28 | 2022-12-06 05:40:00 | n |
| 176120 | IIEES SC | HGHA | Z | 0.09 | 1 | 2022-12-05 05:18:39 | 2022-12-06 05:40:00 | n |
| 176121 | IIEES SC | SNGE | Z | 0.02 | 1 | 2022-12-05 05:18:41 | 2022-12-06 05:40:00 | n |
| 176122 | IIEES SC | TABS | Z | 0.06 | 1 | 2022-12-05 05:18:44 | 2022-12-06 05:40:00 | n |
| 176123 | IIEES SC | KBAM | Z | 0.06 | 1 | 2022-12-05 05:18:49 | 2022-12-06 05:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2022-12-05 05:17:30 | -0.8 | y | 0 | 104 | 22 | ||
| IIEES SC | KHRK | Z | EPg | E | 2022-12-05 05:17:34 | 0.1 | y | 0 | 129 | 221 | ||
| IIEES SC | AHRM | Z | EPg | E | 2022-12-05 05:17:36 | 0.1 | y | 0 | 142 | 175 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-12-05 05:17:53 | -0.6 | y | 0 | 270 | 139 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-12-05 05:18:00 | -0.7 | y | 0 | 325 | 323 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-05 05:18:02 | 0.2 | y | 0 | 333 | 28 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2022-12-05 05:18:12 | 6.5 | n | 4 | 366 | 148 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-05 05:18:12 | 0.8 | y | 0 | 410 | 52 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-12-05 05:18:12 | 0.1 | y | 0 | 416 | 344 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-12-05 05:18:21 | 0.7 | y | 0 | 482 | 1 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-12-05 05:18:23 | 0.3 | y | 0 | 501 | 347 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-12-05 05:18:28 | 0.2 | y | 0 | 538 | 92 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-12-05 05:18:33 | -3.3 | n | 4 | 609 | 309 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-12-05 05:18:39 | 0.2 | y | 0 | 632 | 340 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-12-05 05:18:41 | -0.9 | y | 0 | 657 | 327 | ||
| IIEES SC | DHR | Z | EPn | E | 2022-12-05 05:18:44 | -1 | y | 0 | 678 | 318 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-12-05 05:18:44 | -0.8 | y | 0 | 684 | 55 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-05 05:18:49 | 0.1 | y | 0 | 713 | 99 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-05 05:18:54 | 0.7 | y | 0 | 748 | 19 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-05 05:18:52 | -6.6 | n | 4 | 792 | 35 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-05 05:19:01 | 0.3 | y | 0 | 805 | 25 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-12-05 05:19:07 | -0.7 | y | 0 | 861 | 321 | ||
| IIEES SC | RAYN | Z | EPn | E | 2022-12-05 05:19:10 | -5.5 | n | 4 | 925 | 218 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-05 05:19:19 | 0.3 | y | 0 | 950 | 29 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-12-05 05:19:28 | 0.9 | y | 0 | 1018 | 34 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-05 05:19:35 | 1.5 | n | 4 | 1069 | 53 | ||
