Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2022-12-24 06:19:09.0 |
| Date & Time (Local) | 1401/10/3 09:49:09.0 |
| Location | Lat:31.51 Lon: 57.34 |
| Region | Kerman Province, 57 km North-East of Ravar |
Nearest Cities |
|
| 56 km North East of Dehali, Kerman Province | |
| 57 km North East of Ravar, Kerman Province | |
| 73 km South West of Hoz-e qorban, Yazd Province | |
| 88 km North East of Ahmadi, Kerman Province | |
| 89 km North East of Dasht-e khak, Kerman Province | |
| Depth | 10 km |
| Agency | |

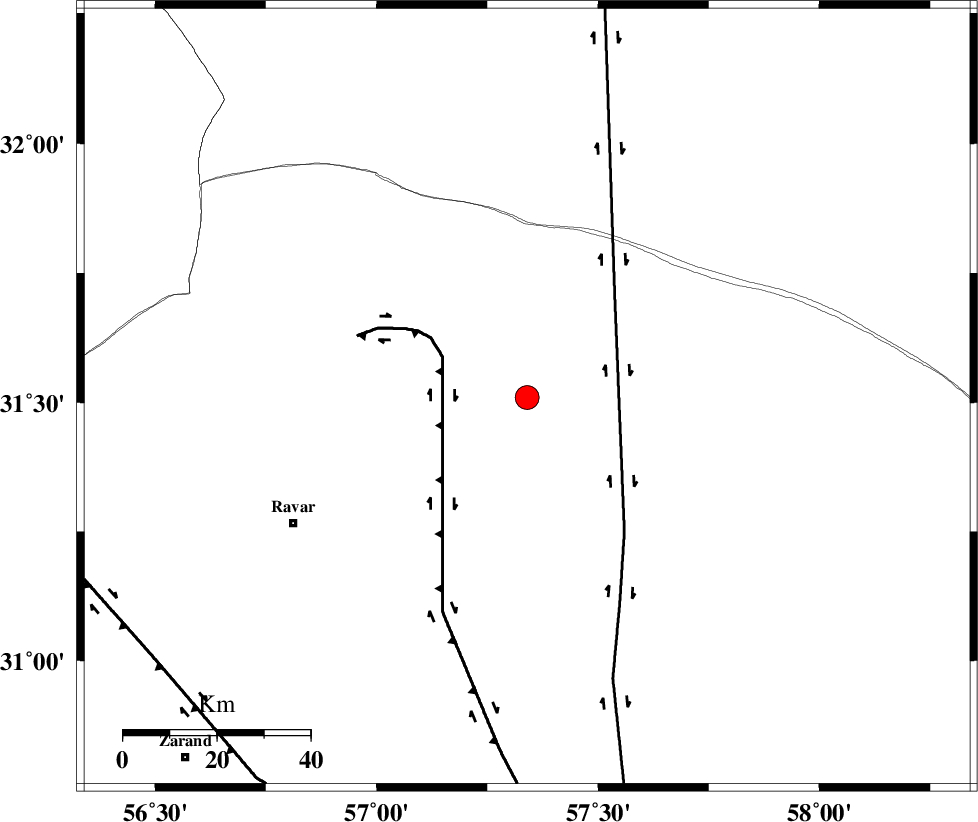

Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 20 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 30 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 98 km | |
| Number of Phases | 11 |
| RMS | 0.7 |
| Number of Stations | 11 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 12.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176868 | IIEES SC | BSRN | Z | 0.7 | 1 | 2022-12-24 06:19:38 | 2022-12-24 08:30:00 | n |
| 176869 | IIEES SC | KRBR | Z | 1 | 1 | 2022-12-24 06:19:39 | 2022-12-24 08:30:00 | n |
| 176870 | IIEES SC | TABS | Z | 0.8 | 1 | 2022-12-24 06:19:45 | 2022-12-24 08:30:00 | n |
| 176871 | IIEES SC | YZKH | Z | 0.3 | 1 | 2022-12-24 06:19:50 | 2022-12-24 08:30:00 | n |
| 176872 | IIEES SC | KBAM | Z | 0.4 | 1 | 2022-12-24 06:19:51 | 2022-12-24 08:30:00 | n |
| 176873 | IIEES SC | TAFT | Z | 0.3 | 1 | 2022-12-24 06:19:54 | 2022-12-24 08:30:00 | n |
| 176874 | IIEES SC | KKHK | Z | 0.5 | 1 | 2022-12-24 06:19:56 | 2022-12-24 08:30:00 | n |
| 176875 | IIEES SC | SHRT | Z | 0.05 | 1 | 2022-12-24 06:20:02 | 2022-12-24 08:30:00 | n |
| 176876 | IIEES SC | ZHSF | Z | 0.04 | 1 | 2022-12-24 06:20:05 | 2022-12-24 08:30:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BSRN | Z | EPg | E | 2022-12-24 06:19:38 | 0.3 | y | 0 | 177 | 73 | ||
| IIEES SC | KRBR | Z | EPg | E | 2022-12-24 06:19:39 | 1.3 | y | 0 | 178 | 198 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-12-24 06:19:45 | -0.8 | y | 0 | 238 | 355 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-24 06:19:49 | -0.3 | y | 0 | 260 | 267 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-24 06:19:50 | -0.9 | y | 0 | 278 | 291 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-24 06:19:51 | -0.8 | y | 0 | 284 | 158 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-24 06:19:54 | 0 | y | 0 | 302 | 274 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-12-24 06:19:56 | 0.4 | y | 0 | 316 | 23 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-24 06:20:02 | 0.4 | y | 0 | 365 | 49 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-12-24 06:20:05 | 0.1 | y | 0 | 390 | 123 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-24 06:20:14 | -6.5 | n | 4 | 514 | 346 | ||
