Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2023-02-20 07:39:19.6 |
| Date & Time (Local) | 1401/12/1 11:09:19.6 |

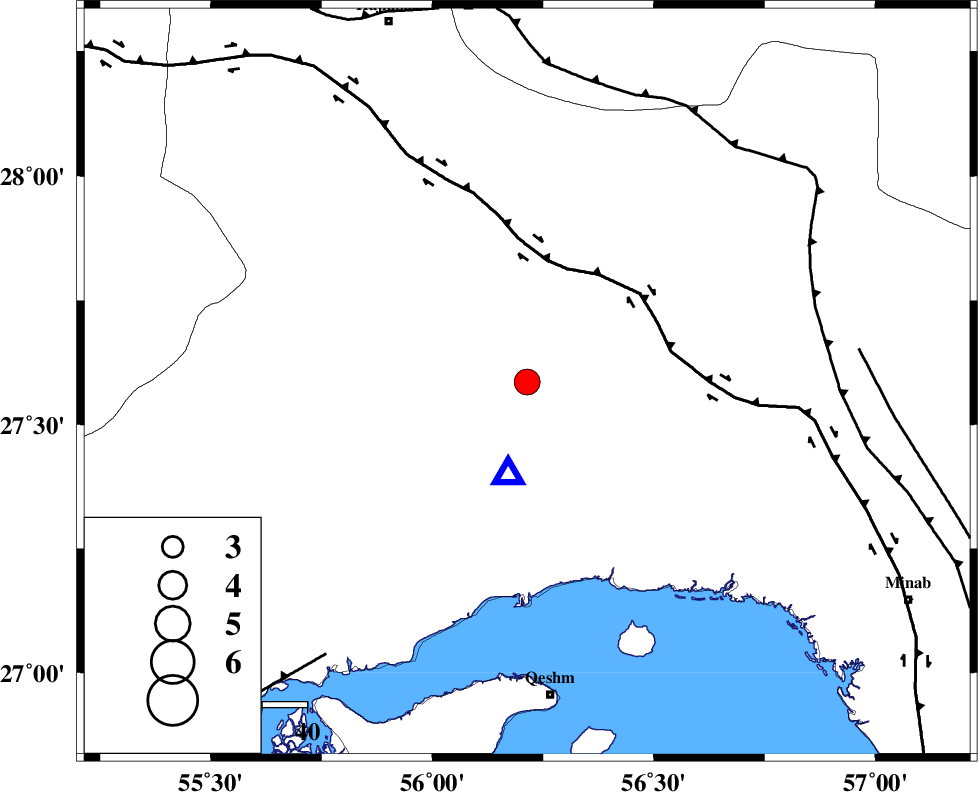

| Location | Lat:27.586 Lon: 56.214 |
| Region | Hormozgan Province, 45 km North of Bandar-e abbas |
Nearest Cities |
|
| 31 km East of Fin, Hormozgan Province | |
| 45 km North of Bandar-e abbas, Hormozgan Province | |
| 48 km South of Fareqan, Hormozgan Province | |
| 70 km North of Qeshm, Hormozgan Province | |
| 84 km South East of Darz, Fars Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 27 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 66 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 74 km | |
| Number of Phases | 27 |
| RMS | 0.4 |
| Number of Stations | 27 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 1.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179216 | IIEES SC | BNDS | Z | 70 | 1 | 2023-02-20 07:39:23 | 2023-02-20 09:37:00 | n |
| 179217 | IIEES SC | JSSH | Z | 1 | 1 | 2023-02-20 07:39:55 | 2023-02-20 09:37:00 | n |
| 179218 | IIEES SC | KRBR | Z | 0.8 | 1 | 2023-02-20 07:40:01 | 2023-02-20 09:37:00 | n |
| 179219 | IIEES SC | KBAM | Z | 0.8 | 1 | 2023-02-20 07:40:02 | 2023-02-20 09:37:00 | n |
| 179220 | IIEES SC | UOSS | Z | 0.2 | 1 | 2023-02-20 07:40:03 | 2023-02-20 09:37:00 | n |
| 179221 | IIEES SC | LMD1 | Z | 0.8 | 1 | 2023-02-20 07:40:05 | 2023-02-20 09:37:00 | n |
| 179222 | IIEES SC | CHBR | Z | 0.2 | 1 | 2023-02-20 07:40:26 | 2023-02-20 09:37:00 | n |
| 179223 | IIEES SC | TAFT | Z | 0.07 | 1 | 2023-02-20 07:40:30 | 2023-02-20 09:37:00 | n |
| 179224 | IIEES SC | AHRM | Z | 0.05 | 1 | 2023-02-20 07:40:30 | 2023-02-20 09:37:00 | n |
| 179225 | IIEES SC | YZKH | Z | 0.04 | 1 | 2023-02-20 07:40:37 | 2023-02-20 09:37:00 | n |
| 179226 | IIEES SC | KLNJ | Z | 0.08 | 1 | 2023-02-20 07:40:41 | 2023-02-20 09:37:00 | n |
| 179227 | IIEES SC | SRVN | Z | 0.02 | 1 | 2023-02-20 07:40:43 | 2023-02-20 09:37:00 | n |
| 179228 | IIEES SC | NASN | Z | 0.03 | 1 | 2023-02-20 07:40:50 | 2023-02-20 09:37:00 | n |
| 179229 | IIEES SC | TABS | Z | 0.04 | 1 | 2023-02-20 07:40:52 | 2023-02-20 09:37:00 | n |
| 179230 | IIEES SC | KKHK | Z | 0.07 | 1 | 2023-02-20 07:41:03 | 2023-02-20 09:37:00 | n |
| 179231 | IIEES SC | SHRT | Z | 0.01 | 1 | 2023-02-20 07:41:04 | 2023-02-20 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BNDS | Z | EPg | E | 2023-02-20 07:39:23 | 0 | y | 0 | 21 | 192 | ||
| IIEES SC | JSSH | Z | EPn | E | 2023-02-20 07:39:55 | 0.6 | y | 0 | 219 | 148 | ||
| IIEES SC | KRBR | Z | EPn | E | 2023-02-20 07:40:01 | 0.2 | y | 0 | 271 | 11 | ||
| IIEES SC | KBAM | Z | EPn | E | 2023-02-20 07:40:02 | 0.1 | y | 0 | 279 | 52 | ||
| IIEES SC | UOSS | Z | EPn | E | 2023-02-20 07:40:03 | -0.4 | y | 0 | 292 | 180 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2023-02-20 07:40:05 | 0.6 | y | 0 | 303 | 265 | ||
| IIEES SC | GHIR | Z | EPn | E | 2023-02-20 07:40:08 | 0.1 | y | 0 | 327 | 284 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-02-20 07:40:24 | 0.7 | y | 0 | 449 | 340 | ||
| IIEES SC | CHBR | Z | EPn | E | 2023-02-20 07:40:26 | -0.4 | y | 0 | 479 | 117 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2023-02-20 07:40:29 | 0 | y | 0 | 499 | 63 | ||
| IIEES SC | TAFT | Z | EPn | E | 2023-02-20 07:40:30 | 0 | y | 0 | 499 | 337 | ||
| IIEES SC | AHRM | Z | EPn | E | 2023-02-20 07:40:30 | -0.2 | y | 0 | 503 | 286 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-02-20 07:40:37 | 0.3 | y | 0 | 555 | 344 | ||
| IIEES SC | BSRN | Z | EPn | E | 2023-02-20 07:40:37 | 0.4 | y | 0 | 561 | 30 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-02-20 07:40:41 | 0 | y | 0 | 588 | 310 | ||
| IIEES SC | SRVN | Z | EPn | E | 2023-02-20 07:40:43 | -0.4 | y | 0 | 611 | 92 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-02-20 07:40:50 | -0.4 | y | 0 | 664 | 330 | ||
| IIEES SC | TABS | Z | EPn | E | 2023-02-20 07:40:52 | 0 | y | 0 | 678 | 7 | ||
| IIEES SC | KKHK | Z | EPn | E | 2023-02-20 07:41:03 | 0.4 | y | 0 | 762 | 18 | ||
| IIEES SC | SHRT | Z | EPn | E | 2023-02-20 07:41:04 | -0.3 | y | 0 | 777 | 30 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-02-20 07:41:14 | -1.5 | y | 0 | 873 | 308 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-02-20 07:41:28 | -0.2 | y | 0 | 972 | 323 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-02-20 07:41:34 | 0.4 | y | 0 | 1014 | 347 | ||
| IIEES SC | RAYN | Z | EPn | E | 2023-02-20 07:41:48 | -4.4 | n | 4 | 1167 | 247 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-20 07:41:52 | -1.1 | y | 0 | 1170 | 305 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-20 07:41:52 | -2.8 | n | 4 | 1185 | 315 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-20 07:41:59 | -1 | y | 0 | 1225 | 310 | ||
