Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2021-04-20 09:59:20.3 |
| Date & Time (Local) | 1400/1/31 14:29:20.3 |

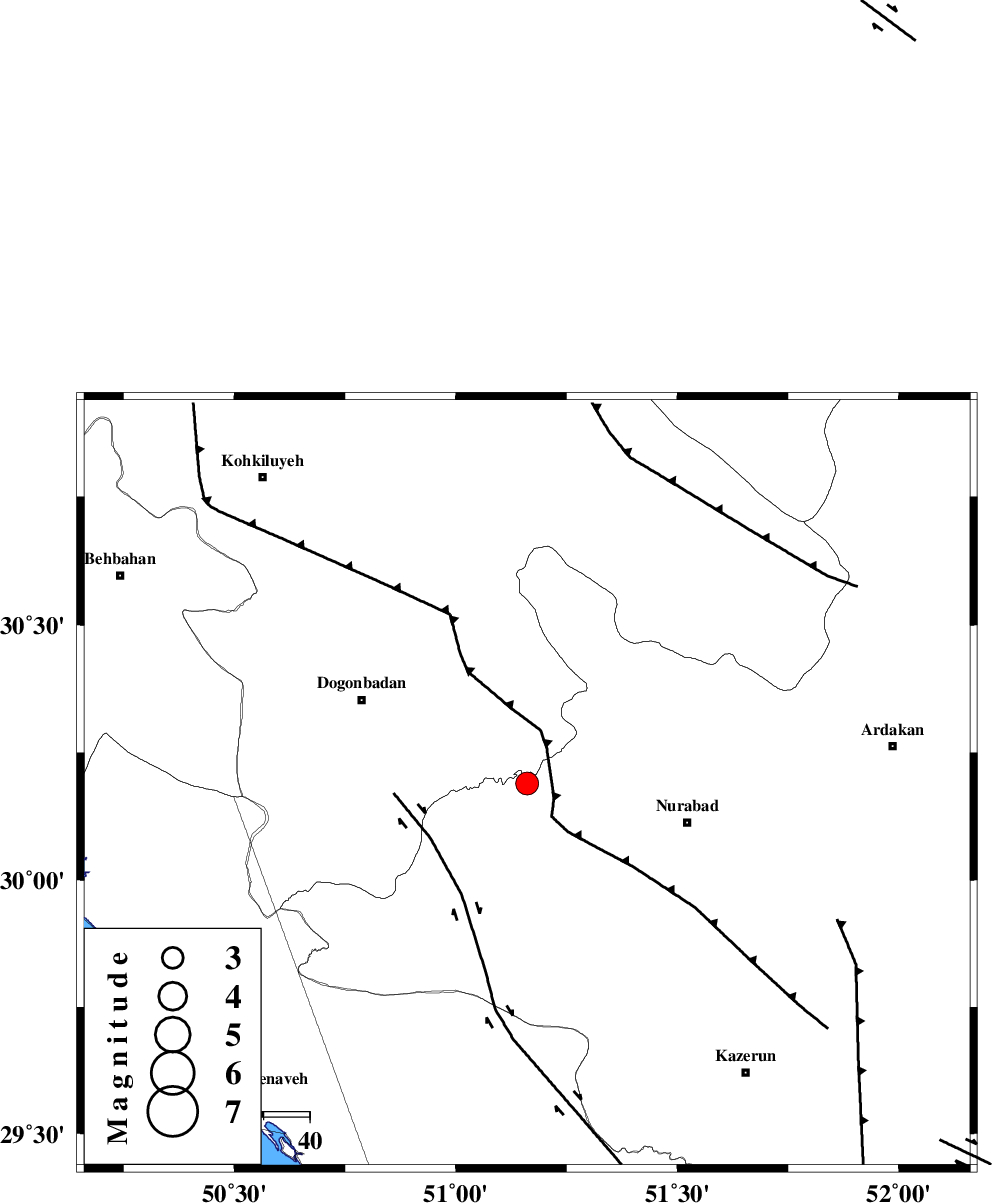

| Location | Lat:30.189 Lon: 51.161 |
| Region | Fars Province, 36 km -West of Nurabad |
Nearest Cities |
|
| 14 km North of Babamonir, Fars Province | |
| 19 km South of Basht, Kohkiluieh va boyerahmad Province | |
| 21 km South West of Kopon olia, Fars Province | |
| 25 km South West of Dehnumoqimi, Fars Province | |
| 26 km North West of Ahangari, Fars Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 7 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 35 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 64 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 9.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186450 | IIEES SC | KLNJ | Z | 0.9 | 1 | 2021-04-20 09:59:38 | 2023-09-11 06:44:00 | n |
| 186451 | IIEES SC | AHRM | Z | 0.6 | 1 | 2021-04-20 09:59:44 | 2023-09-11 06:44:00 | n |
| 186452 | IIEES SC | GTMR | Z | 0.1 | 1 | 2021-04-20 10:00:08 | 2023-09-11 06:44:00 | n |
| 186453 | IIEES SC | YZKH | Z | 0.02 | 1 | 2021-04-20 10:00:19 | 2023-09-11 06:44:00 | n |
| 186454 | IIEES SC | ASAO | Z | 0.03 | 1 | 2021-04-20 10:00:29 | 2023-09-11 06:44:00 | n |
| 186455 | IIEES SC | KRBR | Z | 0.03 | 1 | 2021-04-20 10:00:34 | 2023-09-11 06:44:00 | n |
| 186456 | IIEES SC | DHR | Z | 0.04 | 1 | 2021-04-20 10:00:50 | 2023-09-11 06:44:00 | n |
| 186457 | IIEES SC | TABS | Z | 0.02 | 1 | 2021-04-20 10:00:52 | 2023-09-11 06:44:00 | n |
| 186458 | IIEES SC | KBAM | Z | 0.03 | 1 | 2021-04-20 10:00:56 | 2023-09-11 06:44:00 | n |
| 186459 | IIEES SC | SHRO | Z | 0.008 | 1 | 2021-04-20 10:01:06 | 2023-09-11 06:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2021-04-20 09:59:38 | 0.9 | y | 0 | 100 | 24 | ||
| IIEES SC | AHRM | Z | EPg | E | 2021-04-20 09:59:44 | 0.3 | y | 0 | 147 | 175 | ||
| IIEES SC | GHIR | Z | EPn | E | 2021-04-20 10:00:01 | -0.9 | y | 0 | 276 | 140 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-04-20 10:00:08 | 0.2 | y | 0 | 319 | 322 | ||
| IIEES SC | NASN | Z | EPn | E | 2021-04-20 10:00:10 | 0.6 | y | 0 | 329 | 28 | ||
| IIEES SC | MEH | Z | EPn | E | 2021-04-20 10:00:13 | 0.4 | y | 0 | 356 | 68 | ||
| IIEES SC | YZKH | Z | EPn | E | 2021-04-20 10:00:19 | 0.5 | y | 0 | 408 | 53 | ||
| IIEES SC | ASAO | Z | EPn | E | 2021-04-20 10:00:29 | 0 | y | 0 | 495 | 348 | ||
| IIEES SC | KRBR | Z | EPn | E | 2021-04-20 10:00:34 | -1 | y | 0 | 540 | 92 | ||
| IIEES SC | DHR | Z | EPn | E | 2021-04-20 10:00:50 | -1.1 | y | 0 | 672 | 318 | ||
| IIEES SC | TABS | Z | EPn | E | 2021-04-20 10:00:52 | -0.2 | y | 0 | 682 | 56 | ||
| IIEES SC | KBAM | Z | EPn | E | 2021-04-20 10:00:56 | -1 | y | 0 | 716 | 99 | ||
| IIEES SC | GLO | Z | EPn | E | 2021-04-20 10:01:01 | 0.9 | y | 0 | 743 | 20 | ||
| IIEES SC | UOSS | Z | EPn | E | 2021-04-20 10:00:56 | -7.1 | n | 4 | 765 | 139 | ||
| IIEES SC | SHRO | Z | EPn | E | 2021-04-20 10:01:06 | -0.2 | y | 0 | 788 | 35 | ||
| IIEES SC | ABGH | Z | EPn | E | 2021-04-20 10:01:08 | 0.9 | y | 0 | 801 | 25 | ||
