Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2024-01-09 01:58:43.5 |
| Date & Time (Local) | 1402/10/19 05:28:43.5 |

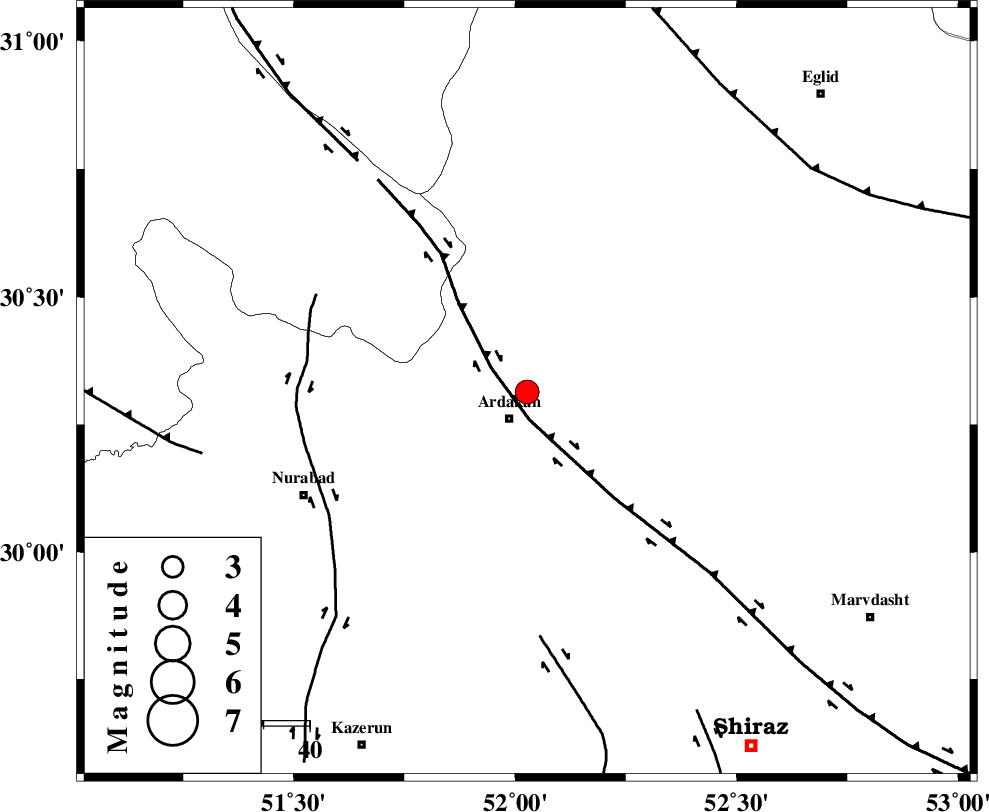

| Location | Lat:30.314 Lon: 52.027 |
| Region | Fars Province, 7 km of Ardakan |
Nearest Cities |
|
| 7 km North of Ardakan, Fars Province | |
| 11 km North of Bahrghan, Fars Province | |
| 20 km South East of Kamhar, Fars Province | |
| 36 km West of Bekan, Fars Province | |
| 40 km North West of Dorudzan, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| HZF3 (Length: 197 km) , Distance to epicenter: 6 km | |
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 48 km | |
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 53 km | |
| Number of Phases | 17 |
| RMS | 0.3 |
| Number of Stations | 17 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 3.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 190176 | IIEES SC | KLNJ | Z | 2 | 1 | 2024-01-09 01:58:58 | 2024-01-09 07:33:00 | n |
| 190177 | IIEES SC | TAFT | Z | 0.2 | 1 | 2024-01-09 01:59:22 | 2024-01-09 07:33:00 | n |
| 190178 | IIEES SC | YZKH | Z | 0.06 | 1 | 2024-01-09 01:59:32 | 2024-01-09 07:33:00 | n |
| 190179 | IIEES SC | LMD1 | Z | 0.4 | 1 | 2024-01-09 01:59:34 | 2024-01-09 07:33:00 | n |
| 190180 | IIEES SC | GHVR | Z | 0.05 | 1 | 2024-01-09 01:59:49 | 2024-01-09 07:33:00 | n |
| 190181 | IIEES SC | ASAO | Z | 0.04 | 1 | 2024-01-09 01:59:53 | 2024-01-09 07:33:00 | n |
| 190182 | IIEES SC | TABS | Z | 0.02 | 1 | 2024-01-09 02:00:05 | 2024-01-09 07:33:00 | n |
| 190183 | IIEES SC | CHTH | Z | 0.02 | 1 | 2024-01-09 02:00:09 | 2024-01-09 07:33:00 | n |
| 190184 | IIEES SC | HGHA | Z | 0.02 | 1 | 2024-01-09 02:00:11 | 2024-01-09 07:33:00 | n |
| 190185 | IIEES SC | GLO | Z | 0.04 | 1 | 2024-01-09 02:00:19 | 2024-01-09 07:33:00 | n |
| 190186 | IIEES SC | JSSH | Z | 0.06 | 1 | 2024-01-09 02:00:20 | 2024-01-09 07:33:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | KLNJ | Z | EPg | E | 2024-01-09 01:58:58 | 0.1 | y | 0 | 88 | 332 | ||
| IIEES SC | TAFT | Z | EPn | E | 2024-01-09 01:59:22 | -0.5 | y | 0 | 257 | 53 | ||
| IIEES SC | MEH | Z | EPn | E | 2024-01-09 01:59:25 | 0.1 | y | 0 | 275 | 64 | ||
| IIEES SC | NASN | Z | EPn | E | 2024-01-09 01:59:26 | -0.3 | y | 0 | 285 | 15 | ||
| IIEES SC | YZKH | Z | EPn | E | 2024-01-09 01:59:32 | -0.2 | y | 0 | 335 | 47 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2024-01-09 01:59:34 | -0.3 | y | 0 | 348 | 161 | ||
| IIEES SC | KRBR | Z | EPn | E | 2024-01-09 01:59:41 | -6.6 | n | 4 | 458 | 95 | ||
| IIEES SC | GHVR | Z | EPn | E | 2024-01-09 01:59:49 | 0.1 | y | 0 | 468 | 351 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-01-09 01:59:53 | -0.4 | y | 0 | 506 | 338 | ||
| IIEES SC | TABS | Z | EPn | E | 2024-01-09 02:00:05 | -0.8 | y | 0 | 607 | 52 | ||
| IIEES SC | CHTH | Z | EPn | E | 2024-01-09 02:00:09 | 0.3 | y | 0 | 626 | 352 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-01-09 02:00:10 | -0.5 | y | 0 | 640 | 339 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-01-09 02:00:11 | 0.2 | y | 0 | 646 | 333 | ||
| IIEES SC | GLO | Z | EPn | E | 2024-01-09 02:00:19 | 0.1 | y | 0 | 706 | 14 | ||
| IIEES SC | JSSH | Z | EPn | E | 2024-01-09 02:00:20 | 0.5 | y | 0 | 718 | 133 | ||
| IIEES SC | DHR | Z | EPn | E | 2024-01-09 02:00:19 | -0.7 | n | 4 | 719 | 313 | ||
| IIEES SC | UOSS | Z | EPn | E | 2024-01-09 02:00:10 | -10.4 | n | 4 | 724 | 145 | ||
