Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2024-05-03 19:21:35.8 |
| Date & Time (Local) | 1403/2/14 22:51:35.8 |

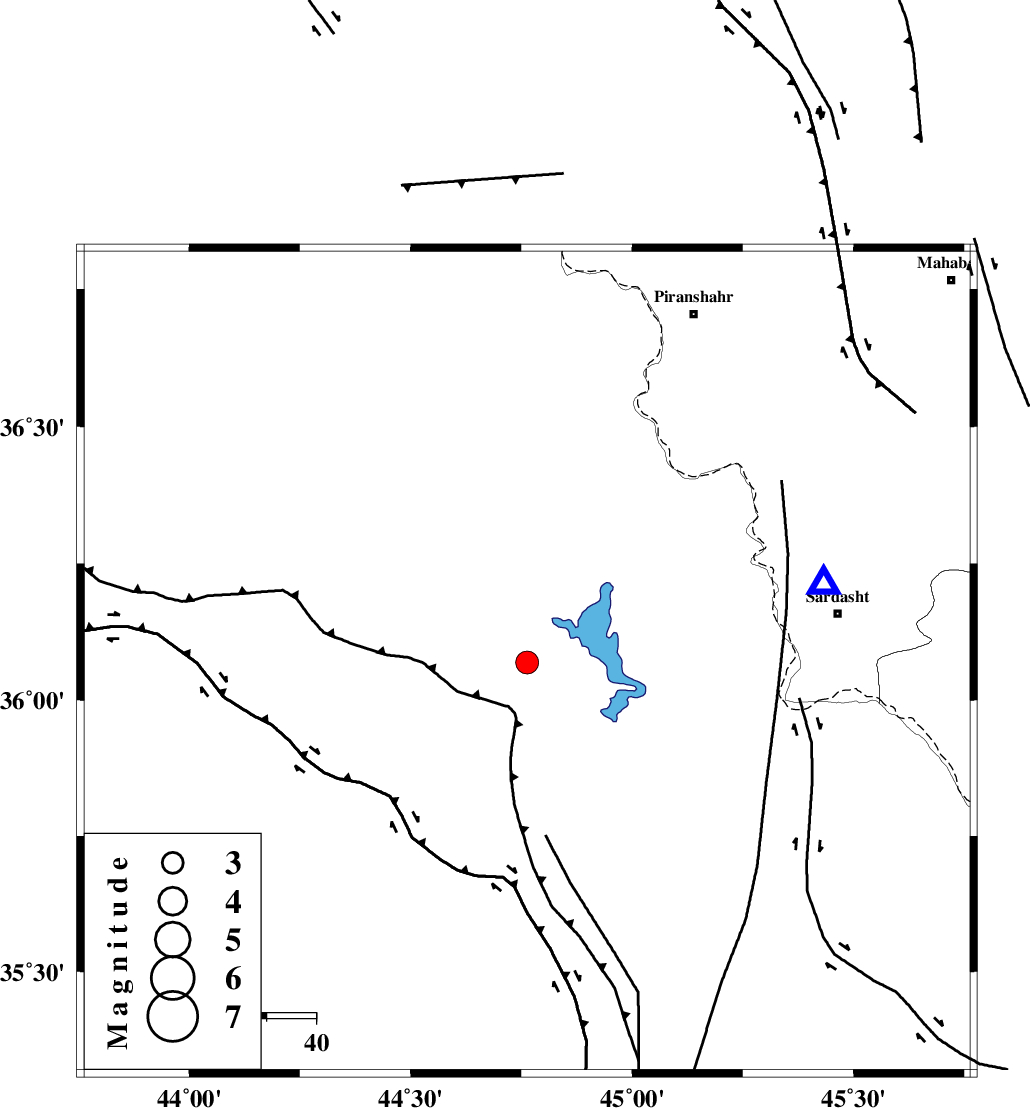

| Location | Lat:36.069 Lon: 44.763 |
| Region | Iraq, 64 km -West of Sardasht |
Nearest Cities |
|
| 57 km South West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 64 km West of Sardasht, Azarbaijan Gharbi Province | |
| 65 km South West of Mirabad, Azarbaijan Gharbi Province | |
| 67 km South West of Felas, Azarbaijan Gharbi Province | |
| 69 km South West of Kavir, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 67 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 97 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 9 |
| Error in Latitude | >6.1 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 750.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 192715 | IIEES SC | KCHF | Z | 0.3 | 1 | 2024-05-03 19:22:20 | 2024-05-05 08:20:00 | n |
| 192716 | IIEES SC | GURO | Z | 0.08 | 1 | 2024-05-03 19:22:29 | 2024-05-05 08:20:00 | n |
| 192717 | IIEES SC | ASAO | Z | 0.02 | 1 | 2024-05-03 19:22:46 | 2024-05-05 08:20:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DHR | Z | EPn | E | 2024-05-03 19:22:09 | -0.3 | y | 0 | 212 | 136 | ||
| IIEES SC | KCHF | Z | EPn | E | 2024-05-03 19:22:20 | 1.1 | y | 0 | 288 | 134 | ||
| IIEES SC | MRD | Z | EPn | E | 2024-05-03 19:22:23 | 1.9 | n | 4 | 305 | 16 | ||
| IIEES SC | MAKU | Z | EPn | E | 2024-05-03 19:22:29 | 0 | y | 0 | 365 | 359 | ||
| IIEES SC | GURO | Z | EPn | E | 2024-05-03 19:22:29 | -0.1 | y | 0 | 367 | 319 | ||
| IIEES SC | HGHA | Z | EPn | E | 2024-05-03 19:22:32 | 1.9 | n | 4 | 376 | 100 | ||
| IIEES SC | GRMI | Z | EPn | E | 2024-05-03 19:22:43 | 8.7 | n | 4 | 411 | 42 | ||
| IIEES SC | QABG | Z | EPn | E | 2024-05-03 19:22:38 | 0.3 | y | 0 | 437 | 95 | ||
| IIEES SC | ASAO | Z | EPn | E | 2024-05-03 19:22:46 | -0.7 | y | 0 | 508 | 109 | ||
