Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-08-27 14:11:10.4 |
| Date & Time (Local) | 1399/6/6 18:41:10.4 |

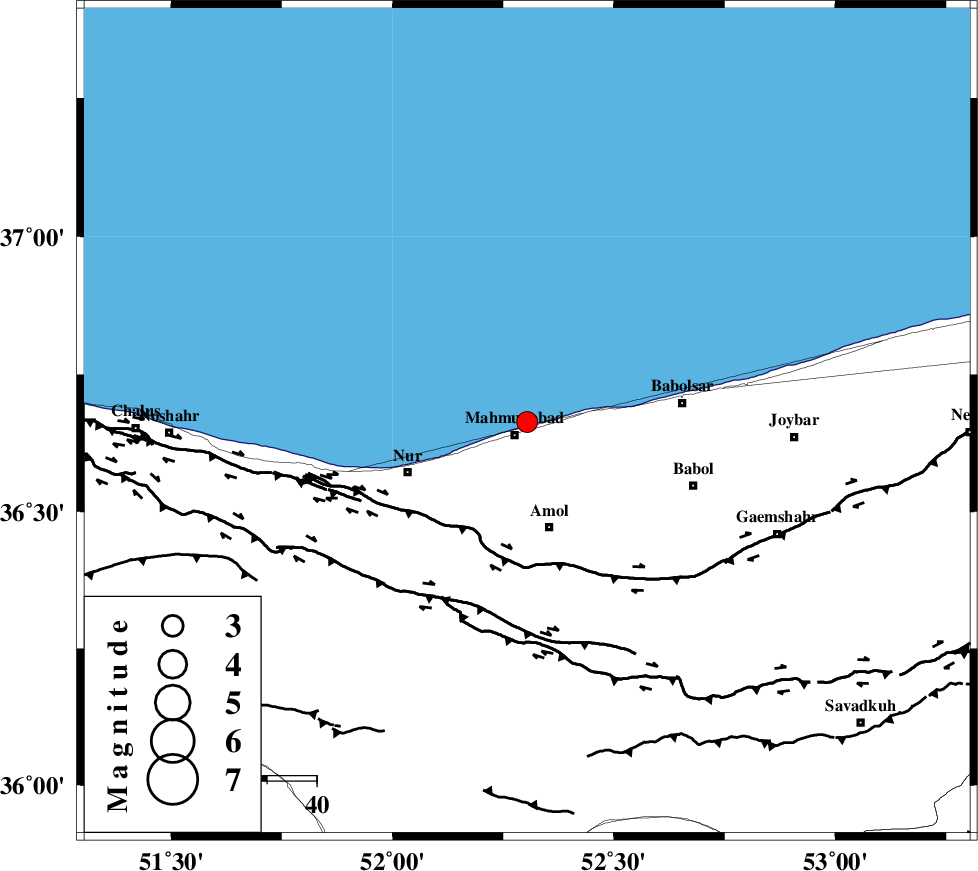

| Location | Lat:36.663 Lon: 52.304 |
| Region | Caspian Sea, 4 km of Mahmud Abad |
Nearest Cities |
|
| 4 km North of Mahmud Abad, Mazandaran Province | |
| 6 km North of Bisheh kola, Mazandaran Province | |
| 8 km North of Azadmun, Mazandaran Province | |
| 15 km West of Sorkhrud, Mazandaran Province | |
| 15 km North West of Kargard-e mahalleh, Mazandaran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 25 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 40 km | |
| KOJOOR (Length: 75 km) , Distance to epicenter: 63 km | |
| Number of Phases | 14 |
| RMS | 0.6 |
| Number of Stations | 14 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 14.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194388 | IIEES SC | DAMV | Z | 0.5 | 1 | 2020-08-27 14:11:29 | 2024-08-14 09:08:00 | n |
| 194389 | IIEES SC | THKV | Z | 0.7 | 1 | 2020-08-27 14:11:36 | 2024-08-14 09:08:00 | n |
| 194390 | IIEES SC | GIDE | Z | 0.4 | 1 | 2020-08-27 14:11:46 | 2024-08-14 09:08:00 | n |
| 194391 | IIEES SC | ZNJK | Z | 0.04 | 1 | 2020-08-27 14:11:58 | 2024-08-14 09:08:00 | n |
| 194392 | IIEES SC | MRVT | Z | 0.07 | 1 | 2020-08-27 14:12:01 | 2024-08-14 09:08:00 | n |
| 194393 | IIEES SC | NASN | Z | 0.02 | 1 | 2020-08-27 14:12:11 | 2024-08-14 09:08:00 | n |
| 194394 | IIEES SC | GRMI | Z | 0.03 | 1 | 2020-08-27 14:12:14 | 2024-08-14 09:08:00 | n |
| 194395 | IIEES SC | SNGE | Z | 0.01 | 1 | 2020-08-27 14:12:18 | 2024-08-14 09:08:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | EPg | E | 2020-08-27 14:11:29 | -0.6 | y | 0 | 118 | 195 | ||
| IIEES SC | CHTH | Z | EPg | E | 2020-08-27 14:11:32 | -0.5 | y | 0 | 135 | 232 | ||
| IIEES SC | THKV | Z | EPg | E | 2020-08-27 14:11:36 | 0.9 | y | 0 | 153 | 237 | ||
| IIEES SC | ABGH | Z | EPn | E | 2020-08-27 14:11:46 | -0.1 | y | 0 | 223 | 88 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-08-27 14:11:46 | 0.3 | y | 0 | 223 | 277 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-08-27 14:11:57 | -0.3 | y | 0 | 313 | 221 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-08-27 14:11:58 | -0.6 | y | 0 | 324 | 270 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-08-27 14:12:01 | 0.9 | y | 0 | 341 | 102 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-27 14:12:01 | -0.9 | y | 0 | 354 | 72 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-27 14:12:07 | 0.8 | y | 0 | 388 | 213 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-08-27 14:12:11 | -0.4 | y | 0 | 431 | 174 | ||
| IIEES SC | GRMI | Z | EPn | E | 2020-08-27 14:12:14 | -0.2 | y | 0 | 456 | 301 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-08-27 14:12:16 | 0.2 | y | 0 | 468 | 76 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-08-27 14:12:18 | 0.3 | y | 0 | 480 | 249 | ||
