Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2020-08-27 17:34:02.7 |
| Date & Time (Local) | 1399/6/6 22:04:02.7 |
| Location | Lat:36.576 Lon: 56.751 |
| Region | Semnan Province, 53 km South-East of Jajarm |
Nearest Cities |
|
| 8 km North of Frumad, Semnan Province | |
| 21 km West of Dasturan, Khorasan(center) Province | |
| 26 km South of Farashiyan, Khorasan(center) Province | |
| 28 km North West of Davarzan, Khorasan(center) Province | |
| 28 km West of Jogtay, Khorasan(center) Province | |
| Depth | 12 km |
| Agency | |

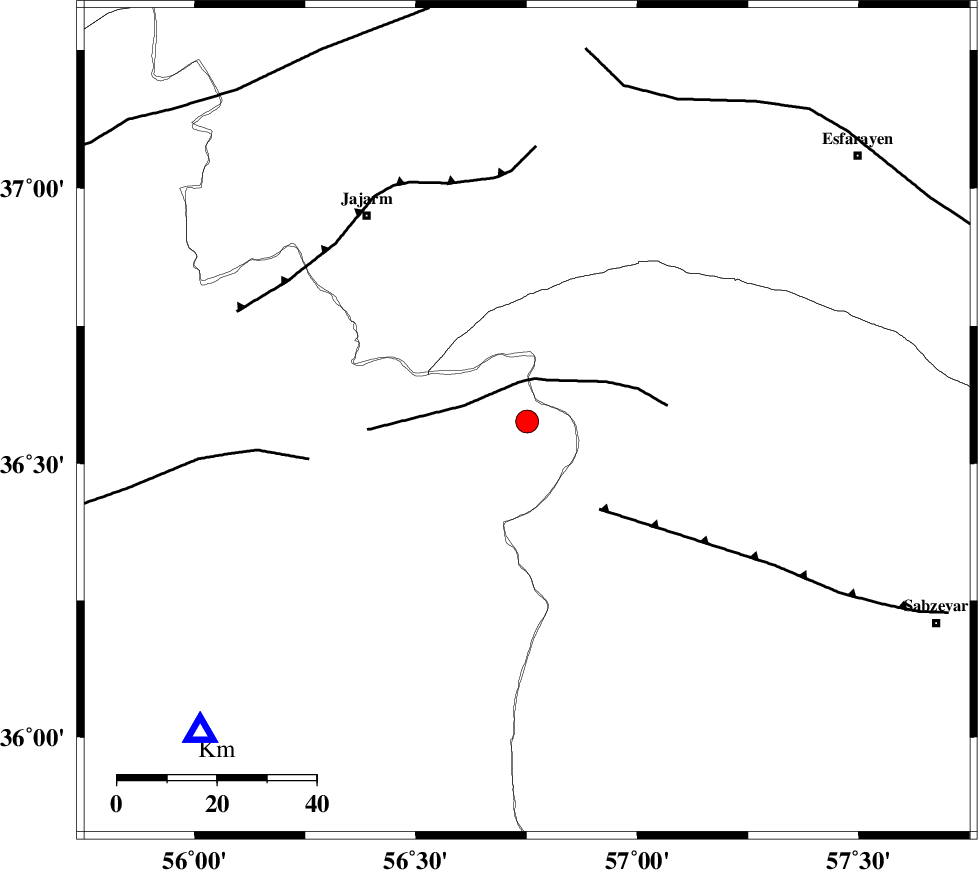

Faults within 150 km: |
|
| JOGHATAI_F (Length: 70 km) , Distance to epicenter: 8 km | |
| SABZEVAR_F (Length: 81 km) , Distance to epicenter: 23 km | |
| MEYAMEY_F (Length: 141 km) , Distance to epicenter: 45 km | |
| Number of Phases | 17 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 0.9 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194401 | IIEES SC | MRVT | Z | 0.6 | 1 | 2020-08-27 17:34:25 | 2024-08-14 09:37:00 | n |
| 194402 | IIEES SC | MRVT | Z | 0.6 | 1 | 2020-08-27 17:34:41 | 2024-08-14 09:37:00 | n |
| 194403 | IIEES SC | BJRD | Z | 0.4 | 1 | 2020-08-27 17:34:25 | 2024-08-14 09:37:00 | n |
| 194404 | IIEES SC | BJRD | Z | 0.4 | 1 | 2020-08-27 17:34:42 | 2024-08-14 09:37:00 | n |
| 194405 | IIEES SC | ABGH | Z | 1 | 1 | 2020-08-27 17:34:30 | 2024-08-14 09:37:00 | n |
| 194406 | IIEES SC | TABS | Z | 0.2 | 1 | 2020-08-27 17:34:51 | 2024-08-14 09:37:00 | n |
| 194407 | IIEES SC | DAMV | Z | 0.07 | 1 | 2020-08-27 17:35:06 | 2024-08-14 09:37:00 | n |
| 194408 | IIEES SC | SHRT | Z | 0.06 | 1 | 2020-08-27 17:35:07 | 2024-08-14 09:37:00 | n |
| 194409 | IIEES SC | CHTH | Z | 0.01 | 1 | 2020-08-27 17:35:14 | 2024-08-14 09:37:00 | n |
| 194410 | IIEES SC | NASN | Z | 0.02 | 1 | 2020-08-27 17:35:19 | 2024-08-14 09:37:00 | n |
| 194411 | IIEES SC | BSRN | Z | 0.02 | 1 | 2020-08-27 17:35:19 | 2024-08-14 09:37:00 | n |
| 194412 | IIEES SC | KHMZ | Z | 0.01 | 1 | 2020-08-27 17:35:37 | 2024-08-14 09:37:00 | n |
| 194413 | IIEES SC | GRMI | Z | 0.01 | 1 | 2020-08-27 17:35:51 | 2024-08-14 09:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SHRO | Z | EPg | E | 2020-08-27 17:34:18 | -0.5 | y | 0 | 92 | 226 | ||
| IIEES SC | MRVT | Z | EPg | E | 2020-08-27 17:34:25 | 0.1 | y | 0 | 134 | 334 | ||
| IIEES SC | MRVT | Z | ESg | E | 2020-08-27 17:34:41 | 0.4 | y | 0 | 134 | 334 | ||
| IIEES SC | BJRD | Z | EPg | E | 2020-08-27 17:34:25 | -0.6 | y | 0 | 138 | 25 | ||
| IIEES SC | BJRD | Z | ESg | E | 2020-08-27 17:34:42 | -0.2 | y | 0 | 138 | 25 | ||
| IIEES SC | ABGH | Z | EPg | E | 2020-08-27 17:34:30 | -0.8 | y | 0 | 175 | 276 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-08-27 17:34:47 | 0.5 | y | 0 | 289 | 82 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-08-27 17:34:51 | 0.2 | y | 0 | 326 | 174 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-08-27 17:35:06 | 0.1 | y | 0 | 443 | 256 | ||
| IIEES SC | SHRT | Z | EPn | E | 2020-08-27 17:35:07 | 0.1 | y | 0 | 458 | 135 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-08-27 17:35:14 | 0.8 | y | 0 | 505 | 203 | ||
| IIEES SC | CHTH | Z | EPn | E | 2020-08-27 17:35:14 | 0.4 | y | 0 | 511 | 262 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-08-27 17:35:19 | -0.2 | y | 0 | 553 | 221 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-08-27 17:35:19 | -0.7 | y | 0 | 556 | 157 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-08-27 17:35:37 | 0.4 | y | 0 | 694 | 243 | ||
| IIEES SC | GRMI | Z | EPn | E | 2020-08-27 17:35:51 | -0.6 | y | 0 | 820 | 288 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2020-08-27 17:35:57 | -0.4 | y | 0 | 859 | 154 | ||
