Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2020-08-24 18:25:15.6 |
| Date & Time (Local) | 1399/6/3 22:55:15.6 |

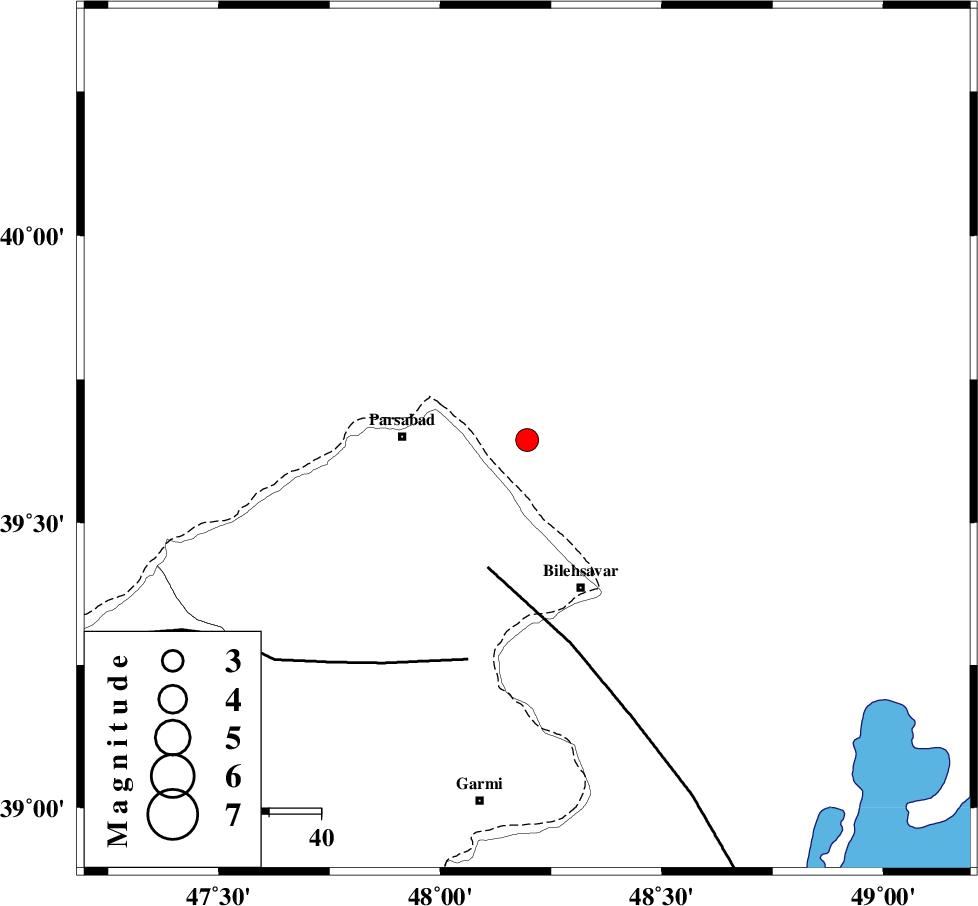

| Location | Lat:39.644 Lon: 48.196 |
| Region | , 24 km -East of Pars Abad |
Nearest Cities |
|
| 16 km East of Kushlu, Ardebil Province | |
| 16 km North East of Tazeh kand-e gadim, Ardebil Province | |
| 24 km North East of Jaefarabad, Ardebil Province | |
| 24 km East of Pars Abad, Ardebil Province | |
| 31 km North West of Bileh Savar, Ardebil Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 26 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 44 km | |
| Number of Phases | 17 |
| RMS | 0.6 |
| Number of Stations | 17 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 11.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194648 | IIEES SC | GRMI | Z | 2 | 1 | 2020-08-24 18:25:31 | 2024-08-24 04:17:00 | n |
| 194649 | IIEES SC | MAKU | Z | 0.07 | 1 | 2020-08-24 18:26:01 | 2024-08-24 04:17:00 | n |
| 194650 | IIEES SC | THKV | Z | 0.04 | 1 | 2020-08-24 18:26:22 | 2024-08-24 04:17:00 | n |
| 194651 | IIEES SC | SNGE | Z | 0.01 | 1 | 2020-08-24 18:26:28 | 2024-08-24 04:17:00 | n |
| 194652 | IIEES SC | DAMV | Z | 0.02 | 1 | 2020-08-24 18:26:33 | 2024-08-24 04:17:00 | n |
| 194653 | IIEES SC | GHVR | Z | 0.03 | 1 | 2020-08-24 18:26:42 | 2024-08-24 04:17:00 | n |
| 194654 | IIEES SC | MRVT | Z | 0.02 | 1 | 2020-08-24 18:26:53 | 2024-08-24 04:17:00 | n |
| 194655 | IIEES SC | SHRO | Z | 0.006 | 1 | 2020-08-24 18:27:04 | 2024-08-24 04:17:00 | n |
| 194656 | IIEES SC | BJRD | Z | 0.008 | 1 | 2020-08-24 18:27:06 | 2024-08-24 04:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | EPg | E | 2020-08-24 18:25:31 | -0.5 | y | 0 | 96 | 196 | ||
| IIEES SC | GRMI | Z | ESg | E | 2020-08-24 18:25:40 | -3.6 | n | 4 | 96 | 196 | ||
| IIEES SC | MAKU | Z | EPn | E | 2020-08-24 18:26:01 | -0.1 | y | 0 | 304 | 264 | ||
| IIEES SC | MAKU | Z | ES | E | 2020-08-24 18:26:31 | -4.2 | n | 4 | 304 | 264 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-08-24 18:26:05 | -0.2 | y | 0 | 333 | 173 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-08-24 18:26:05 | 0 | n | 4 | 334 | 155 | ||
| IIEES SC | GIDE | Z | ES | E | 2020-08-24 18:26:32 | -9.6 | n | 4 | 334 | 155 | ||
| IIEES SC | SRSL | Z | EPn | E | 2020-08-24 18:26:25 | 5.2 | n | 4 | 452 | 213 | ||
| IIEES SC | THKV | Z | EPn | E | 2020-08-24 18:26:22 | -1 | y | 0 | 476 | 150 | ||
| IIEES SC | CHTH | Z | EPn | E | 2020-08-24 18:26:25 | 0.7 | y | 0 | 488 | 148 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-08-24 18:26:28 | 0.9 | y | 0 | 511 | 188 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-08-24 18:26:33 | 0.5 | y | 0 | 556 | 143 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-08-24 18:26:42 | 5.4 | n | 4 | 588 | 164 | ||
| IIEES SC | GHVR | Z | EPn | E | 2020-08-24 18:26:42 | -0.5 | y | 0 | 634 | 155 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-24 18:26:53 | -0.3 | y | 0 | 722 | 108 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-08-24 18:27:04 | 1.1 | y | 0 | 798 | 120 | ||
| IIEES SC | BJRD | Z | EPn | E | 2020-08-24 18:27:06 | -0.3 | y | 0 | 830 | 105 | ||
