Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2020-08-31 16:44:03.6 |
| Date & Time (Local) | 1399/6/10 21:14:03.6 |

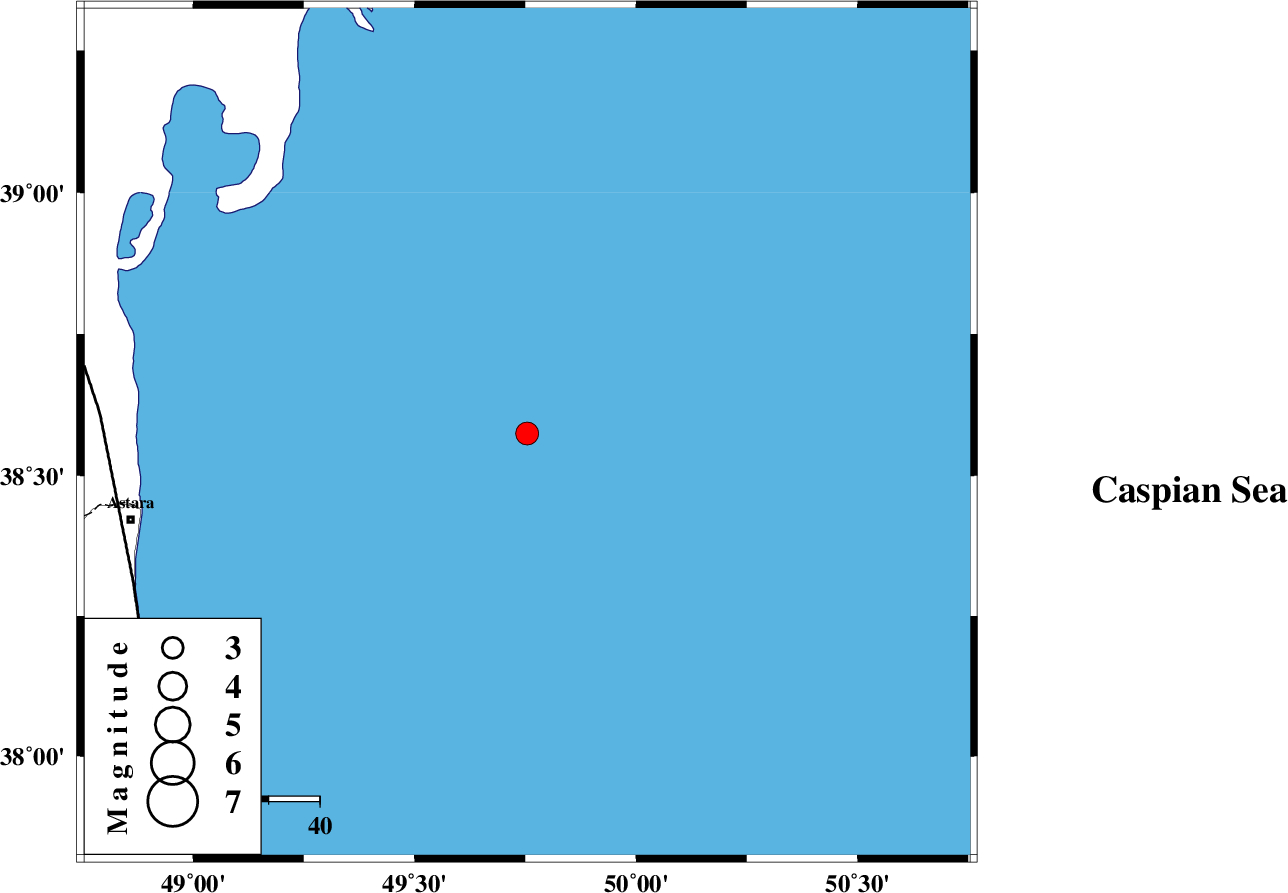

| Location | Lat:38.574 Lon: 49.754 |
| Region | Caspian Sea, 80 km North-East of Astara |
Nearest Cities |
|
| 80 km North East of Astara, Gilan Province | |
| 84 km North East of Londovil, Gilan Province | |
| 89 km North East of Hariq, Gilan Province | |
| 98 km North East of Lisar, Gilan Province | |
| 98 km North East of Kiladeh, Gilan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TALESH_F (Length: 258 km) , Distance to epicenter: 83 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 112 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 140 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 12.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 194681 | IIEES SC | GIDE | Z | 0.8 | 1 | 2020-08-31 16:44:33 | 2024-08-24 05:35:00 | n |
| 194682 | IIEES SC | THKV | Z | 0.1 | 1 | 2020-08-31 16:44:50 | 2024-08-24 05:35:00 | n |
| 194683 | IIEES SC | DAMV | Z | 0.09 | 1 | 2020-08-31 16:44:59 | 2024-08-24 05:35:00 | n |
| 194684 | IIEES SC | SRSL | Z | 0.03 | 1 | 2020-08-31 16:45:09 | 2024-08-24 05:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GRMI | Z | EPg | E | 2020-08-31 16:44:28 | -2 | n | 4 | 164 | 279 | ||
| IIEES SC | GIDE | Z | EPg | E | 2020-08-31 16:44:33 | -0.1 | y | 0 | 183 | 178 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-08-31 16:44:39 | -0.8 | y | 0 | 231 | 204 | ||
| IIEES SC | THKV | Z | EPn | E | 2020-08-31 16:44:50 | 0.3 | y | 0 | 311 | 161 | ||
| IIEES SC | CHTH | Z | EPn | E | 2020-08-31 16:44:51 | 0.4 | y | 0 | 320 | 158 | ||
| IIEES SC | DAMV | Z | EPn | E | 2020-08-31 16:44:59 | 0 | y | 0 | 382 | 149 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-08-31 16:45:07 | 0.4 | y | 0 | 442 | 209 | ||
| IIEES SC | SRSL | Z | EPn | E | 2020-08-31 16:45:09 | 0.1 | y | 0 | 464 | 236 | ||
| IIEES SC | ABGH | Z | EPn | E | 2020-08-31 16:45:12 | 0 | y | 0 | 490 | 115 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-08-31 16:45:21 | -0.2 | y | 0 | 565 | 100 | ||
