Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2020-07-13 08:05:13.5 |
| Date & Time (Local) | 1399/4/23 12:35:13.5 |
| Location | Lat:35.656 Lon: 52.548 |
| Region | Tehran Province, 22 km -West of Firuzkuh |
Nearest Cities |
|
| 10 km North of Atashan, Tehran Province | |
| 17 km South of Arjomand, Tehran Province | |
| 20 km South West of Shahrabad, Tehran Province | |
| 22 km North East of Sarbandan, Tehran Province | |
| 22 km West of Firuzkuh, Tehran Province | |
| Depth | 10 km |
| Agency | |

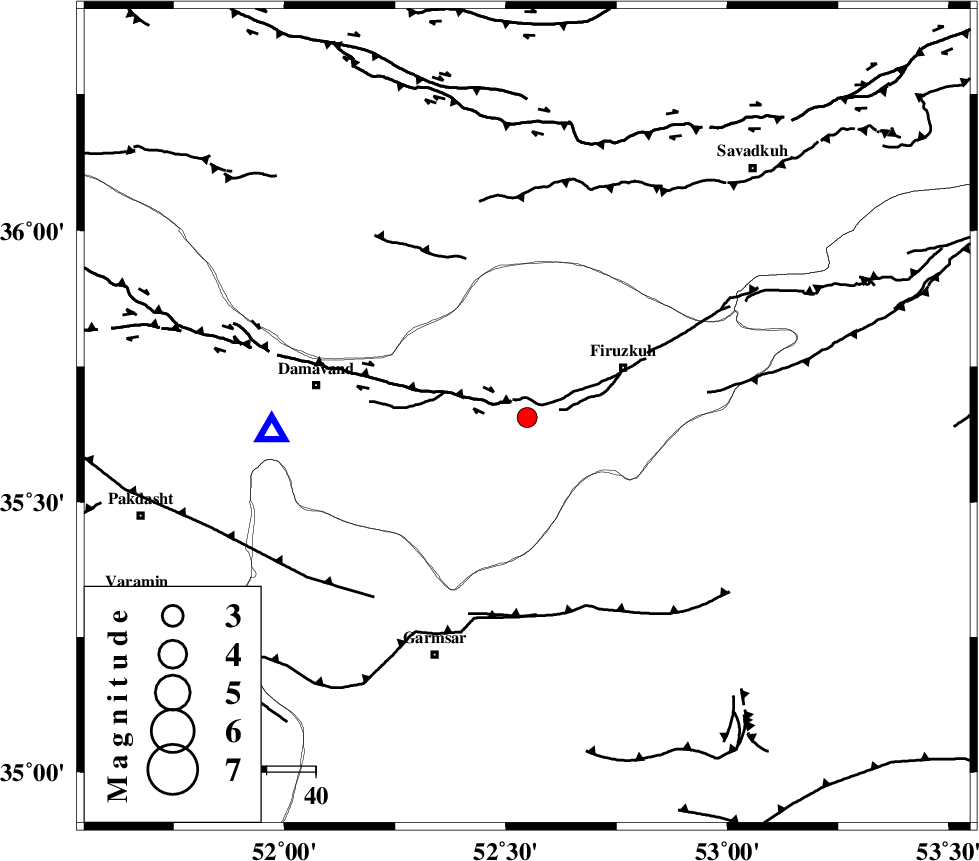

Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 9 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 37 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 41 km | |
| Number of Phases | 16 |
| RMS | 0.6 |
| Number of Stations | 16 |
| Error in Latitude | >2 km |
| Error in Longitude | 2 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 195720 | IIEES SC | THKV | Z | 0.2 | 1 | 2020-07-13 08:05:39 | 2024-11-11 07:59:00 | n |
| 195721 | IIEES SC | ASAO | Z | 0.1 | 1 | 2020-07-13 08:05:54 | 2024-11-11 07:59:00 | n |
| 195722 | IIEES SC | GIDE | Z | 0.2 | 1 | 2020-07-13 08:05:57 | 2024-11-11 07:59:00 | n |
| 195723 | IIEES SC | NASN | Z | 0.03 | 1 | 2020-07-13 08:06:01 | 2024-11-11 07:59:00 | n |
| 195724 | IIEES SC | KHMZ | Z | 0.04 | 1 | 2020-07-13 08:06:02 | 2024-11-11 07:59:00 | n |
| 195725 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2020-07-13 08:06:08 | 2024-11-11 07:59:00 | n |
| 195726 | IIEES SC | MRVT | Z | 0.03 | 1 | 2020-07-13 08:06:09 | 2024-11-11 07:59:00 | n |
| 195727 | IIEES SC | TABS | Z | 0.02 | 1 | 2020-07-13 08:06:19 | 2024-11-11 07:59:00 | n |
| 195728 | IIEES SC | SNGE | Z | 0.01 | 1 | 2020-07-13 08:06:21 | 2024-11-11 07:59:00 | n |
| 195729 | IIEES SC | GRMI | Z | 0.008 | 1 | 2020-07-13 08:06:28 | 2024-11-11 07:59:00 | n |
| 195730 | IIEES SC | ILBA | Z | 0.02 | 1 | 2020-07-13 08:06:38 | 2024-11-11 07:59:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | EPg | E | 2020-07-13 08:05:22 | -0.9 | y | 0 | 52 | 267 | ||
| IIEES SC | CHTH | Z | EPg | E | 2020-07-13 08:05:35 | -0.5 | y | 0 | 132 | 282 | ||
| IIEES SC | THKV | Z | EPg | E | 2020-07-13 08:05:39 | 0.1 | y | 0 | 154 | 281 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-07-13 08:05:54 | -0.2 | y | 0 | 261 | 242 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-07-13 08:05:57 | 0.7 | y | 0 | 282 | 300 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-07-13 08:06:01 | 0.2 | y | 0 | 316 | 83 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-07-13 08:06:01 | 0.3 | y | 0 | 318 | 176 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-07-13 08:06:02 | 1.1 | y | 0 | 318 | 228 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-07-13 08:06:08 | 1.2 | y | 0 | 365 | 288 | ||
| IIEES SC | MRVT | Z | EPn | E | 2020-07-13 08:06:09 | -0.1 | y | 0 | 387 | 55 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-07-13 08:06:02 | -9.6 | n | 4 | 408 | 152 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-07-13 08:06:19 | -0.9 | y | 0 | 474 | 118 | ||
| IIEES SC | GTMR | Z | EPn | E | 2020-07-13 08:05:42 | -38.6 | n | 4 | 475 | 222 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-07-13 08:06:21 | 0.2 | y | 0 | 477 | 262 | ||
| IIEES SC | GRMI | Z | EPn | E | 2020-07-13 08:06:28 | -0.3 | y | 0 | 541 | 310 | ||
| IIEES SC | ILBA | Z | EPn | E | 2020-07-13 08:06:38 | -0.3 | y | 0 | 624 | 249 | ||
