Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2020-07-12 20:20:01.2 |
| Date & Time (Local) | 1399/4/23 00:50:01.2 |

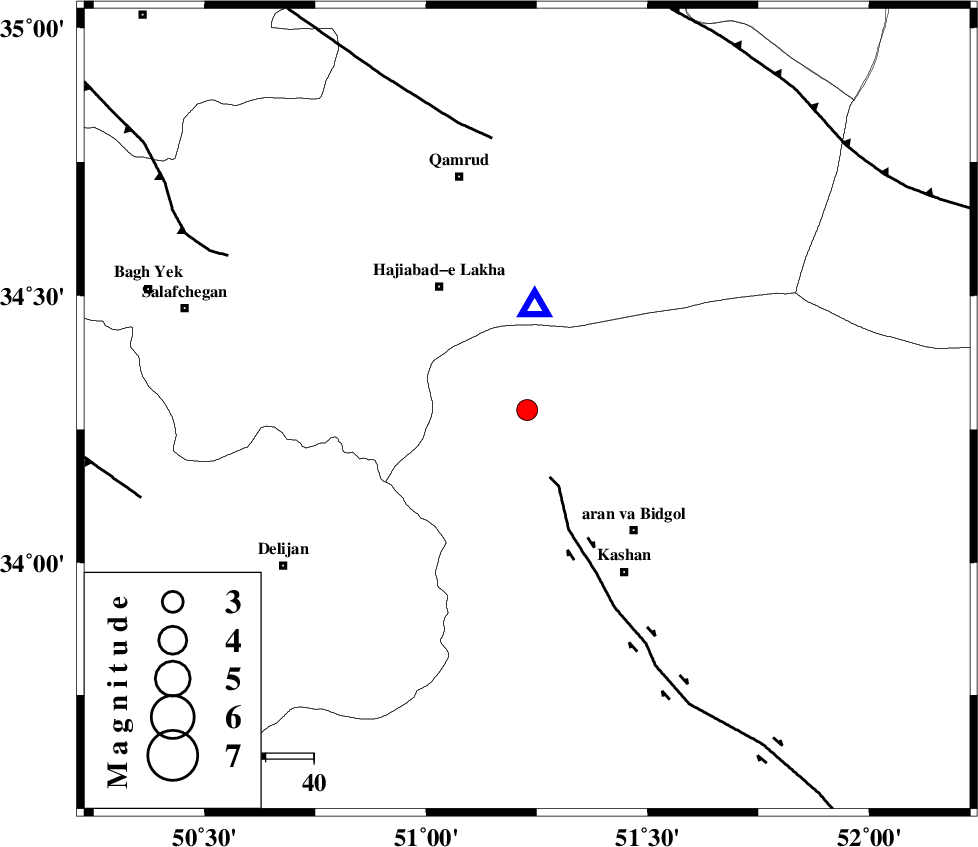

| Location | Lat:34.286 Lon: 51.228 |
| Region | Esfahan Province, 33 km North-West of Aran va bidgol |
Nearest Cities |
|
| 13 km North of Mashgan, Esfahan Province | |
| 20 km North East of Yahyaabad, Esfahan Province | |
| 21 km North West of Nasrabad, Esfahan Province | |
| 24 km North East of Armak, Esfahan Province | |
| 29 km North of Astarak, Esfahan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 15 km | |
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 57 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 60 km | |
| Number of Phases | 17 |
| RMS | 0.5 |
| Number of Stations | 17 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 3.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 200232 | IIEES SC | NASN | Z | 0.2 | 1 | 2020-07-12 20:20:35 | 2025-11-19 10:43:00 | n |
| 200233 | IIEES SC | GIDE | Z | 0.08 | 1 | 2020-07-12 20:20:48 | 2025-11-19 10:43:00 | n |
| 200234 | IIEES SC | SNGE | Z | 0.04 | 1 | 2020-07-12 20:20:54 | 2025-11-19 10:43:00 | n |
| 200235 | IIEES SC | KAGH | Z | 0.003 | 1 | 2020-07-12 20:21:53 | 2025-11-19 10:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | GHVR | Z | EPg | E | 2020-07-12 20:20:06 | 0.1 | y | 0 | 22 | 4 | ||
| IIEES SC | ASAO | Z | EPg | E | 2020-07-12 20:20:18 | -1.5 | y | 0 | 114 | 285 | ||
| IIEES SC | KHMZ | Z | EPg | E | 2020-07-12 20:20:20 | -2.3 | n | 4 | 132 | 243 | ||
| IIEES SC | DAMV | Z | EPg | E | 2020-07-12 20:20:28 | 0.3 | y | 0 | 164 | 24 | ||
| IIEES SC | CHTH | Z | EPg | E | 2020-07-12 20:20:30 | -0.4 | y | 0 | 180 | 357 | ||
| IIEES SC | THKV | Z | EPg | E | 2020-07-12 20:20:30 | -0.2 | y | 0 | 184 | 350 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-07-12 20:20:35 | -0.6 | y | 0 | 221 | 138 | ||
| IIEES SC | GTMR | Z | EPn | E | 2020-07-12 20:20:44 | 0.7 | y | 0 | 282 | 224 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-07-12 20:20:48 | 0 | y | 0 | 319 | 337 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2020-07-12 20:20:52 | 0 | y | 0 | 351 | 319 | ||
| IIEES SC | SNGE | Z | EPn | E | 2020-07-12 20:20:54 | 0.5 | y | 0 | 367 | 284 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-07-12 20:20:55 | -0.2 | y | 0 | 377 | 124 | ||
| IIEES SC | ILBA | Z | EPn | E | 2020-07-12 20:21:06 | -0.4 | y | 0 | 470 | 261 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-07-12 20:21:08 | 0.3 | y | 0 | 476 | 66 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-07-12 20:21:17 | 0.4 | y | 0 | 549 | 97 | ||
| IIEES SC | BSRN | Z | EPn | E | 2020-07-12 20:21:41 | -4.8 | n | 4 | 781 | 109 | ||
| IIEES SC | KAGH | Z | EPn | E | 2020-07-12 20:21:53 | -0.6 | y | 0 | 844 | 70 | ||
