Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2020-07-12 03:28:24.8 |
| Date & Time (Local) | 1399/4/22 07:58:24.8 |

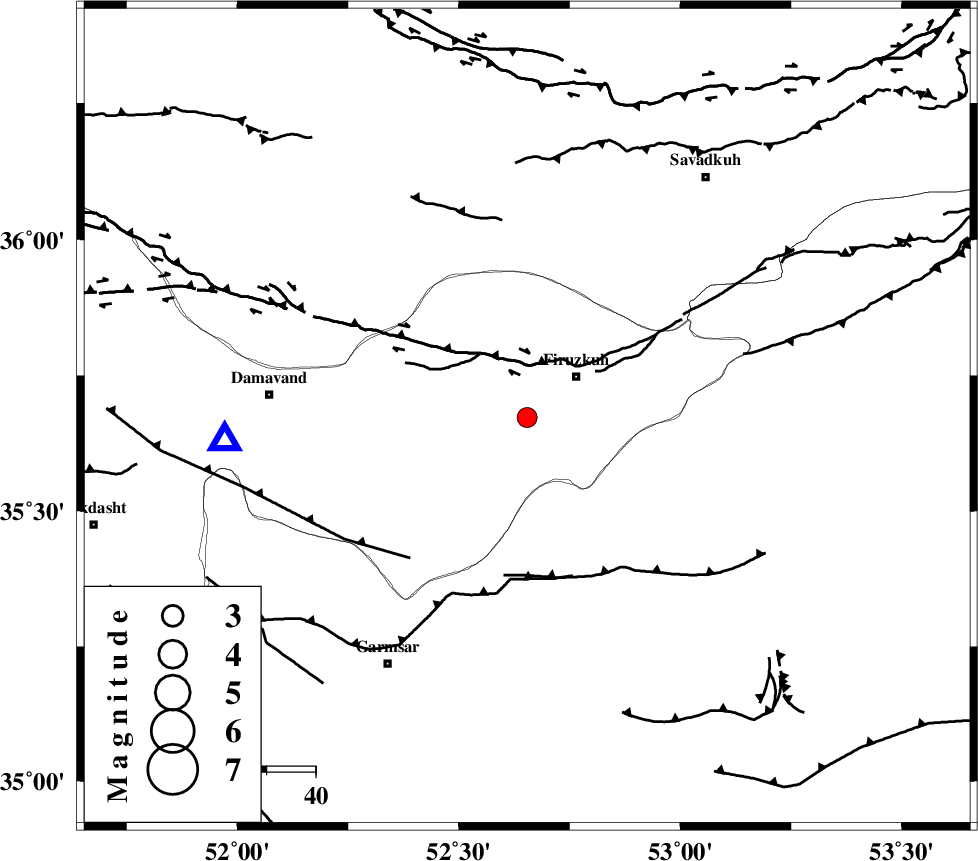

| Location | Lat:35.673 Lon: 52.654 |
| Region | Tehran Province, 13 km -West of Firuzkuh |
Nearest Cities |
|
| 11 km North of Atashan, Tehran Province | |
| 13 km West of Firuzkuh, Tehran Province | |
| 15 km South of Shahrabad, Tehran Province | |
| 19 km South East of Arjomand, Tehran Province | |
| 31 km North East of Sarbandan, Tehran Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 2 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 28 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 43 km | |
| Number of Phases | 12 |
| RMS | 0.6 |
| Number of Stations | 12 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 14.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 200592 | IIEES SC | THKV | Z | 0.2 | 1 | 2020-07-12 03:28:50 | 2025-12-16 06:05:00 | n |
| 200593 | IIEES SC | THKV | Z | 0.2 | 1 | 2020-07-12 03:29:10 | 2025-12-16 06:05:00 | n |
| 200594 | IIEES SC | ASAO | Z | 0.1 | 1 | 2020-07-12 03:29:06 | 2025-12-16 06:05:00 | n |
| 200595 | IIEES SC | KHMZ | Z | 0.03 | 1 | 2020-07-12 03:29:13 | 2025-12-16 06:05:00 | n |
| 200596 | IIEES SC | YZKH | Z | 0.02 | 1 | 2020-07-12 03:29:23 | 2025-12-16 06:05:00 | n |
| 200597 | IIEES SC | TABS | Z | 0.02 | 1 | 2020-07-12 03:29:29 | 2025-12-16 06:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | DAMV | Z | EPg | E | 2020-07-12 03:28:33 | -2.8 | n | 4 | 62 | 266 | ||
| IIEES SC | CHTH | Z | EPg | E | 2020-07-12 03:28:46 | -1.5 | y | 0 | 141 | 281 | ||
| IIEES SC | THKV | Z | EPg | E | 2020-07-12 03:28:50 | -0.8 | y | 0 | 163 | 280 | ||
| IIEES SC | THKV | Z | ESg | E | 2020-07-12 03:29:10 | -0.5 | y | 0 | 163 | 280 | ||
| IIEES SC | GHVR | Z | EPg | E | 2020-07-12 03:28:54 | -0.8 | y | 0 | 184 | 224 | ||
| IIEES SC | ASAO | Z | EPn | E | 2020-07-12 03:29:06 | -0.4 | y | 0 | 270 | 242 | ||
| IIEES SC | GIDE | Z | EPn | E | 2020-07-12 03:29:09 | 0.7 | y | 0 | 290 | 299 | ||
| IIEES SC | SHRO | Z | EPn | E | 2020-07-12 03:29:10 | -0.1 | y | 0 | 306 | 83 | ||
| IIEES SC | NASN | Z | EPn | E | 2020-07-12 03:29:13 | 0.8 | y | 0 | 319 | 177 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2020-07-12 03:29:13 | 0.2 | y | 0 | 327 | 229 | ||
| IIEES SC | YZKH | Z | EPn | E | 2020-07-12 03:29:23 | 0 | y | 0 | 406 | 154 | ||
| IIEES SC | TABS | Z | EPn | E | 2020-07-12 03:29:29 | -1 | y | 0 | 467 | 119 | ||
