Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2007-03-13 09:38:18.6 |
| Date & Time (Local) | 1385/12/22 13:08:18.6 |

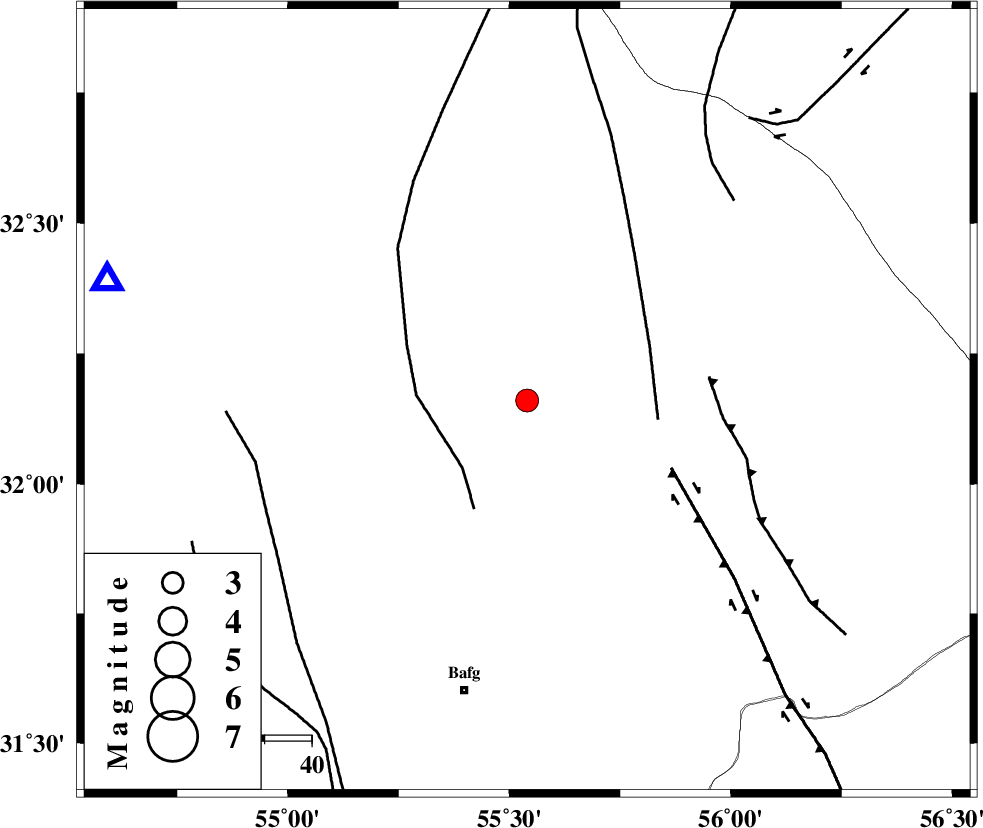

| Location | Lat:32.16 Lon: 55.54 |
| Region | 62 km North-East of Bafq, Yazd Province |
Nearest Cities |
|
| 52 km North West of Kushk, Yazd Province | |
| 56 km North West of Behabad, Yazd Province | |
| 60 km North East of Mobarake, Yazd Province | |
| 63 km North East of Bafq, Yazd Province | |
| 70 km North West of Benestan, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 20 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 28 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 34 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >7.5 km |
| Error in Longitude | 7.9 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 37581 | IIEES | NASN | N | 74.4 | 0.83 | 2007-03-13 09:39:43 | 2007-04-22 03:28:00 | n |
| 37582 | IIEES | KRBR | E | 247.5 | 0.63 | 2007-03-13 09:39:39 | 2007-04-22 03:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | NASN | Z | Pn | E | 2007-03-13 09:38:59 | 0.1 | y | 266 | 286 | |||
| IIEES | NASN | N | Sg | E | 2007-03-13 09:39:34 | 0 | y | 266 | 286 | |||
| IIEES | KRBR | Z | Pn | E | 2007-03-13 09:38:59 | 0.1 | y | 268 | 154 | |||
| IIEES | KRBR | E | Sg | E | 2007-03-13 09:39:34 | -0.1 | y | 268 | 154 | |||
| IIEES | ASAO | Z | Pn | E | 2007-03-13 09:39:38 | 0.1 | y | 578 | 299 | |||
| IIEES | CHTH | Z | Pn | E | 2007-03-13 09:39:38 | -0.2 | y | 582 | 317 | |||
