Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2007-09-10 21:11:45.0 |
| Date & Time (Local) | 1386/6/20 00:41:45.0 |

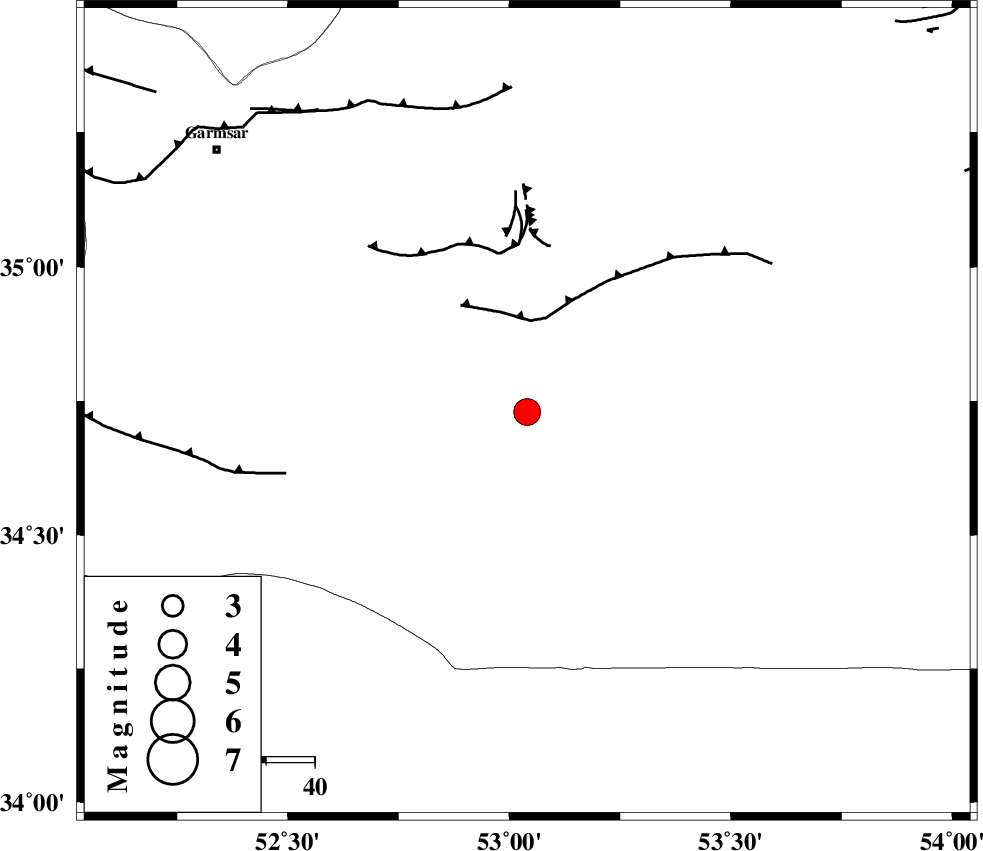

| Location | Lat:34.73 Lon: 53.04 |
| Region | 84 km South-East of Garmsar, Semnan Province |
Nearest Cities |
|
| 71 km South East of Kohanabad, Semnan Province | |
| 74 km South East of Aradan, Semnan Province | |
| 75 km South East of Davarabad, Semnan Province | |
| 75 km South East of Gardovan, Semnan Province | |
| 75 km South of Lasjerd, Semnan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUH_E_GUGERD_F (Length: 73 km) , Distance to epicenter: 19 km | |
| KUH_E_GACHAB_F1 (Length: 53 km) , Distance to epicenter: 35 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 49 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >3.8 km |
| Error in Longitude | 6.8 km |
| Error in Depth | 12.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 39064 | IIEES | GHVR | E | 731.8 | 0.36 | 2007-09-10 21:12:38 | 2007-11-04 01:43:00 | n |
| 39065 | IIEES | GHVR | N | 679.5 | 0.4 | 2007-09-10 21:12:42 | 2007-11-04 01:43:00 | n |
| 39066 | IIEES | NASN | N | 484.8 | 0.28 | 2007-09-10 21:12:48 | 2007-11-04 01:43:00 | n |
| 39067 | IIEES | CHTH | N | 752.1 | 0.44 | 2007-09-10 21:12:48 | 2007-11-04 01:43:00 | n |
| 39068 | IIEES | CHTH | E | 590.9 | 0.76 | 2007-09-10 21:12:48 | 2007-11-04 01:43:00 | n |
| 39069 | IIEES | THKV | N | 1501.9 | 0.44 | 2007-09-10 21:12:55 | 2007-11-04 01:43:00 | n |
| 39070 | IIEES | THKV | E | 860.1 | 0.48 | 2007-09-10 21:12:55 | 2007-11-04 01:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2007-09-10 21:12:08 | 0.2 | y | 140 | 316 | |||
| IIEES | GHVR | Z | Pg | E | 2007-09-10 21:12:13 | 0.5 | y | 167 | 261 | |||
| IIEES | NASN | Z | Pg | E | 2007-09-10 21:12:19 | -0.5 | y | 215 | 186 | |||
| IIEES | NASN | E | Sg | E | 2007-09-10 21:12:46 | 0.1 | y | 215 | 186 | |||
| IIEES | CHTH | Z | Pg | E | 2007-09-10 21:12:20 | -0.4 | y | 218 | 307 | |||
| IIEES | THKV | Z | Pg | E | 2007-09-10 21:12:23 | -0.6 | y | 237 | 304 | |||
| IIEES | ASAO | Z | Pn | E | 2007-09-10 21:12:27 | 0.2 | y | 277 | 267 | |||
| IIEES | ASAO | E | Sg | E | 2007-09-10 21:13:03 | 0.2 | y | 277 | 267 | |||
| IIEES | MRVT | Z | Pn | E | 2007-09-10 21:12:45 | 0.5 | y | 425 | 39 | |||
