Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2007-09-29 09:28:32.3 |
| Date & Time (Local) | 1386/7/7 12:58:32.3 |

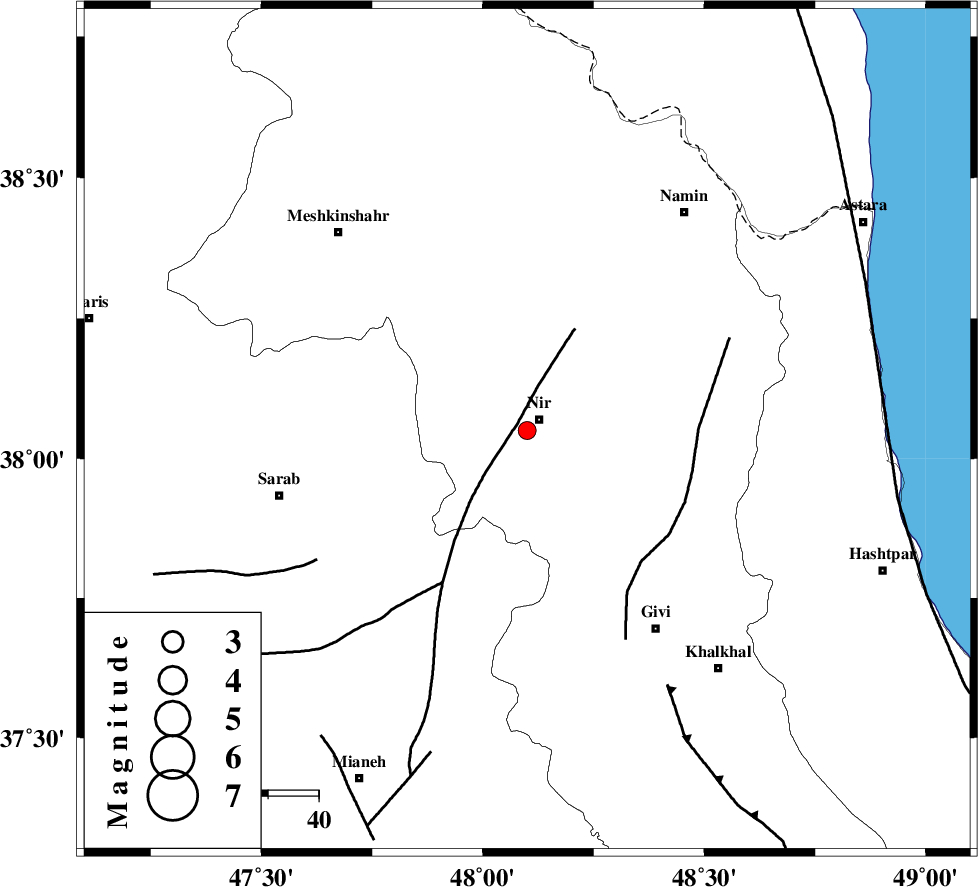

| Location | Lat:38.05 Lon: 48.1 |
| Region | 3 km Nir, Ardebil Province |
Nearest Cities |
|
| 3 km of Nir, Ardebil Province | |
| 8 km of Rezaqoli qeshlaq, Ardebil Province | |
| 9 km North of Qarehshiran, Ardebil Province | |
| 10 km of Eslamabad, Ardebil Province | |
| 12 km South of Varniab, Ardebil Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 12 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 34 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 58 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 10.4 km |
| Error in Depth | 10 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 39576 | IIEES | GRMI | E | 208.5 | 0.2 | 2007-09-29 09:28:58 | 2007-11-04 01:43:00 | n |
| 39577 | IIEES | SNGE | E | 14.9 | 0.52 | 2007-09-29 09:30:13 | 2007-11-04 01:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2007-09-29 09:28:47 | 0.1 | y | 85.9 | 348 | |||
| IIEES | GRMI | N | Sg | E | 2007-09-29 09:28:58 | 0.1 | y | 85.9 | 348 | |||
| IIEES | ZNJK | Z | Pg | E | 2007-09-29 09:28:58 | -0.3 | y | 162 | 161 | |||
| IIEES | ZNJK | N | Sg | E | 2007-09-29 09:29:18 | -0.1 | y | 162 | 161 | |||
| IIEES | MAKU | Z | Pn | E | 2007-09-29 09:29:20 | -0.5 | y | 330 | 297 | |||
| IIEES | SNGE | Z | Pn | E | 2007-09-29 09:29:22 | 0.6 | y | 335 | 192 | |||
| IIEES | SNGE | N | Sg | E | 2007-09-29 09:30:06 | 0.1 | y | 335 | 192 | |||
