Event Specification
Magnitude |
4.9 |
| Date & Time (UTC) | 2007-11-20 05:20:02.8 |
| Date & Time (Local) | 1386/8/29 08:50:02.8 |

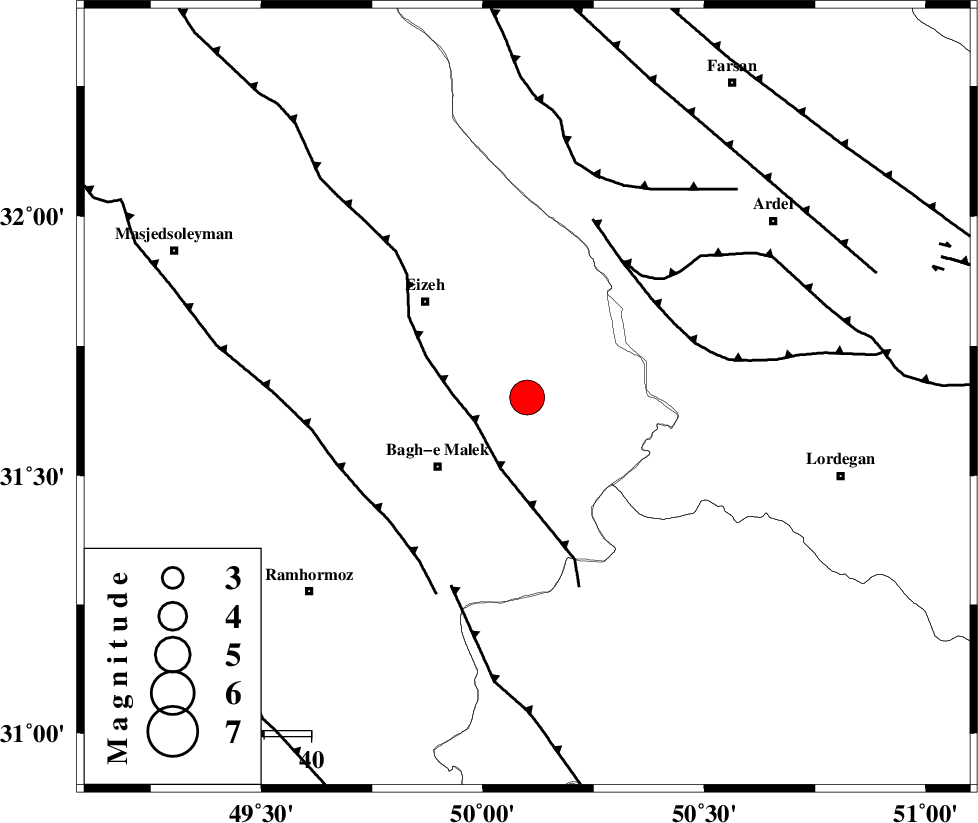

| Location | Lat:31.65 Lon: 50.1 |
| Region | 24 km North-East of Bagh Malek, Khoozestan Province |
Nearest Cities |
|
| 16 km North East of Abolabbas, Khoozestan Province | |
| 20 km West of Dehdez, Khoozestan Province | |
| 20 km North East of Ghaleh tal, Khoozestan Province | |
| 24 km North East of Bagh Malek, Khoozestan Province | |
| 30 km South East of Izeh, Khoozestan Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 12 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 34 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 36 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | >6.6 km |
| Error in Longitude | 6 km |
| Error in Depth | 11.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 40199 | IIEES | SHGR | N | 39121.6 | 0.35 | 2007-11-20 05:20:46 | 2008-04-12 10:47:00 | n |
| 40200 | IIEES | SHGR | E | 30137.9 | 0.29 | 2007-11-20 05:20:46 | 2008-04-12 10:47:00 | n |
| 40201 | IIEES | ASAO | E | 5000.7 | 0.68 | 2007-11-20 05:21:40 | 2008-04-12 10:47:00 | n |
| 40202 | IIEES | ASAO | N | 4557.4 | 0.59 | 2007-11-20 05:21:42 | 2008-04-12 10:47:00 | n |
| 40203 | IIEES | GHVR | N | 3532.6 | 0.47 | 2007-11-20 05:21:48 | 2008-04-12 10:47:00 | n |
| 40204 | IIEES | GHVR | E | 3203 | 0.66 | 2007-11-20 05:21:55 | 2008-04-12 10:47:00 | n |
| 40205 | IIEES | GHIR | E | 1045 | 0.66 | 2007-11-20 05:22:44 | 2008-04-12 10:47:00 | n |
| 40206 | IIEES | DAMV | N | 868.7 | 0.52 | 2007-11-20 05:22:23 | 2008-04-12 10:47:00 | n |
| 40207 | IIEES | DAMV | E | 1098.2 | 0.63 | 2007-11-20 05:22:27 | 2008-04-12 10:47:00 | n |
| 40208 | IIEES | THKV | E | 788.2 | 0.64 | 2007-11-20 05:22:24 | 2008-04-12 10:47:00 | n |
| 40209 | IIEES | THKV | N | 711 | 0.85 | 2007-11-20 05:22:43 | 2008-04-12 10:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2007-11-20 05:20:25 | 0.1 | y | 133 | 293 | |||
| IIEES | NASN | Z | Pn | E | 2007-11-20 05:20:46 | 0.4 | y | 285 | 63 | |||
| IIEES | NASN | N | Sg | E | 2007-11-20 05:21:23 | 0.1 | y | 285 | 63 | |||
| IIEES | ASAO | Z | Pn | E | 2007-11-20 05:20:50 | -0.2 | y | 321 | 359 | |||
| IIEES | GHVR | Z | Pn | E | 2007-11-20 05:20:51 | 0.4 | y | 331 | 18 | |||
| IIEES | GHVR | E | Sg | E | 2007-11-20 05:21:35 | -0.2 | y | 331 | 18 | |||
| IIEES | GHIR | Z | Pn | E | 2007-11-20 05:21:07 | -0.5 | y | 466 | 143 | |||
| IIEES | DAMV | Z | Pn | E | 2007-11-20 05:21:08 | -0.8 | y | 474 | 21 | |||
| IIEES | THKV | Z | Pn | E | 2007-11-20 05:21:09 | -0.6 | y | 478 | 8 | |||
| IIEES | ZNJK | Z | Pn | E | 2007-11-20 05:21:22 | 1.1 | y | 572 | 347 | |||
| IIEES | KRBR | Z | Pn | E | 2007-11-20 05:21:33 | 0.2 | y | 663 | 104 | |||
| IIEES | MRVT | Z | Pn | E | 2007-11-20 05:21:57 | 0.2 | y | 863 | 38 | |||
