Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2007-11-21 08:04:26.1 |
| Date & Time (Local) | 1386/8/30 11:34:26.1 |

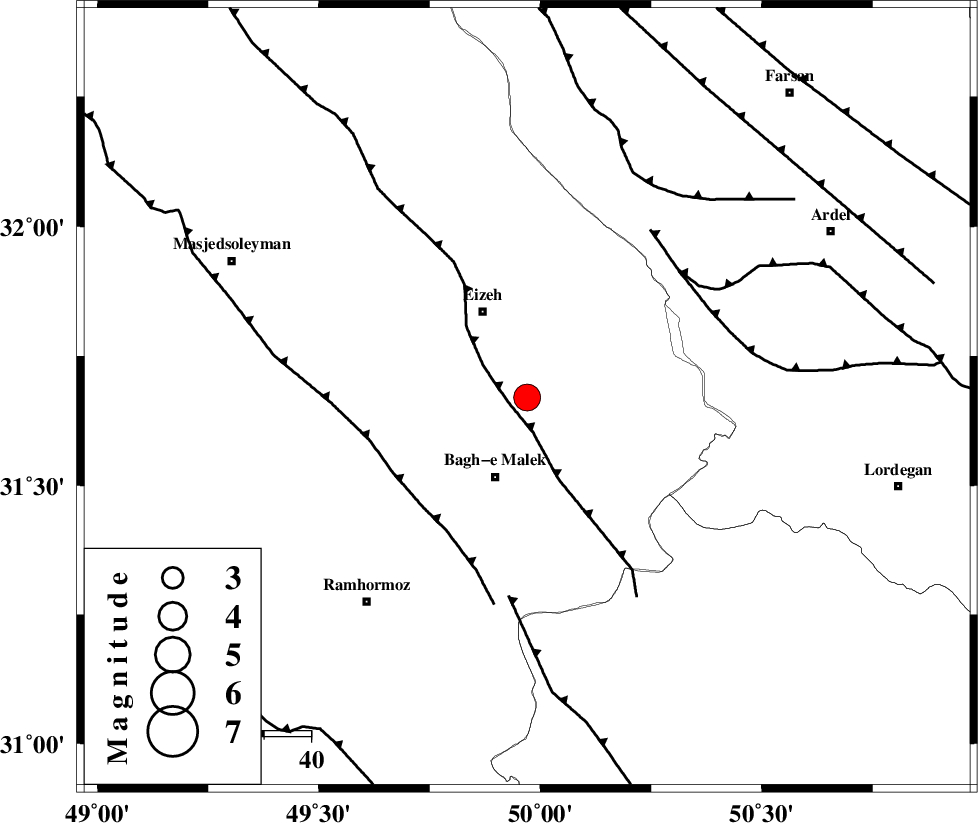

| Location | Lat:31.67 Lon: 49.97 |
| Region | 18 km North of Bagh Malek, Khoozestan Province |
Nearest Cities |
|
| 9 km North of Ghaleh tal, Khoozestan Province | |
| 14 km North of Abolabbas, Khoozestan Province | |
| 18 km North of Bagh Malek, Khoozestan Province | |
| 21 km South East of Izeh, Khoozestan Province | |
| 22 km South East of Chenarestan, Khoozestan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 4 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 32 km | |
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 42 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | >4.4 km |
| Error in Longitude | 3.8 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 40234 | IIEES | SHGR | N | 2774.7 | 0.52 | 2007-11-21 08:05:08 | 2008-04-12 10:47:00 | n |
| 40235 | IIEES | SHGR | E | 2375.3 | 0.38 | 2007-11-21 08:05:10 | 2008-04-12 10:47:00 | n |
| 40236 | IIEES | GHVR | E | 329.8 | 0.47 | 2007-11-21 08:06:02 | 2008-04-12 10:47:00 | n |
| 40237 | IIEES | GHVR | N | 276.6 | 0.54 | 2007-11-21 08:06:03 | 2008-04-12 10:47:00 | n |
| 40238 | IIEES | SNGE | E | 149.9 | 0.59 | 2007-11-21 08:06:43 | 2008-04-12 10:47:00 | n |
| 40239 | IIEES | GHIR | E | 89.5 | 0.34 | 2007-11-21 08:06:52 | 2008-04-12 10:47:00 | n |
| 40240 | IIEES | DAMV | E | 82.4 | 1.03 | 2007-11-21 08:06:49 | 2008-04-12 10:47:00 | n |
| 40241 | IIEES | THKV | E | 88.4 | 0.52 | 2007-11-21 08:06:55 | 2008-04-12 10:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2007-11-21 08:04:46 | 0.4 | y | 120 | 294 | |||
| IIEES | NASN | Z | Pn | E | 2007-11-21 08:05:10 | 0 | y | 296 | 64 | |||
| IIEES | NASN | N | Sg | E | 2007-11-21 08:05:50 | 0.5 | y | 296 | 64 | |||
| IIEES | GHVR | Z | Pn | E | 2007-11-21 08:05:15 | 0.3 | y | 334 | 21 | |||
| IIEES | GHVR | E | Sg | E | 2007-11-21 08:05:59 | -0.4 | y | 334 | 21 | |||
| IIEES | SNGE | Z | Pn | E | 2007-11-21 08:05:29 | -0.1 | y | 451 | 328 | |||
| IIEES | GHIR | Z | Pn | E | 2007-11-21 08:05:32 | -0.2 | y | 475 | 141 | |||
| IIEES | DAMV | Z | Pn | E | 2007-11-21 08:05:32 | -0.1 | y | 477 | 22 | |||
| IIEES | THKV | Z | Pn | E | 2007-11-21 08:05:32 | -0.3 | y | 478 | 10 | |||
| IIEES | CHTH | Z | Pn | E | 2007-11-21 08:05:33 | -0.2 | y | 482 | 13 | |||
| IIEES | KRBR | Z | Pn | E | 2007-11-21 08:05:57 | -0.5 | y | 676 | 104 | |||
