Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2007-12-12 17:38:59.8 |
| Date & Time (Local) | 1386/9/21 21:08:59.8 |

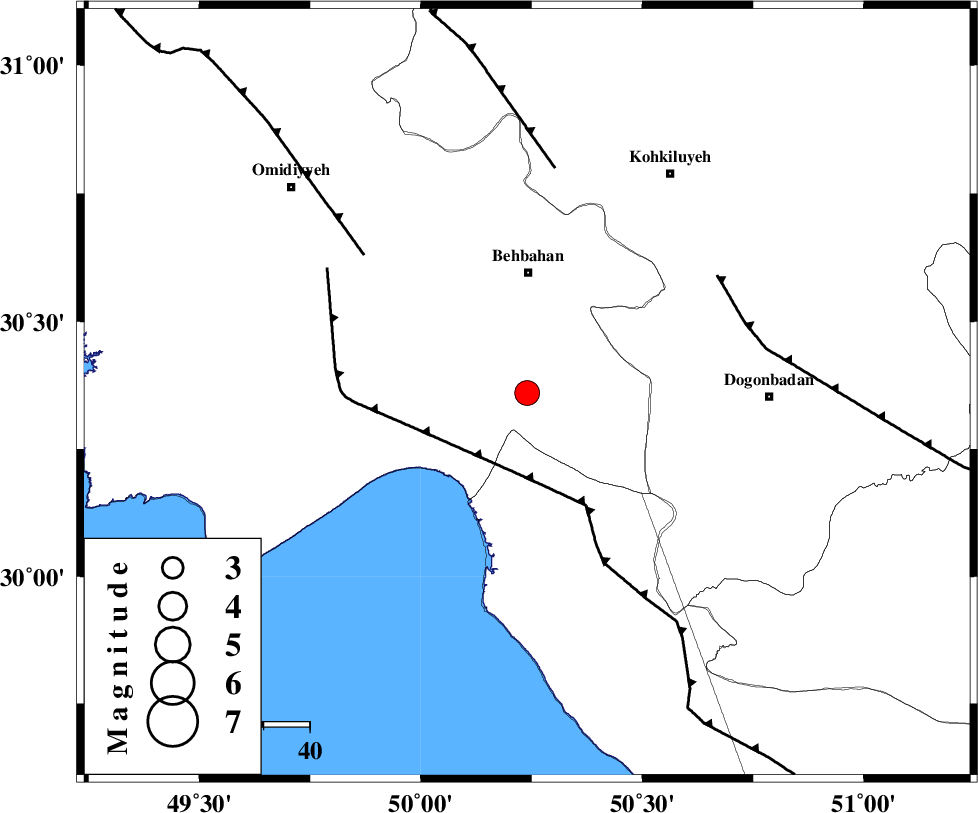

| Location | Lat:30.36 Lon: 50.24 |
| Region | 26 km South of Behbahan, Khoozestan Province |
Nearest Cities |
|
| 5 km North of Sardasht, Khoozestan Province | |
| 18 km North East of Darunak, Khoozestan Province | |
| 22 km North of Ameri, Bushehr Province | |
| 26 km South of Behbahan, Khoozestan Province | |
| 31 km South of Mansuriyeh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 18 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 28 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 46 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >2.9 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 40515 | IIEES | SHGR | N | 434.6 | 0.48 | 2007-12-12 17:40:14 | 2008-04-12 10:47:00 | n |
| 40516 | IIEES | SHGR | E | 438.7 | 0.52 | 2007-12-12 17:40:27 | 2008-04-12 10:47:00 | n |
| 40517 | IIEES | GHIR | N | 98.9 | 0.48 | 2007-12-12 17:40:53 | 2008-04-12 10:47:00 | n |
| 40518 | IIEES | GHIR | E | 95.6 | 0.64 | 2007-12-12 17:41:01 | 2008-04-12 10:47:00 | n |
| 40519 | IIEES | SNGE | N | 18.4 | 0.48 | 2007-12-12 17:41:22 | 2008-04-12 10:47:00 | n |
| 40520 | IIEES | KRBR | N | 17.1 | 0.56 | 2007-12-12 17:41:33 | 2008-04-12 10:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2007-12-12 17:39:38 | -0.1 | y | 237 | 325 | |||
| IIEES | SHGR | N | Sg | E | 2007-12-12 17:40:06 | 0 | y | 237 | 325 | |||
| IIEES | GHIR | Z | Pn | E | 2007-12-12 17:39:51 | 0.1 | y | 352 | 130 | |||
| IIEES | NASN | Z | Pn | E | 2007-12-12 17:39:52 | -0.1 | y | 364 | 41 | |||
| IIEES | ASAO | Z | Pn | E | 2007-12-12 17:40:05 | 0.1 | y | 465 | 358 | |||
| IIEES | GHVR | Z | Pn | E | 2007-12-12 17:40:05 | 0.1 | y | 467 | 11 | |||
| IIEES | SNGE | Z | Pn | E | 2007-12-12 17:40:20 | -0.1 | y | 591 | 333 | |||
| IIEES | KRBR | Z | Pn | E | 2007-12-12 17:40:25 | -0.1 | y | 630 | 92 | |||
