Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2007-12-22 05:38:22.2 |
| Date & Time (Local) | 1386/10/1 09:08:22.2 |
| Location | Lat:31.72 Lon: 50.52 |
| Region | 33 km South-West of Ardel, Chaharmahal Bakhtiari Province |
Nearest Cities |
|
| 4 km of Sarkhun, Chaharmahal Bakhtiari Province | |
| 24 km East of Dehdez, Khoozestan Province | |
| 24 km South of Dupelan, Chaharmahal Bakhtiari Province | |
| 27 km North West of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 32 km South West of Naghan, Chaharmahal Bakhtiari Province | |
| Depth | 15 km |
| Agency | |

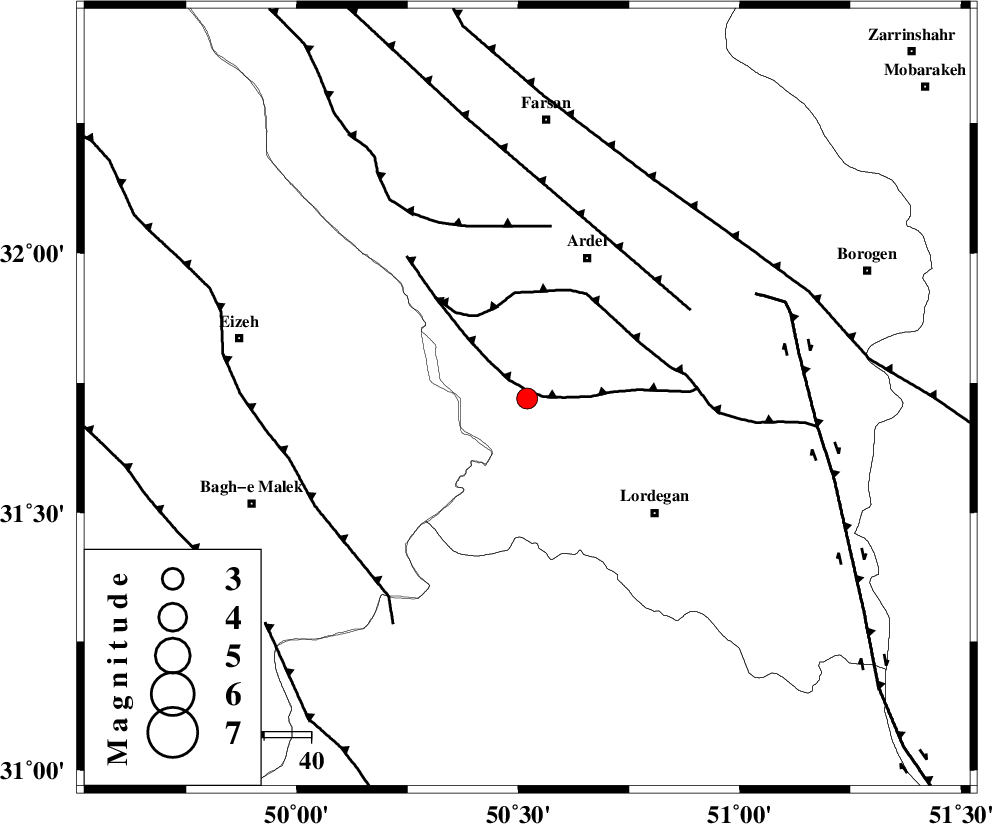

Faults within 150 km: |
|
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 2 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 21 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 37 km | |
| Number of Phases | 8 |
| RMS | 0.4 |
| Number of Stations | 6 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 40633 | IIEES | SHGR | N | 155.7 | 0.47 | 2007-12-22 05:39:20 | 2008-04-12 10:47:00 | n |
| 40634 | IIEES | SHGR | E | 157 | 0.51 | 2007-12-22 05:39:23 | 2008-04-12 10:47:00 | n |
| 40635 | IIEES | GHVR | N | 30.2 | 0.71 | 2007-12-22 05:39:56 | 2008-04-12 10:47:00 | n |
| 40636 | IIEES | ASAO | N | 45.7 | 0.68 | 2007-12-22 05:39:58 | 2008-04-12 10:47:00 | n |
| 40637 | IIEES | ASAO | E | 32.6 | 0.68 | 2007-12-22 05:40:02 | 2008-04-12 10:47:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2007-12-22 05:38:49 | 0.1 | y | 168 | 285 | |||
| IIEES | NASN | Z | Pn | E | 2007-12-22 05:39:00 | 0 | y | 247 | 60 | |||
| IIEES | NASN | N | Sg | E | 2007-12-22 05:39:32 | -0.1 | y | 247 | 60 | |||
| IIEES | GHVR | Z | Pn | E | 2007-12-22 05:39:09 | 0.8 | y | 314 | 12 | |||
| IIEES | ASAO | Z | Pn | E | 2007-12-22 05:39:09 | -0.4 | y | 318 | 352 | |||
| IIEES | ASAO | N | Sg | E | 2007-12-22 05:39:51 | 0 | y | 318 | 352 | |||
| IIEES | DAMV | Z | Pn | E | 2007-12-22 05:39:26 | -0.3 | y | 455 | 17 | |||
| IIEES | SNGE | Z | Pn | E | 2007-12-22 05:39:28 | -0.2 | y | 477 | 323 | |||
