Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2008-01-09 20:54:27.4 |
| Date & Time (Local) | 1386/10/20 00:24:27.4 |

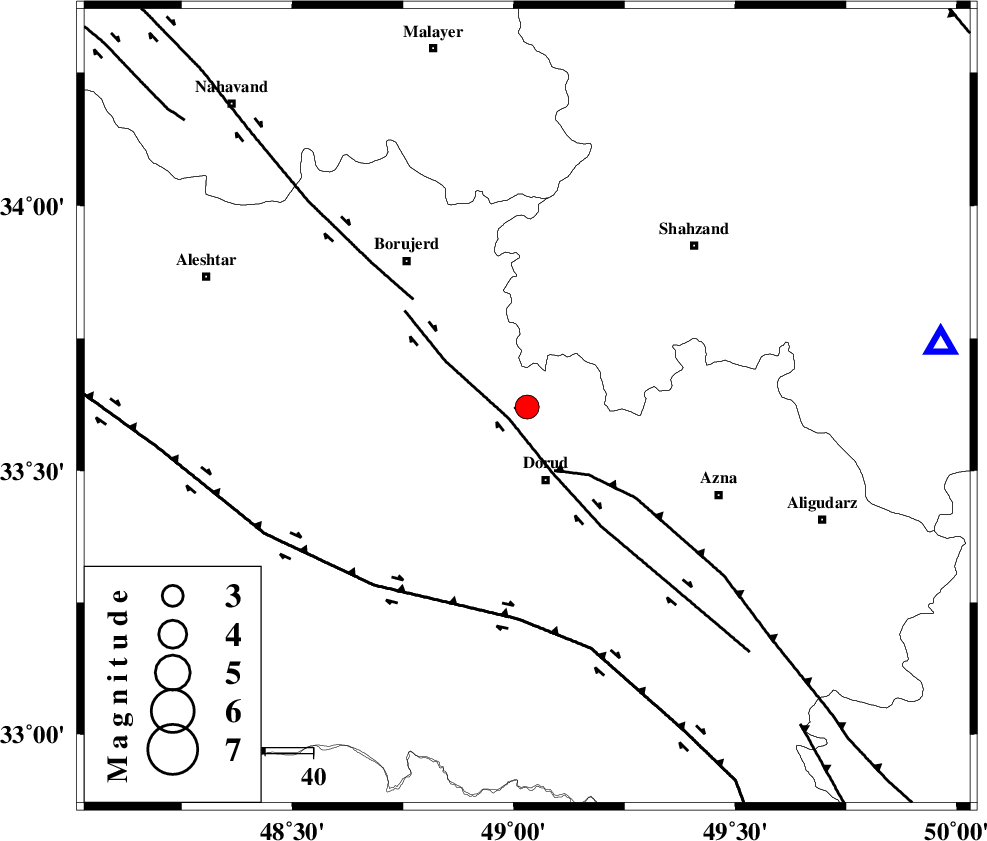

| Location | Lat:33.62 Lon: 49.03 |
| Region | 16 km North of Dorud, Lorestan Province |
Nearest Cities |
|
| 7 km North of Kagheh, Lorestan Province | |
| 12 km North of Void, Lorestan Province | |
| 12 km North West of Zhan, Lorestan Province | |
| 14 km East of Chalanchulan, Lorestan Province | |
| 16 km North East of Razan, Lorestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 5 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 33 km | |
| Number of Phases | 8 |
| RMS | 0.5 |
| Number of Stations | 8 |
| Error in Latitude | >8.1 km |
| Error in Longitude | 15 km |
| Error in Depth | 14.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 47838 | IIEES | ASAO | N | 633.1 | 0.66 | 2008-01-09 20:55:09 | 2008-12-28 01:25:00 | n |
| 47839 | IIEES | ASAO | E | 625.8 | 0.51 | 2008-01-09 20:55:10 | 2008-12-28 01:25:00 | n |
| 47840 | IIEES | SHGR | N | 1677.5 | 0.87 | 2008-01-09 20:55:22 | 2008-12-28 01:25:00 | n |
| 47841 | IIEES | SHGR | E | 688.3 | 0.87 | 2008-01-09 20:55:26 | 2008-12-28 01:25:00 | n |
| 47842 | IIEES | GHVR | N | 186 | 0.55 | 2008-01-09 20:55:41 | 2008-12-28 01:25:00 | n |
| 47843 | IIEES | GHVR | E | 226.1 | 0.28 | 2008-01-09 20:55:43 | 2008-12-28 01:25:00 | n |
| 47844 | IIEES | THKV | N | 106.6 | 0.36 | 2008-01-09 20:55:54 | 2008-12-28 01:25:00 | n |
| 47845 | IIEES | THKV | E | 95.6 | 0.12 | 2008-01-09 20:55:54 | 2008-12-28 01:25:00 | n |
| 47846 | IIEES | DAMV | N | 58.3 | 0.75 | 2008-01-09 20:56:15 | 2008-12-28 01:25:00 | n |
| 47847 | IIEES | DAMV | E | 74.1 | 0.3 | 2008-01-09 20:56:20 | 2008-12-28 01:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ASAO | Z | Pg | E | 2008-01-09 20:54:49 | -0.8 | y | 138 | 42 | |||
| IIEES | SHGR | Z | Pg | E | 2008-01-09 20:54:55 | -0.3 | y | 169 | 187 | |||
| IIEES | GHVR | Z | Pg | E | 2008-01-09 20:55:04 | -0.2 | y | 226 | 64 | |||
| IIEES | THKV | Z | Pn | E | 2008-01-09 20:55:13 | 0.1 | y | 306 | 33 | |||
| IIEES | CHTH | Z | Pn | E | 2008-01-09 20:55:15 | 0.3 | y | 318 | 37 | |||
| IIEES | ZNJK | Z | Pn | E | 2008-01-09 20:55:17 | 0.3 | y | 340 | 355 | |||
| IIEES | DAMV | Z | Pn | E | 2008-01-09 20:55:18 | 0.2 | y | 350 | 50 | |||
| IIEES | NASN | Z | Pn | E | 2008-01-09 20:55:21 | 0.8 | y | 364 | 103 | |||
