Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2008-02-22 04:43:00.6 |
| Date & Time (Local) | 1386/12/3 08:13:00.6 |

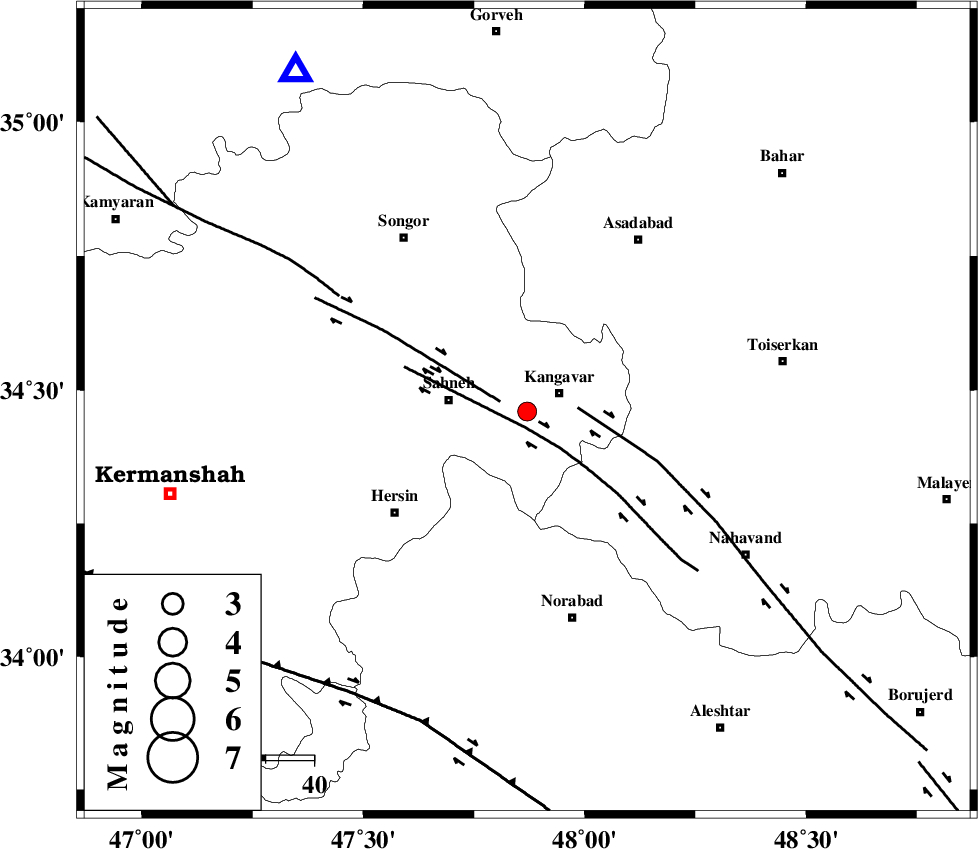

| Location | Lat:34.46 Lon: 47.87 |
| Region | 7 km Kangavar, Kermanshah Province |
Nearest Cities |
|
| 3 km of Qazvineh, Kermanshah Province | |
| 5 km North of Sarab dehlor, Kermanshah Province | |
| 6 km North of Karmanjan, Kermanshah Province | |
| 8 km of Kangavar, Kermanshah Province | |
| 12 km of Fash, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SAHANEH_F (Length: 77 km) , Distance to epicenter: 3 km | |
| DINEHVAR_F (Length: 46 km) , Distance to epicenter: 6 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 10 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 3 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 5.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 48308 | IIEES | SNGE | E | 255.3 | 0.2 | 2008-02-22 04:43:28 | 2008-12-28 01:25:00 | n |
| 48309 | IIEES | SNGE | N | 397 | 0.52 | 2008-02-22 04:43:30 | 2008-12-28 01:25:00 | n |
| 48310 | IIEES | GHVR | E | 24.9 | 0.56 | 2008-02-22 04:44:37 | 2008-12-28 01:25:00 | n |
| 48311 | IIEES | GHVR | N | 21.1 | 0.48 | 2008-02-22 04:44:40 | 2008-12-28 01:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pg | E | 2008-02-22 04:43:14 | -0.5 | y | 85.2 | 326 | |||
| IIEES | SNGE | N | Sg | E | 2008-02-22 04:43:26 | 0.3 | y | 85.2 | 326 | |||
| IIEES | ZNJK | Z | Pn | E | 2008-02-22 04:43:40 | 0.5 | y | 257 | 17 | |||
| IIEES | ZNJK | E | Sg | E | 2008-02-22 04:44:13 | -0.2 | y | 257 | 17 | |||
| IIEES | GHVR | Z | Pn | E | 2008-02-22 04:43:46 | 0 | y | 310 | 89 | |||
