Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2008-04-22 03:20:48.9 |
| Date & Time (Local) | 1387/2/3 07:50:48.9 |

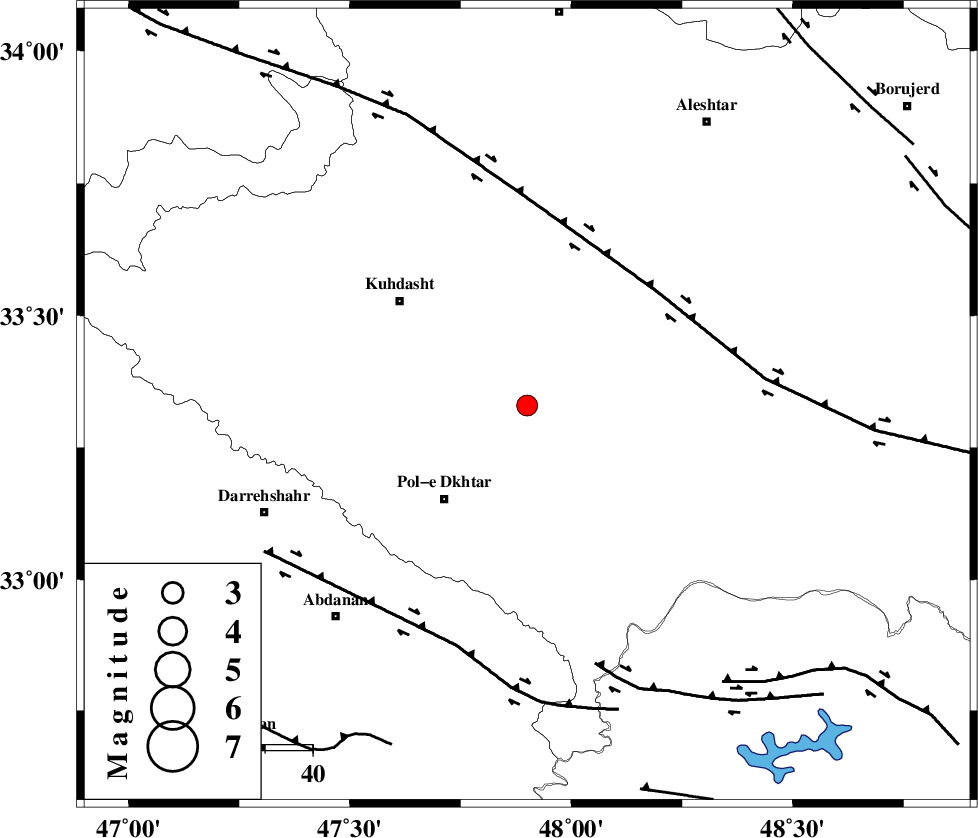

| Location | Lat:33.33 Lon: 47.9 |
| Region | 26 km North-East of Pol-e dokhtar, Lorestan Province |
Nearest Cities |
|
| 8 km of Maeulan, Lorestan Province | |
| 19 km North East of Morani, Lorestan Province | |
| 22 km South West of Mahmudvand, Lorestan Province | |
| 26 km North East of Pol-e dokhtar, Lorestan Province | |
| 27 km South West of Godar-e mahmudvand, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 36 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 53 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 56 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 7 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 48958 | IIEES | SHGR | N | 219.5 | 0.48 | 2008-04-22 03:21:37 | 2009-01-18 12:56:00 | n |
| 48959 | IIEES | SHGR | E | 193.9 | 0.48 | 2008-04-22 03:21:45 | 2009-01-18 12:56:00 | n |
| 48960 | IIEES | SNGE | N | 130.7 | 0.57 | 2008-04-22 03:21:53 | 2009-01-18 12:56:00 | n |
| 48961 | IIEES | SNGE | E | 107.3 | 0.71 | 2008-04-22 03:21:56 | 2009-01-18 12:56:00 | n |
| 48962 | IIEES | ASAO | E | 77.7 | 0.53 | 2008-04-22 03:22:02 | 2009-01-18 12:56:00 | n |
| 48963 | IIEES | ASAO | N | 74.3 | 0.6 | 2008-04-22 03:22:03 | 2009-01-18 12:56:00 | n |
| 48964 | IIEES | GHVR | N | 33.9 | 0.64 | 2008-04-22 03:22:33 | 2009-01-18 12:56:00 | n |
| 48965 | IIEES | GHVR | E | 26.1 | 0.55 | 2008-04-22 03:22:35 | 2009-01-18 12:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2008-04-22 03:21:15 | -0.4 | y | 160 | 148 | |||
| IIEES | SHGR | N | Sg | E | 2008-04-22 03:21:35 | 0.2 | y | 160 | 148 | |||
| IIEES | SNGE | Z | Pg | E | 2008-04-22 03:21:21 | -0.3 | y | 202 | 346 | |||
| IIEES | ASAO | Z | Pn | E | 2008-04-22 03:21:26 | -0.1 | y | 238 | 55 | |||
| IIEES | ASAO | N | Sg | E | 2008-04-22 03:21:56 | -0.2 | y | 238 | 55 | |||
| IIEES | GHVR | Z | Pn | E | 2008-04-22 03:21:38 | 0 | y | 335 | 67 | |||
| IIEES | ZNJK | Z | Pn | E | 2008-04-22 03:21:44 | 0.6 | y | 377 | 11 | |||
| IIEES | CHTH | Z | Pn | E | 2008-04-22 03:21:47 | 0 | y | 411 | 45 | |||
| IIEES | DAMV | Z | Pn | E | 2008-04-22 03:21:53 | 0.5 | y | 453 | 55 | |||
