Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2008-05-15 05:22:08.0 |
| Date & Time (Local) | 1387/2/26 09:52:08.0 |

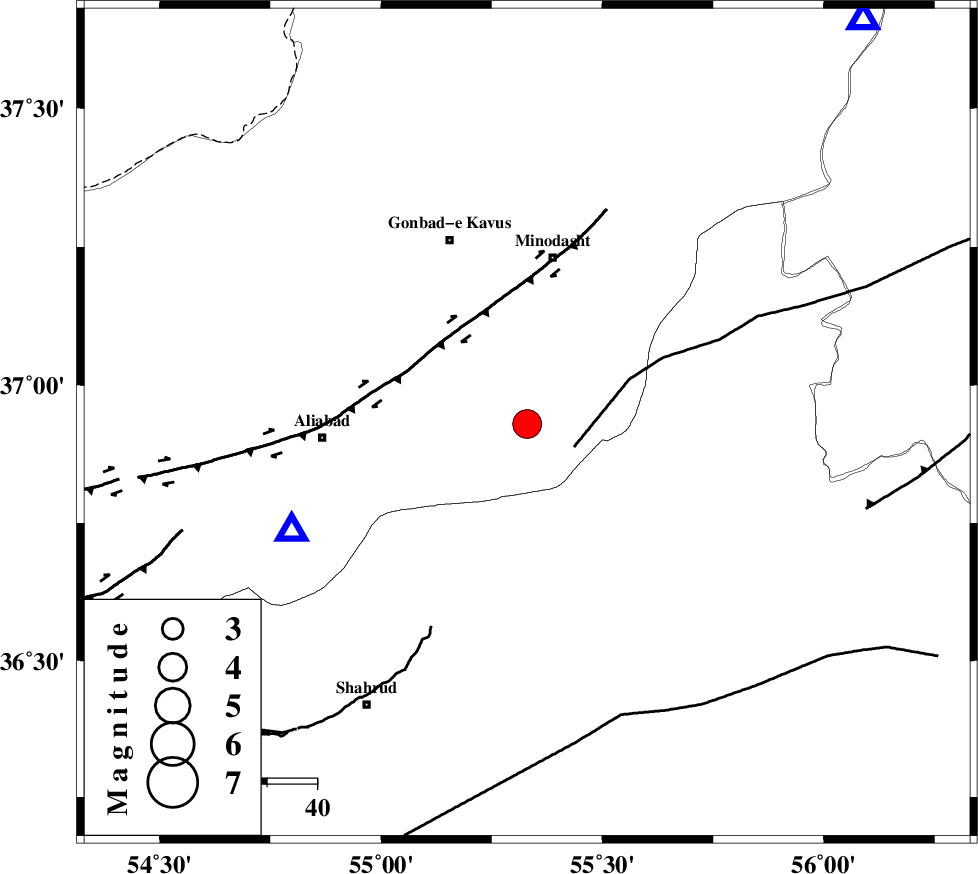

| Location | Lat:36.93 Lon: 55.33 |
| Region | 18 km East of Ramian, Golestan Province |
Nearest Cities |
|
| 9 km of Farsian, Golestan Province | |
| 18 km South East of Khanduz, Golestan Province | |
| 19 km East of Ramian, Golestan Province | |
| 19 km South West of Qale-ye qafeh, Golestan Province | |
| 22 km South East of Azadshahr, Golestan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 11 km | |
| SHAVAR_F (Length: 87 km) , Distance to epicenter: 20 km | |
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 34 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >5 km |
| Error in Longitude | 6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 49156 | IIEES | MRVT | N | 6686.7 | 0.23 | 2008-05-15 05:22:45 | 2009-01-18 12:56:00 | n |
| 49157 | IIEES | MRVT | E | 6649 | 0.25 | 2008-05-15 05:22:45 | 2009-01-18 12:56:00 | n |
| 49158 | IIEES | DAMV | E | 497.4 | 0.6 | 2008-05-15 05:23:46 | 2009-01-18 12:56:00 | n |
| 49159 | IIEES | DAMV | N | 553.4 | 0.45 | 2008-05-15 05:23:48 | 2009-01-18 12:56:00 | n |
| 49160 | IIEES | THKV | N | 342.8 | 0.74 | 2008-05-15 05:24:09 | 2009-01-18 12:56:00 | n |
| 49161 | IIEES | THKV | E | 391.9 | 0.74 | 2008-05-15 05:24:13 | 2009-01-18 12:56:00 | n |
| 49162 | IIEES | GHVR | E | 217 | 0.67 | 2008-05-15 05:24:25 | 2009-01-18 12:56:00 | n |
| 49163 | IIEES | GHVR | N | 190.1 | 0.55 | 2008-05-15 05:24:36 | 2009-01-18 12:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MRVT | Z | Pg | E | 2008-05-15 05:22:26 | -0.1 | y | 106 | 40 | |||
| IIEES | MRVT | E | Sg | E | 2008-05-15 05:22:39 | 0.1 | y | 106 | 40 | |||
| IIEES | DAMV | Z | Pn | E | 2008-05-15 05:22:58 | 0 | y | 334 | 245 | |||
| IIEES | CHTH | Z | Pn | E | 2008-05-15 05:23:05 | -0.2 | y | 393 | 255 | |||
| IIEES | THKV | Z | Pn | E | 2008-05-15 05:23:08 | 0.1 | y | 414 | 256 | |||
| IIEES | GHVR | Z | Pn | E | 2008-05-15 05:23:13 | 0.3 | y | 458 | 235 | |||
| IIEES | NASN | Z | Pn | E | 2008-05-15 05:23:20 | -0.1 | y | 512 | 207 | |||
