Systems
Event Specification

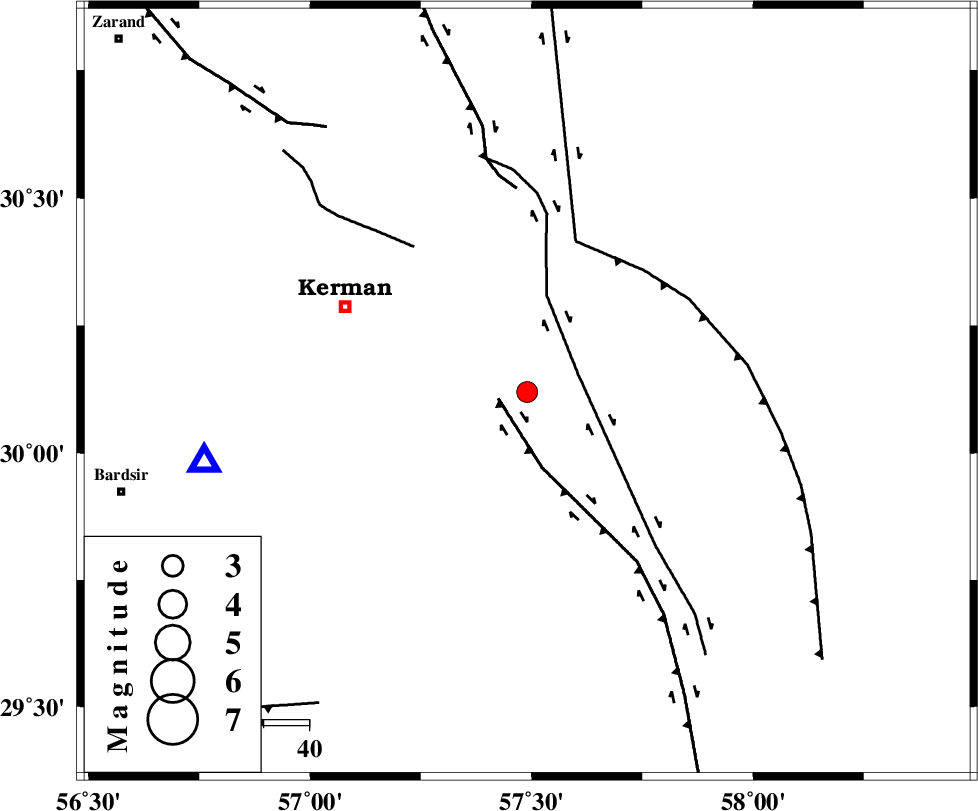

 Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 3
Date & Time (UTC) 2008-05-21 03:22:25.8
Date & Time (Local) 1387/3/1  07:52:25.8
Location Lat:30.12 Lon: 57.49
Region 43 km South-East of Kerman, Kerman Province
Nearest Cities
11 km of Sirch, Kerman Province
13 km North West of Jushan, Kerman Province
21 km North East of Mahan, Kerman Province
21 km North East of Langar, Kerman Province
25 km North East of Mohiabad, Kerman Province
Depth 14 km
Agency
Faults within 150 km:
GOWK_F (Length: 152 km) , Distance to epicenter: 6 km
GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 12 km
NAYBAND_F (Length: 258 km) , Distance to epicenter: 34 km
Number of Phases 5
RMS 0.1
Number of Stations 3
Error in Latitude >2.7 km
Error in Longitude 3.4 km
Error in Depth 8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
49182IIEESKRBRN 1306.90.182008-05-21 03:22:482009-01-18 12:56:00n
49183IIEESKRBRE 803.10.112008-05-21 03:22:482009-01-18 12:56:00n
49184IIEESZHSFE 39.30.512008-05-21 03:24:022009-01-18 12:56:00n
49185IIEESZHSFN 44.60.462008-05-21 03:24:022009-01-18 12:56:00n
49186IIEESBNDSN 46.90.32008-05-21 03:24:042009-01-18 12:56:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEESKRBRZ Pg E2008-05-21 03:22:38-0.2y72258
IIEESKRBRN Sg E2008-05-21 03:22:470.1y72258
IIEESZHSFZ Pn E2008-05-21 03:23:130.1y32299
IIEESBNDSZ Pn E2008-05-21 03:23:14-0.1y328203
IIEESBNDSN Sg E2008-05-21 03:23:570y328203
