Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2008-05-24 05:21:35.8 |
| Date & Time (Local) | 1387/3/4 09:51:35.8 |
| Location | Lat:29.22 Lon: 58.41 |
| Region | 13 km North of Bam, Kerman Province |
Nearest Cities |
|
| 10 km North of Poshtrud, Kerman Province | |
| 13 km North of Bam, Kerman Province | |
| 19 km North of Baravat, Kerman Province | |
| 37 km North West of Qasemabad, Kerman Province | |
| 37 km North West of Abshur-e nezamabad, Kerman Province | |
| Depth | 14 km |
| Agency | |

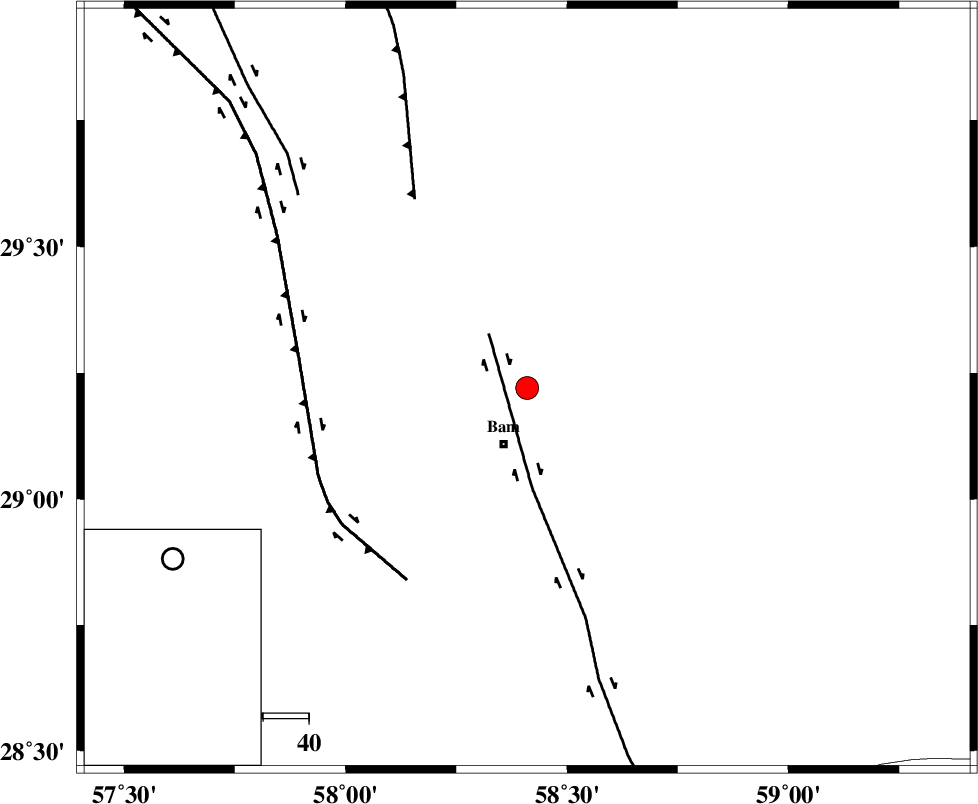

Faults within 150 km: |
|
| BAM_F (Length: 118 km) , Distance to epicenter: 15 km | |
| SHAHDAD_F (Length: 108 km) , Distance to epicenter: 48 km | |
| GOWK_F (Length: 152 km) , Distance to epicenter: 50 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >9.9 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 13.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 49208 | IIEES | KRBR | N | 619.7 | 0.28 | 2008-05-24 05:22:29 | 2009-01-18 12:56:00 | n |
| 49209 | IIEES | BNDS | N | 70.9 | 0.58 | 2008-05-24 05:23:14 | 2009-01-18 12:56:00 | n |
| 49210 | IIEES | GHIR | E | 10.4 | 0.27 | 2008-05-24 05:23:53 | 2009-01-18 12:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2008-05-24 05:22:05 | 0 | y | 181 | 298 | |||
| IIEES | ZHSF | Z | Pg | E | 2008-05-24 05:22:14 | 0 | y | 233 | 79 | |||
| IIEES | BNDS | Z | Pn | E | 2008-05-24 05:22:20 | 0 | y | 298 | 228 | |||
| IIEES | GHIR | Z | Pn | E | 2008-05-24 05:22:50 | 0.1 | y | 540 | 260 | |||
