Event Specification
Magnitude |
5.4 |
| Date & Time (UTC) | 2008-05-27 06:18:04.1 |
| Date & Time (Local) | 1387/3/7 10:48:04.1 |

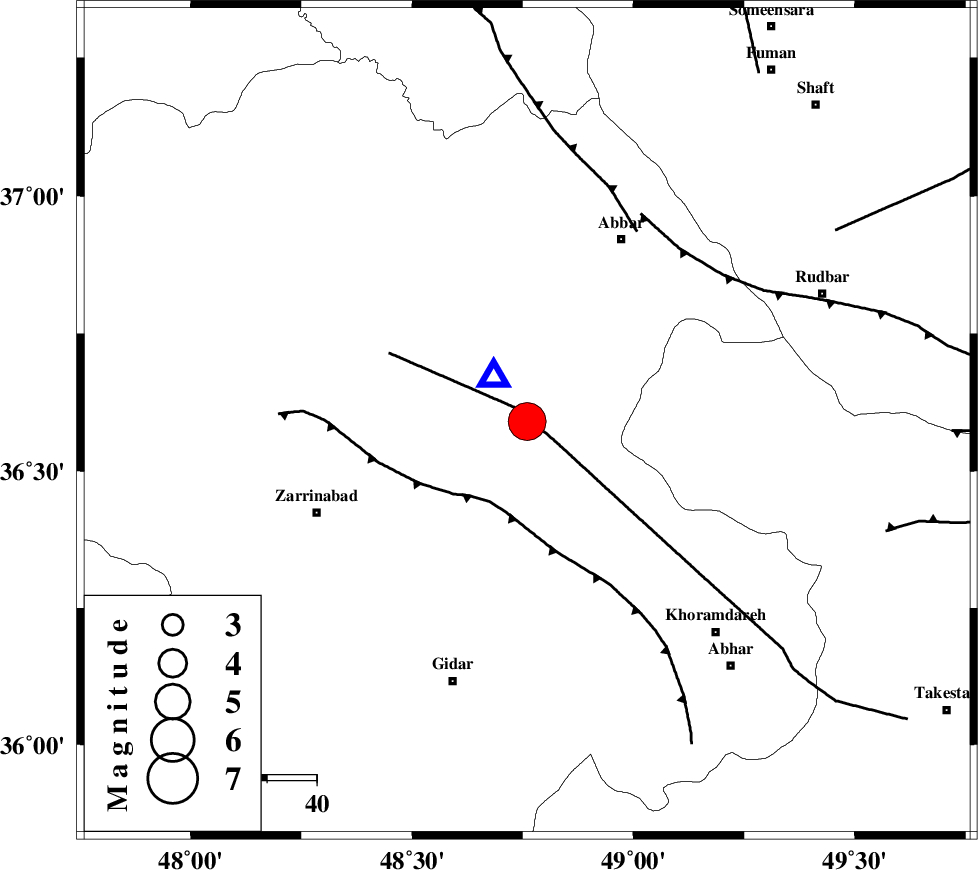

| Location | Lat:36.59 Lon: 48.76 |
| Region | 26 km East of Zanjan, Zanjan Province |
Nearest Cities |
|
| 7 km North of Bonab, Zanjan Province | |
| 11 km North of Qare belagh, Zanjan Province | |
| 18 km North of Soltanie, Zanjan Province | |
| 20 km North West of Sonbolabad, Zanjan Province | |
| 25 km South West of Chorzag, Zanjan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZANJAN_F (Length: 137 km) , Distance to epicenter: 3 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 18 km | |
| MASULEL_F (Length: 90 km) , Distance to epicenter: 44 km | |
| Number of Phases | 13 |
| RMS | 0.6 |
| Number of Stations | 9 |
| Error in Latitude | >6.2 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 49241 | IIEES | THKV | N | 35068.8 | 0.44 | 2008-05-27 06:19:04 | 2009-01-18 12:56:00 | n |
| 49242 | IIEES | THKV | E | 42431.2 | 0.58 | 2008-05-27 06:19:07 | 2009-01-18 12:56:00 | n |
| 49243 | IIEES | SNGE | N | 30200.6 | 0.57 | 2008-05-27 06:19:05 | 2009-01-18 12:56:00 | n |
| 49244 | IIEES | SNGE | E | 36347.1 | 0.57 | 2008-05-27 06:19:05 | 2009-01-18 12:56:00 | n |
| 49245 | IIEES | DAMV | N | 9762.7 | 0.64 | 2008-05-27 06:19:34 | 2009-01-18 12:56:00 | n |
| 49246 | IIEES | GHVR | N | 10224.2 | 0.48 | 2008-05-27 06:19:43 | 2009-01-18 12:56:00 | n |
| 49247 | IIEES | GHVR | E | 10832 | 0.63 | 2008-05-27 06:19:49 | 2009-01-18 12:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2008-05-27 06:18:07 | 0.1 | y | 10.9 | 323 | |||
| IIEES | THKV | Z | Pg | E | 2008-05-27 06:18:37 | -0.3 | y | 205 | 111 | |||
| IIEES | THKV | N | Sg | E | 2008-05-27 06:19:02 | 0.5 | y | 205 | 111 | |||
| IIEES | SNGE | Z | Pg | E | 2008-05-27 06:18:38 | -0.6 | y | 210 | 218 | |||
| IIEES | SNGE | N | Sg | E | 2008-05-27 06:19:03 | -0.2 | y | 210 | 218 | |||
| IIEES | CHTH | Z | Pg | E | 2008-05-27 06:18:40 | -0.8 | y | 226 | 109 | |||
| IIEES | ASAO | Z | Pn | E | 2008-05-27 06:18:44 | 0.5 | y | 254 | 153 | |||
| IIEES | DAMV | Z | Pn | E | 2008-05-27 06:18:50 | 0.5 | y | 308 | 109 | |||
| IIEES | DAMV | N | Sg | E | 2008-05-27 06:19:29 | -1 | y | 308 | 109 | |||
| IIEES | GHVR | Z | Pn | E | 2008-05-27 06:18:52 | 0.6 | y | 325 | 135 | |||
| IIEES | GHVR | E | Sg | E | 2008-05-27 06:19:35 | 0.6 | y | 325 | 135 | |||
| IIEES | MAKU | Z | Pn | E | 2008-05-27 06:19:10 | 0.2 | y | 471 | 312 | |||
| IIEES | KRBR | Z | Pn | E | 2008-05-27 06:20:22 | 0.6 | y | 1045 | 132 | |||
