Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2008-08-24 01:46:23.2 |
| Date & Time (Local) | 1387/6/3 06:16:23.2 |

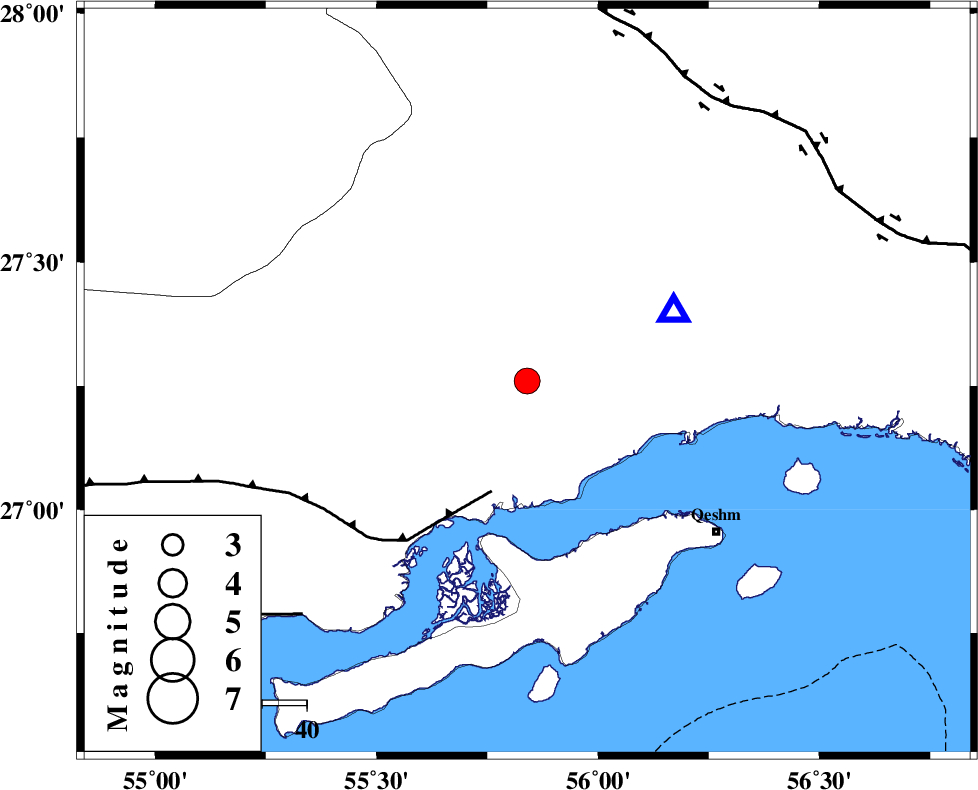

| Location | Lat:27.26 Lon: 55.84 |
| Region | 44 km West of Bandar-e abbas, Hormozgan Province |
Nearest Cities |
|
| 42 km South of Fin, Hormozgan Province | |
| 42 km North East of Bandar-e khamir, Hormozgan Province | |
| 45 km North West of Bandar-e abbas, Hormozgan Province | |
| 54 km North West of Qeshm, Hormozgan Province | |
| 58 km North West of Suza, Hormozgan Province | |
| Depth | 1 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 26 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 72 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 76 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >5.4 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 3.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 49920 | IIEES | KRBR | E | 443.7 | 0.9 | 2008-08-24 01:47:54 | 2009-05-05 01:27:00 | n |
| 49921 | IIEES | KRBR | N | 358.6 | 0.76 | 2008-08-24 01:47:54 | 2009-05-05 01:27:00 | n |
| 49922 | IIEES | ZHSF | N | 14.2 | 0.41 | 2008-08-24 01:49:14 | 2009-05-05 01:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2008-08-24 01:46:29 | 0 | y | 36.2 | 65 | |||
| IIEES | KRBR | Z | Pn | E | 2008-08-24 01:47:11 | 0.1 | y | 315 | 16 | |||
| IIEES | KRBR | N | Sn | 2008-08-24 01:47:47 | 0 | y | 315 | 16 | ||||
| IIEES | ZHSF | Z | Pn | E | 2008-08-24 01:47:40 | 0 | y | 549 | 61 | |||
| IIEES | NASN | Z | Pn | E | 2008-08-24 01:47:57 | -0.1 | y | 680 | 335 | |||
