Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2008-09-17 19:17:48.6 |
| Date & Time (Local) | 1387/6/27 23:47:48.6 |

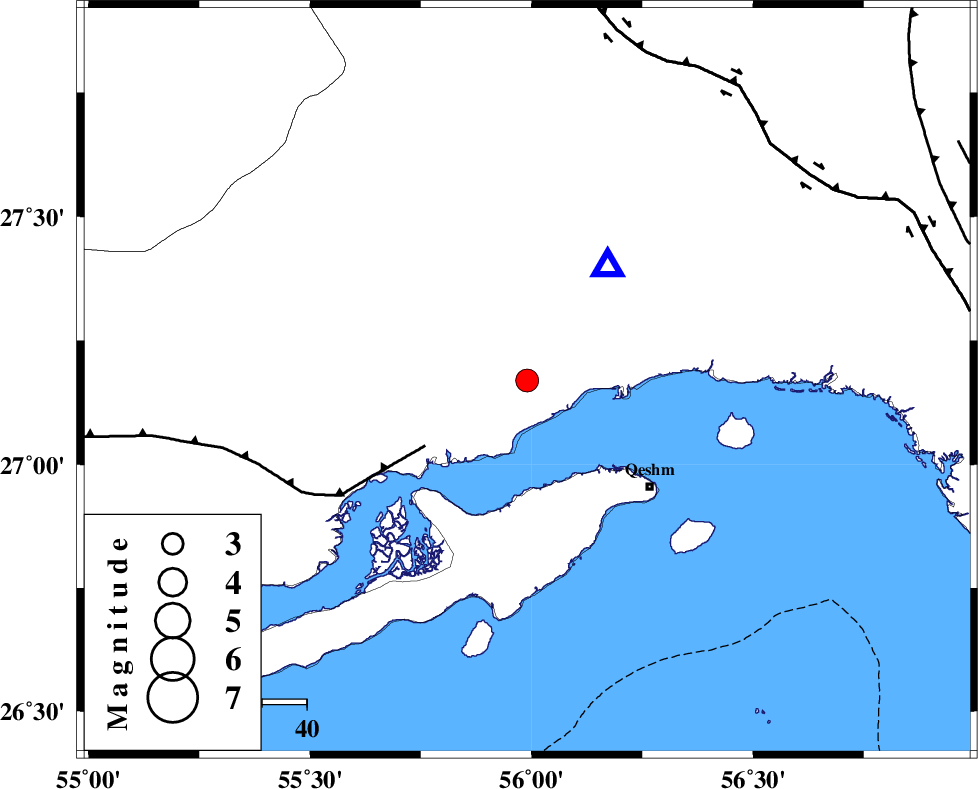

| Location | Lat:27.17 Lon: 55.99 |
| Region | 29 km West of Bandar-e abbas, Hormozgan Province |
Nearest Cities |
|
| 29 km West of Bandar-e abbas, Hormozgan Province | |
| 36 km North West of Qeshm, Hormozgan Province | |
| 44 km North of Suza, Hormozgan Province | |
| 47 km North East of Bandar-e khamir, Hormozgan Province | |
| 53 km South of Fin, Hormozgan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 27 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 76 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 78 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 2.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 50441 | IIEES | KRBR | N | 72.6 | 0.56 | 2008-09-17 19:19:29 | 2009-05-05 01:27:00 | n |
| 50442 | IIEES | KRBR | E | 72.1 | 0.56 | 2008-09-17 19:19:30 | 2009-05-05 01:27:00 | n |
| 50443 | IIEES | NASN | N | 5.9 | 0.6 | 2008-09-17 19:20:39 | 2009-05-05 01:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2008-09-17 19:17:54 | 0.1 | y | 31.5 | 35 | |||
| IIEES | BNDS | E | Sg | E | 2008-09-17 19:17:58 | -0.1 | y | 31.5 | 35 | |||
| IIEES | KRBR | Z | Pn | E | 2008-09-17 19:18:37 | 0.1 | y | 321 | 13 | |||
| IIEES | KRBR | E | Sn | 2008-09-17 19:19:12 | 0 | y | 321 | 13 | ||||
| IIEES | ZHSF | Z | Pn | E | 2008-09-17 19:19:04 | -0.1 | y | 542 | 59 | |||
| IIEES | NASN | Z | Pn | E | 2008-09-17 19:19:23 | -0.2 | y | 696 | 335 | |||
