Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2008-10-03 21:21:32.1 |
| Date & Time (Local) | 1387/7/13 00:51:32.1 |

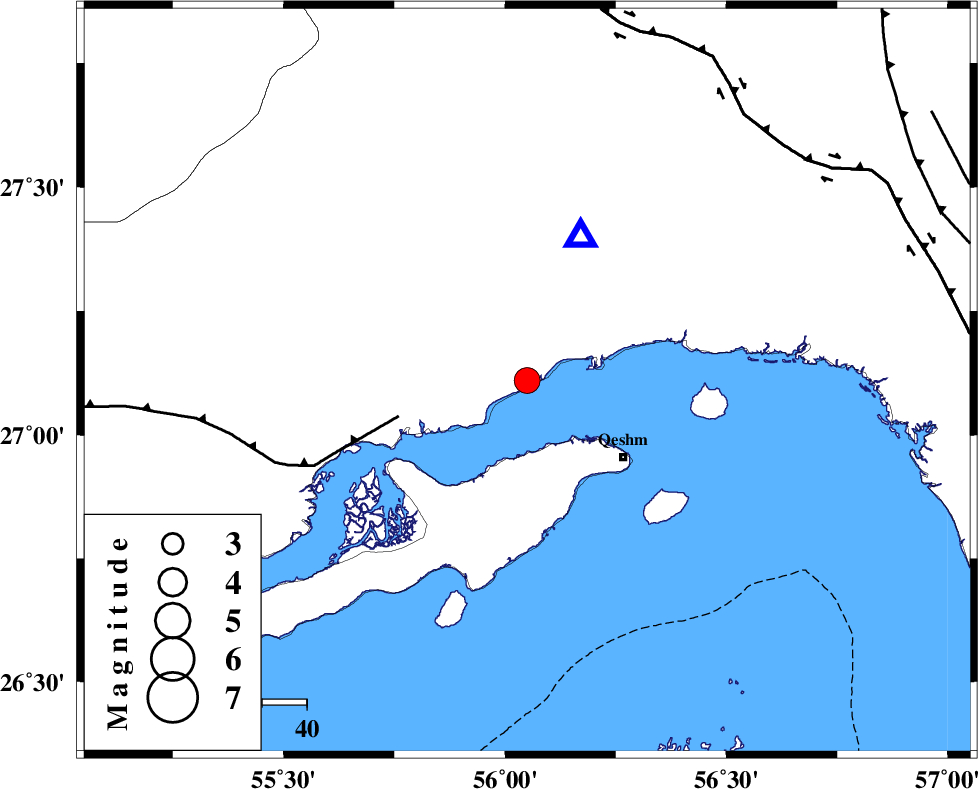

| Location | Lat:27.11 Lon: 56.05 |
| Region | Persian Gulf, 24 km West of Bandar-e abbas |
Nearest Cities |
|
| 24 km West of Bandar-e abbas, Hormozgan Province | |
| 27 km North West of Qeshm, Hormozgan Province | |
| 37 km North of Suza, Hormozgan Province | |
| 49 km North East of Bandar-e khamir, Hormozgan Province | |
| 60 km South East of Fin, Hormozgan Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 30 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 77 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 79 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >4.6 km |
| Error in Longitude | 8 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 50652 | IIEES | BNDS | N | 6384.9 | 0.32 | 2008-10-03 21:21:50 | 2009-05-17 10:07:00 | n |
| 50653 | IIEES | KRBR | E | 198.1 | 0.36 | 2008-10-03 21:23:12 | 2009-05-17 10:07:00 | n |
| 50654 | IIEES | KRBR | N | 192.5 | 0.48 | 2008-10-03 21:23:15 | 2009-05-17 10:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2008-10-03 21:21:38 | 0 | y | 34.8 | 21 | |||
| IIEES | BNDS | N | Sg | E | 2008-10-03 21:21:43 | 0 | y | 34.8 | 21 | |||
| IIEES | KRBR | Z | Pn | E | 2008-10-03 21:22:21 | 0 | y | 326 | 12 | |||
| IIEES | KRBR | E | Sn | 2008-10-03 21:22:56 | 0 | y | 326 | 12 | ||||
| IIEES | NASN | Z | Pn | E | 2008-10-03 21:23:08 | 0 | y | 704 | 334 | |||
