Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2008-10-22 09:12:12.6 |
| Date & Time (Local) | 1387/8/1 12:42:12.6 |

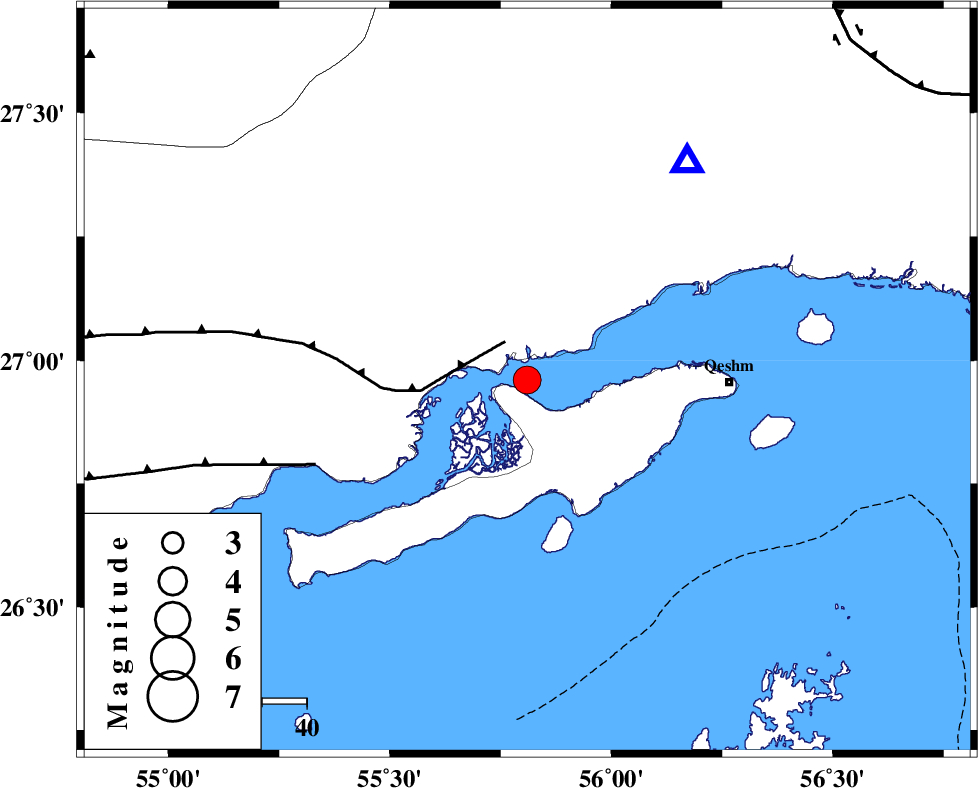

| Location | Lat:26.96 Lon: 55.81 |
| Region | Persian Gulf, 45 km West of Qeshm |
Nearest Cities |
|
| 22 km North East of Bandar-e khamir, Hormozgan Province | |
| 32 km North West of Suza, Hormozgan Province | |
| 45 km North West of Qeshm, Hormozgan Province | |
| 53 km South West of Bandar-e abbas, Hormozgan Province | |
| 76 km South of Fin, Hormozgan Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 10 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 51 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 105 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >6.5 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 50876 | IIEES | BNDS | E | 9099.8 | 0.28 | 2008-10-22 09:12:33 | 2009-05-17 10:07:00 | n |
| 50877 | IIEES | BNDS | N | 8692.2 | 0.29 | 2008-10-22 09:12:34 | 2009-05-17 10:07:00 | n |
| 50878 | IIEES | KRBR | E | 250.2 | 0.55 | 2008-10-22 09:13:56 | 2009-05-17 10:07:00 | n |
| 50879 | IIEES | KRBR | N | 256.7 | 0.55 | 2008-10-22 09:13:58 | 2009-05-17 10:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2008-10-22 09:12:23 | 0 | y | 60.5 | 36 | |||
| IIEES | BNDS | N | Sg | E | 2008-10-22 09:12:31 | 0 | y | 60.5 | 36 | |||
| IIEES | KRBR | Z | Pn | E | 2008-10-22 09:13:04 | 0.1 | y | 348 | 15 | |||
| IIEES | NASN | Z | Pn | E | 2008-10-22 09:13:49 | 0 | y | 709 | 337 | |||
| IIEES | SHRT | Z | Pn | E | 2008-10-22 09:14:07 | -0.1 | y | 857 | 29 | |||
