Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2008-10-22 13:38:42.1 |
| Date & Time (Local) | 1387/8/1 17:08:42.1 |

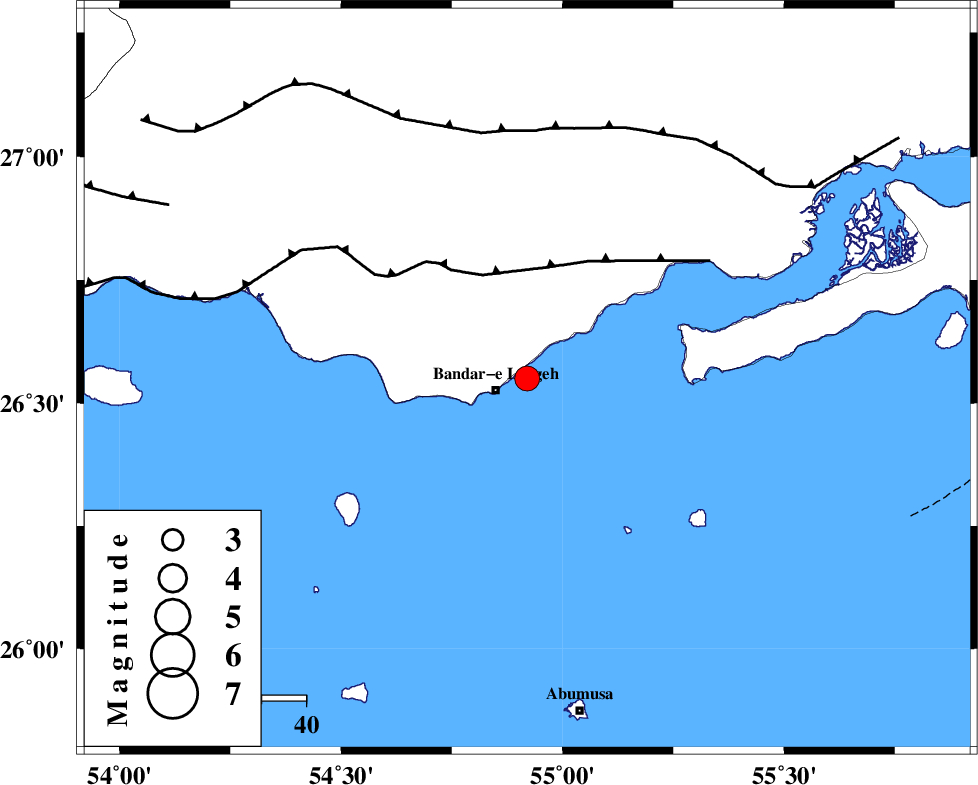

| Location | Lat:26.55 Lon: 54.92 |
| Region | Persian Gulf, 7 km Bandar-e lengeh |
Nearest Cities |
|
| 8 km North of Bandar-e lengeh, Hormozgan Province | |
| 76 km North West of Abu Musa, Hormozgan Province | |
| 80 km South West of Bandar-e khamir, Hormozgan Province | |
| 82 km South East of Jenah, Hormozgan Province | |
| 91 km South East of Bastak, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 25 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 56 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 89 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >10.6 km |
| Error in Longitude | 6.8 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 50883 | IIEES | BNDS | N | 760.9 | 0.56 | 2008-10-22 13:39:31 | 2009-05-17 10:07:00 | n |
| 50884 | IIEES | BNDS | E | 923.6 | 0.4 | 2008-10-22 13:39:33 | 2009-05-17 10:07:00 | n |
| 50885 | IIEES | KRBR | E | 60.8 | 0.56 | 2008-10-22 13:40:36 | 2009-05-17 10:07:00 | n |
| 50886 | IIEES | KRBR | N | 65.8 | 0.8 | 2008-10-22 13:40:38 | 2009-05-17 10:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2008-10-22 13:39:08 | 0 | y | 156 | 52 | |||
| IIEES | BNDS | E | Sg | E | 2008-10-22 13:39:27 | 0 | y | 156 | 52 | |||
| IIEES | KRBR | Z | Pn | E | 2008-10-22 13:39:42 | 0 | y | 421 | 25 | |||
| IIEES | KRBR | N | Sn | 2008-10-22 13:40:26 | 0 | y | 421 | 25 | ||||
| IIEES | NASN | Z | Pn | E | 2008-10-22 13:40:19 | -0.1 | y | 723 | 344 | |||
