Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2009-01-01 09:51:40.1 |
| Date & Time (Local) | 1387/10/12 13:21:40.1 |

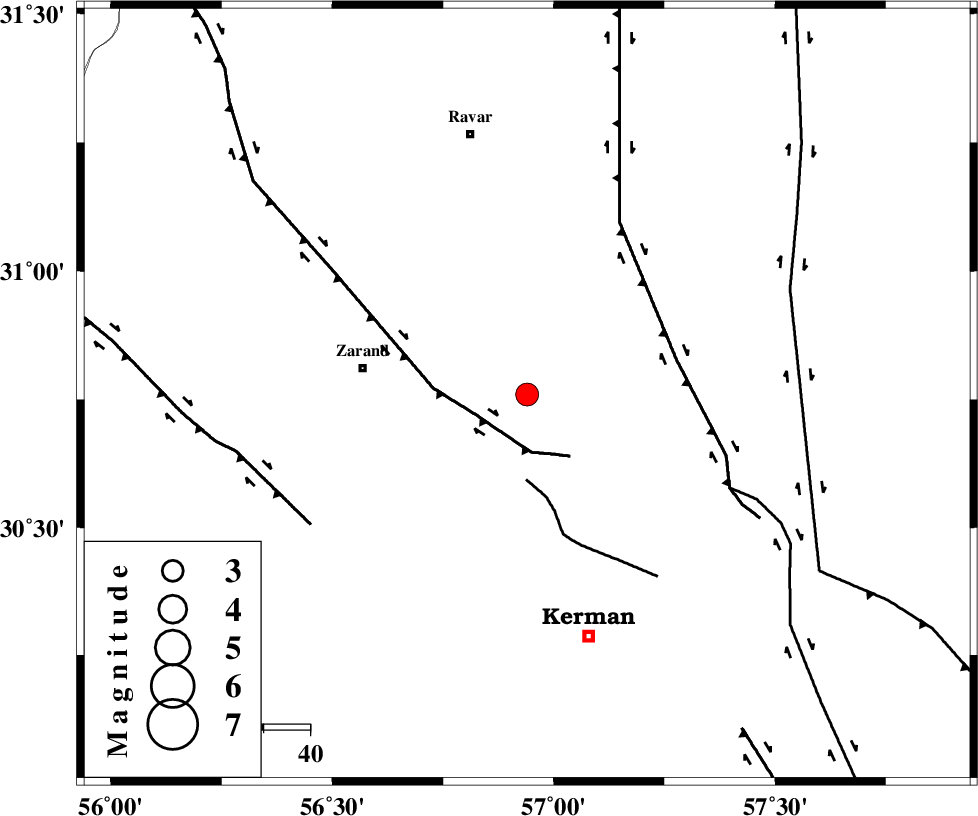

| Location | Lat:30.76 Lon: 56.94 |
| Region | 35 km East of Zarand, Kerman Province |
Nearest Cities |
|
| 4 km of Hejdak, Kerman Province | |
| 15 km North East of Khankuk, Kerman Province | |
| 18 km North of Chatrud, Kerman Province | |
| 18 km East of Hatkan, Kerman Province | |
| 21 km North of Hutak, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 13 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 18 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 33 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.9 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51601 | IIEES | KRBR | N | 1076.7 | 0.2 | 2009-01-01 09:52:09 | 2009-06-27 08:52:00 | n |
| 51602 | IIEES | KRBR | E | 1073 | 0.2 | 2009-01-01 09:52:13 | 2009-06-27 08:52:00 | n |
| 51603 | IIEES | TABS | N | 101.6 | 0.52 | 2009-01-01 09:53:24 | 2009-06-27 08:52:00 | n |
| 51604 | IIEES | TABS | E | 46.9 | 0.56 | 2009-01-01 09:53:30 | 2009-06-27 08:52:00 | n |
| 51605 | IIEES | BNDS | N | 34.7 | 0.72 | 2009-01-01 09:53:35 | 2009-06-27 08:52:00 | n |
| 51606 | IIEES | BNDS | E | 36.4 | 0.48 | 2009-01-01 09:53:42 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2009-01-01 09:51:55 | 0 | y | 88.1 | 191 | |||
| IIEES | KRBR | E | Sg | E | 2009-01-01 09:52:06 | -0.1 | y | 88.1 | 191 | |||
| IIEES | TABS | Z | Pn | E | 2009-01-01 09:52:27 | -0.1 | y | 321 | 3 | |||
| IIEES | BNDS | Z | Pn | E | 2009-01-01 09:52:35 | 0.1 | y | 380 | 192 | |||
| IIEES | SHRT | Z | Pn | E | 2009-01-01 09:52:43 | 0 | y | 450 | 44 | |||
| IIEES | NASN | Z | Pn | E | 2009-01-01 09:52:44 | 0 | y | 452 | 301 | |||
