Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2009-01-15 17:29:43.1 |
| Date & Time (Local) | 1387/10/26 20:59:43.1 |
| Location | Lat:31.24 Lon: 56.35 |
| Region | 44 km West of Ravar, Kerman Province |
Nearest Cities |
|
| 12 km North of Toghroljerd, Kerman Province | |
| 15 km South of Jor, Kerman Province | |
| 20 km South of Kuhbanan, Kerman Province | |
| 28 km North West of Dasht-e khak, Kerman Province | |
| 37 km North West of Ahmadi, Kerman Province | |
| Depth | 18 km |
| Agency | |

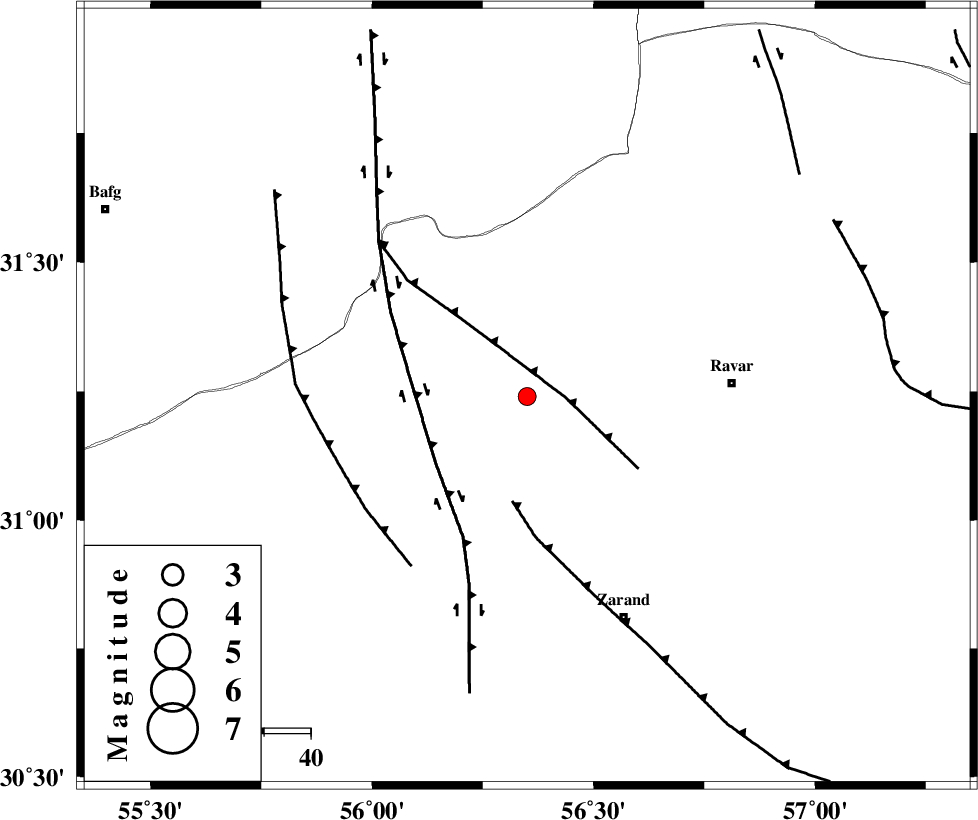

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 8 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 53 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 53 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 5.1 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51714 | IIEES | KRBR | E | 101 | 0.16 | 2009-01-15 17:30:28 | 2009-06-27 08:52:00 | n |
| 51715 | IIEES | KRBR | N | 149 | 0.24 | 2009-01-15 17:30:28 | 2009-06-27 08:52:00 | n |
| 51716 | IIEES | TABS | E | 9.2 | 0.45 | 2009-01-15 17:31:05 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2009-01-15 17:30:07 | -0.1 | y | 145 | 164 | |||
| IIEES | KRBR | N | Sg | E | 2009-01-15 17:30:25 | 0.1 | y | 145 | 164 | |||
| IIEES | TABS | Z | Pn | E | 2009-01-15 17:30:24 | -0.1 | y | 277 | 15 | |||
| IIEES | TABS | E | Sg | E | 2009-01-15 17:31:01 | 0.1 | y | 277 | 15 | |||
| IIEES | NASN | Z | Pn | E | 2009-01-15 17:30:37 | 0 | y | 377 | 298 | |||
