Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2009-02-05 15:45:16.7 |
| Date & Time (Local) | 1387/11/17 19:15:16.7 |
| Location | Lat:31.68 Lon: 56.37 |
| Region | 62 km North-West of Ravar, Kerman Province |
Nearest Cities |
|
| 14 km North East of Asfih, Yazd Province | |
| 28 km East of Benestan, Yazd Province | |
| 30 km North of Kuhbanan, Kerman Province | |
| 36 km North of Jor, Kerman Province | |
| 39 km South East of Behabad, Yazd Province | |
| Depth | 14 km |
| Agency | |

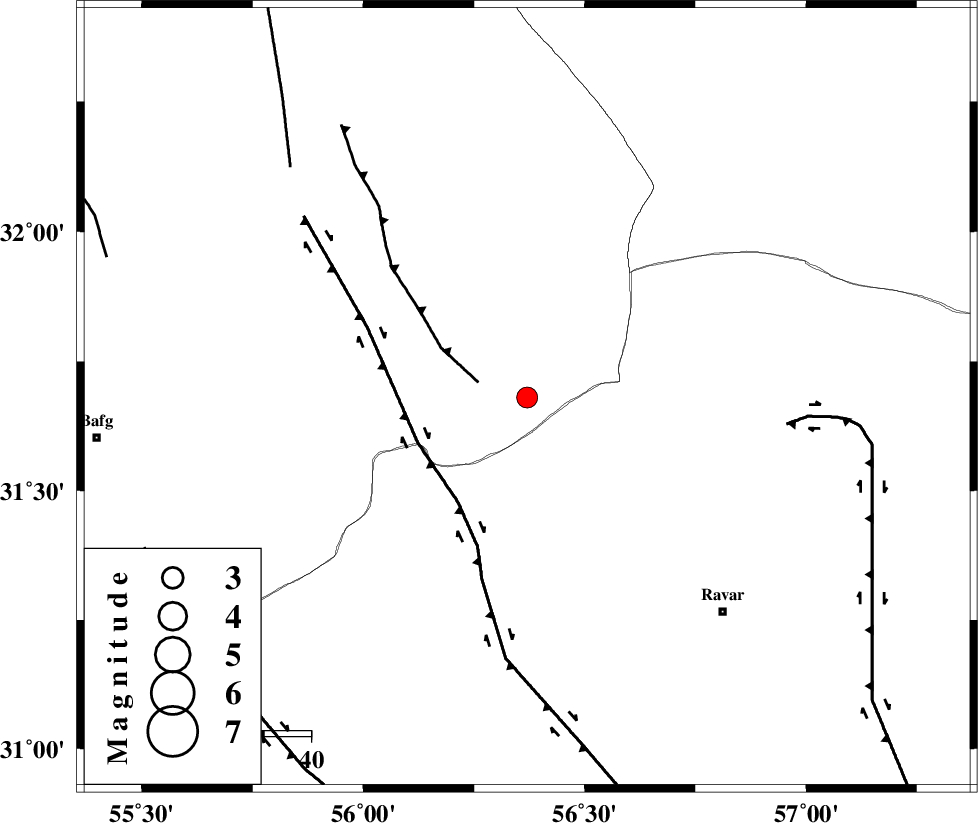

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 11 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 25 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 56 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 51833 | IIEES | KRBR | E | 244.7 | 0.28 | 2009-02-05 15:46:14 | 2009-06-27 08:52:00 | n |
| 51834 | IIEES | KRBR | N | 152 | 0.37 | 2009-02-05 15:46:16 | 2009-06-27 08:52:00 | n |
| 51835 | IIEES | TABS | N | 40.3 | 0.68 | 2009-02-05 15:46:35 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2009-02-05 15:45:48 | 0.2 | y | 191 | 169 | |||
| IIEES | KRBR | E | Sg | E | 2009-02-05 15:46:11 | -0.2 | y | 191 | 169 | |||
| IIEES | TABS | Z | Pg | E | 2009-02-05 15:45:54 | -0.1 | y | 230 | 18 | |||
| IIEES | NASN | Z | Pn | E | 2009-02-05 15:46:09 | 0.3 | y | 358 | 291 | |||
| IIEES | NASN | N | Sg | E | 2009-02-05 15:46:57 | -0.2 | y | 358 | 291 | |||
