Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2009-03-08 10:44:54.1 |
| Date & Time (Local) | 1387/12/18 14:14:54.1 |

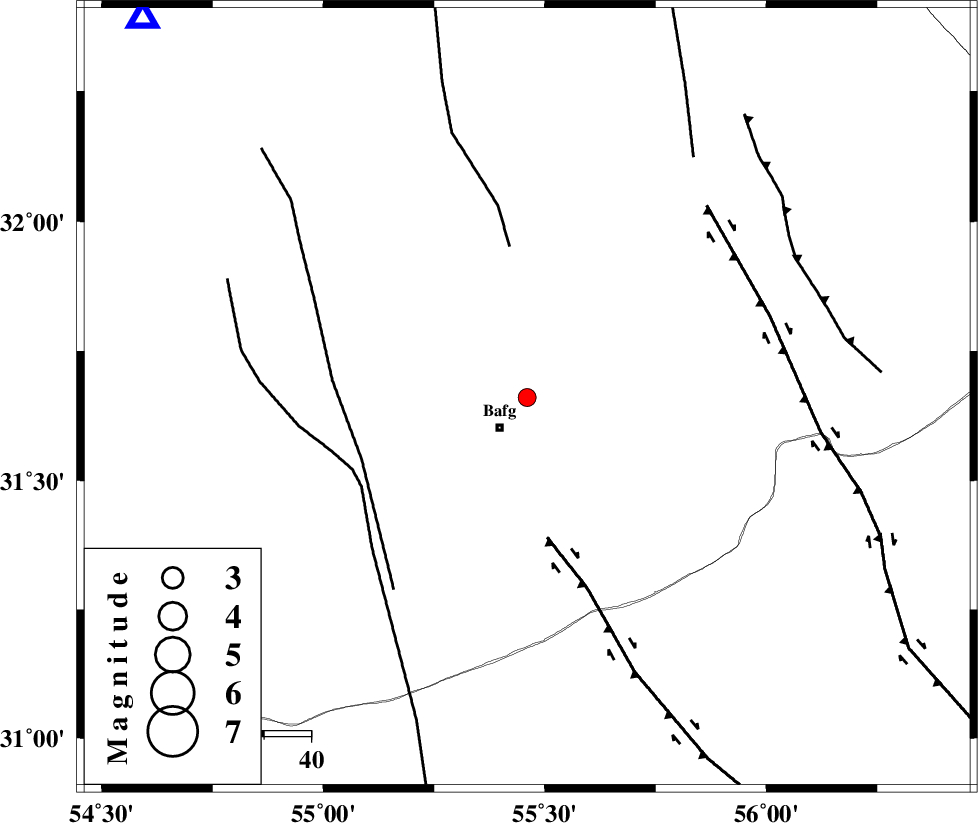

| Location | Lat:31.66 Lon: 55.46 |
| Region | 8 km Bafq, Yazd Province |
Nearest Cities |
|
| 5 km North of Mobarake, Yazd Province | |
| 9 km North of Bafq, Yazd Province | |
| 32 km West of Kushk, Yazd Province | |
| 54 km North West of Basab, Yazd Province | |
| 58 km South West of Behabad, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 30 km | |
| POSHT_E_BADAM_F (Length: 128 km) , Distance to epicenter: 33 km | |
| ANAR_F (Length: 91 km) , Distance to epicenter: 38 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >5.8 km |
| Error in Longitude | 4.8 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52143 | IIEES | KRBR | N | 74.5 | 0.66 | 2009-03-08 10:46:01 | 2009-06-27 08:52:00 | n |
| 52144 | IIEES | TABS | N | 18.6 | 0.58 | 2009-03-08 10:46:22 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2009-03-08 10:45:30 | -0.1 | y | 224 | 146 | |||
| IIEES | TABS | Z | Pn | E | 2009-03-08 10:45:35 | -0.1 | y | 270 | 35 | |||
| IIEES | NASN | Z | Pn | E | 2009-03-08 10:45:37 | 0.3 | y | 280 | 298 | |||
| IIEES | NASN | N | Sg | E | 2009-03-08 10:46:13 | -0.2 | y | 280 | 298 | |||
