Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2009-03-24 20:32:53.2 |
| Date & Time (Local) | 1388/1/5 01:02:53.2 |
| Location | Lat:31.95 Lon: 56.3 |
| Region | 90 km North-West of Ravar, Kerman Province |
Nearest Cities |
|
| 27 km North East of Behabad, Yazd Province | |
| 32 km North East of Benestan, Yazd Province | |
| 32 km North of Asfih, Yazd Province | |
| 54 km North East of Kushk, Yazd Province | |
| 59 km North of Kuhbanan, Kerman Province | |
| Depth | 8 km |
| Agency | |

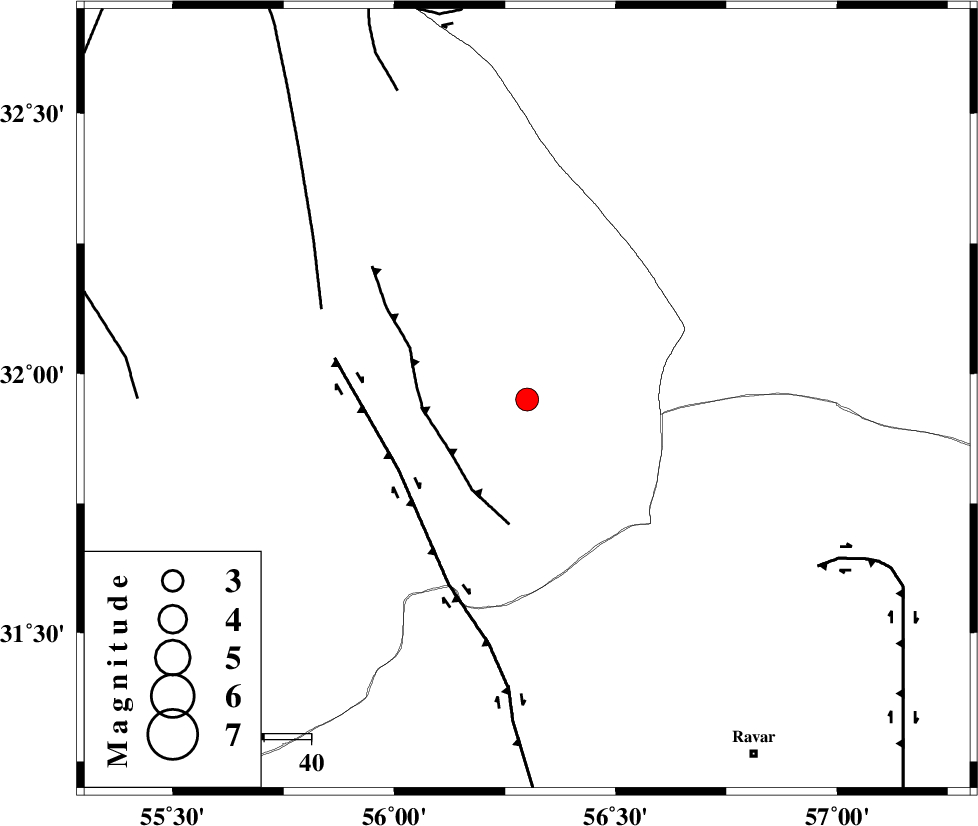

Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 20 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 31 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 48 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 2.7 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 52270 | IIEES | TABS | N | 133.3 | 0.91 | 2009-03-24 20:33:57 | 2009-06-27 08:52:00 | n |
| 52271 | IIEES | KRBR | E | 346.4 | 0.63 | 2009-03-24 20:34:04 | 2009-06-27 08:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2009-03-24 20:33:28 | 0.2 | y | 203 | 22 | |||
| IIEES | TABS | E | Sg | E | 2009-03-24 20:33:53 | -0.1 | y | 203 | 22 | |||
| IIEES | KRBR | Z | Pg | E | 2009-03-24 20:33:31 | -0.2 | y | 223 | 168 | |||
| IIEES | KRBR | N | Sg | E | 2009-03-24 20:33:59 | 0.1 | y | 223 | 168 | |||
| IIEES | NASN | Z | Pn | E | 2009-03-24 20:33:44 | 0 | y | 341 | 287 | |||
